Product Specifications
| Manufacturer Part Number | 02718623 |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.969" |
| Contact Surface Diameter Machine Side (mm) | 50.00mm |
| Minimum Initial Plunge Diameter (Decimal Inch) | 3.543" |
| Minimum Initial Plunge Diameter (mm) | 90.00mm |
| Maximum Initial Plunge Diameter (Decimal Inch) | 5.118" |
| Maximum Initial Plunge Diameter (mm) | 130.00mm |
| Functional Length (Decimal Inch) | 3.937" |
| Functional Length (mm) | 100.00mm |
| Cutting Width (Decimal Inch) | 0.236" |
| Cutting Width (mm) | 6.00mm |
| Maximum Cutting Depth (Decimal Inch) | 1.417" |
| Maximum Cutting Depth (mm) | 36.00mm |
| Workpiece Side Body Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Cutting Direction | Left Hand |
| Coolant Pressure | Bar |
| Coolant Supply Property | 1 |
| Shank Type | Seco-Capto axial |

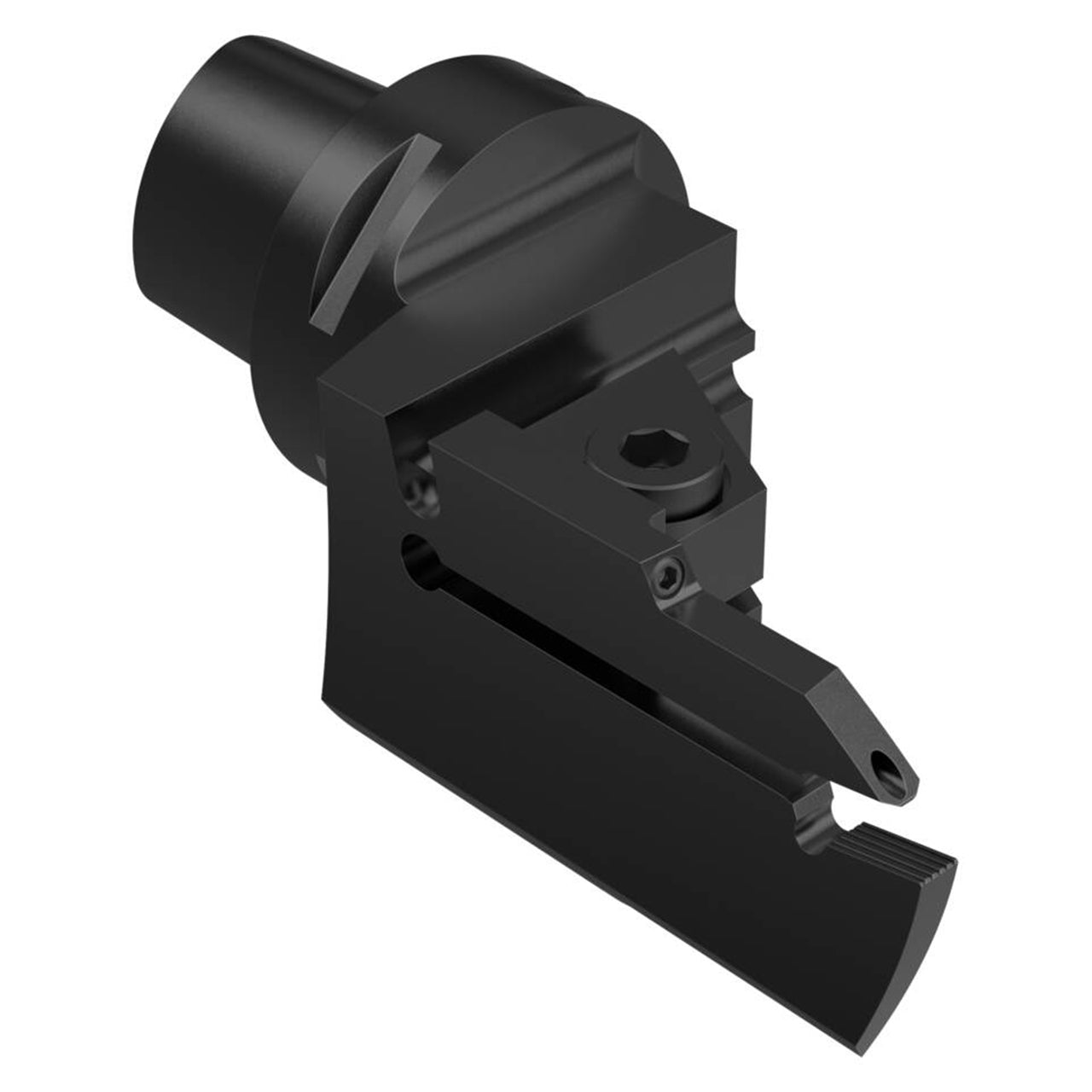

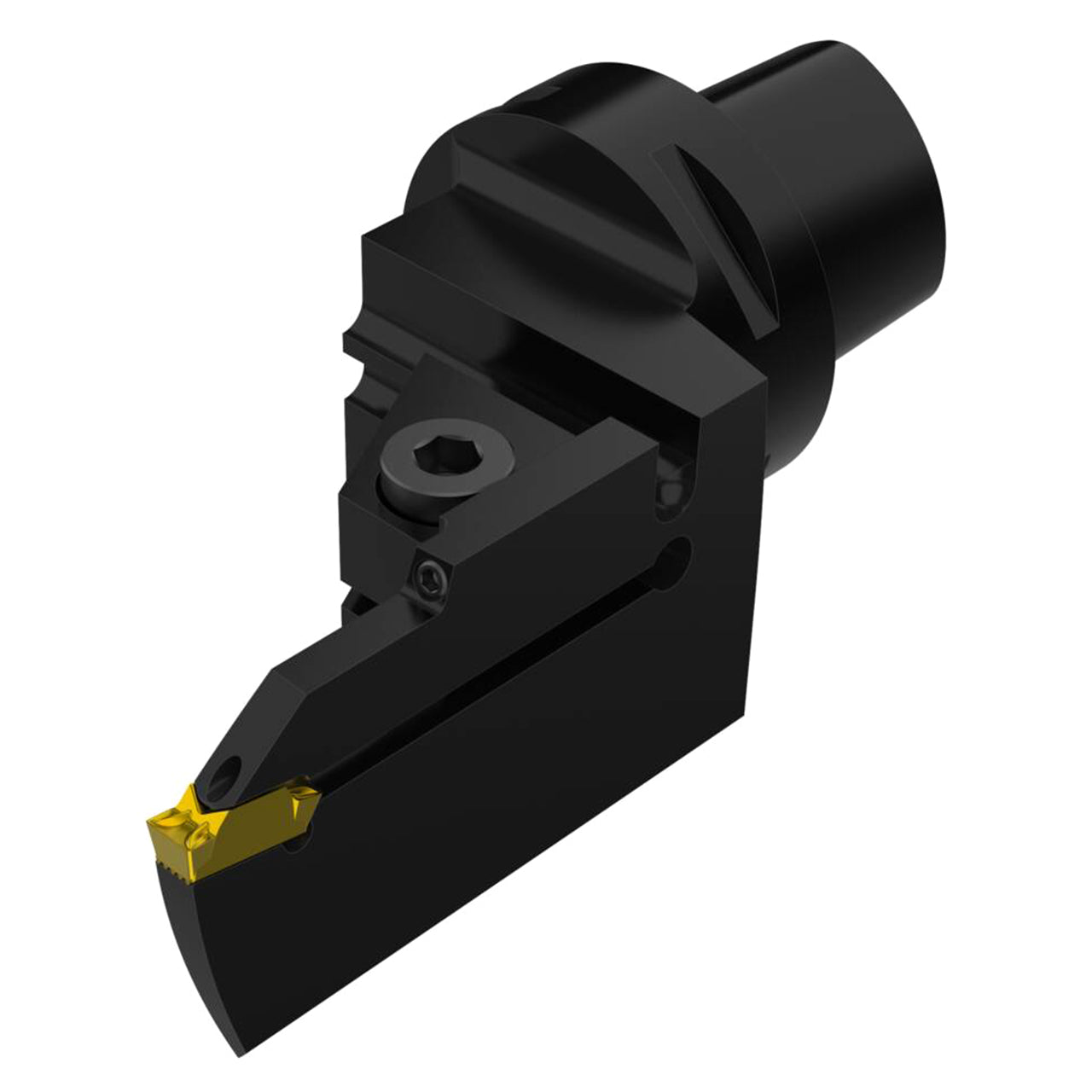

| Product Type | Modular Grooving Head |
