Product Specifications
| Manufacturer Part Number | 02718421 |
| Body Diameter (Decimal Inch) | 1.181" |
| Body Diameter (mm) | 30.00mm |
| Cutting Width (Decimal Inch) | 0.158" |
| Cutting Width (mm) | 4.00mm |
| Minimum Cutting Diameter Internal (Decimal Inch) | 1.260" |
| Minimum Cutting Diameter Internal (mm) | 32.00mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.575" |
| Contact Surface Diameter Machine Side (mm) | 40.00mm |
| Insert Clamping System | C |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Functional Length (Decimal Inch) | 3.543" |
| Functional Length (mm) | 90.00mm |
| Head Length (Decimal Inch) | 2.677" |
| Head Length (mm) | 68.00mm |
| Usable Length (Decimal Inch) | 1.980" |
| Usable Length (mm) | 50.30mm |
| Shank Type | Seco-Capto |
| Torque (Nm) | 5Nm |
| Functional Width (Decimal Inch) | 0.945" |
| Functional Width (mm) | 24.00mm |

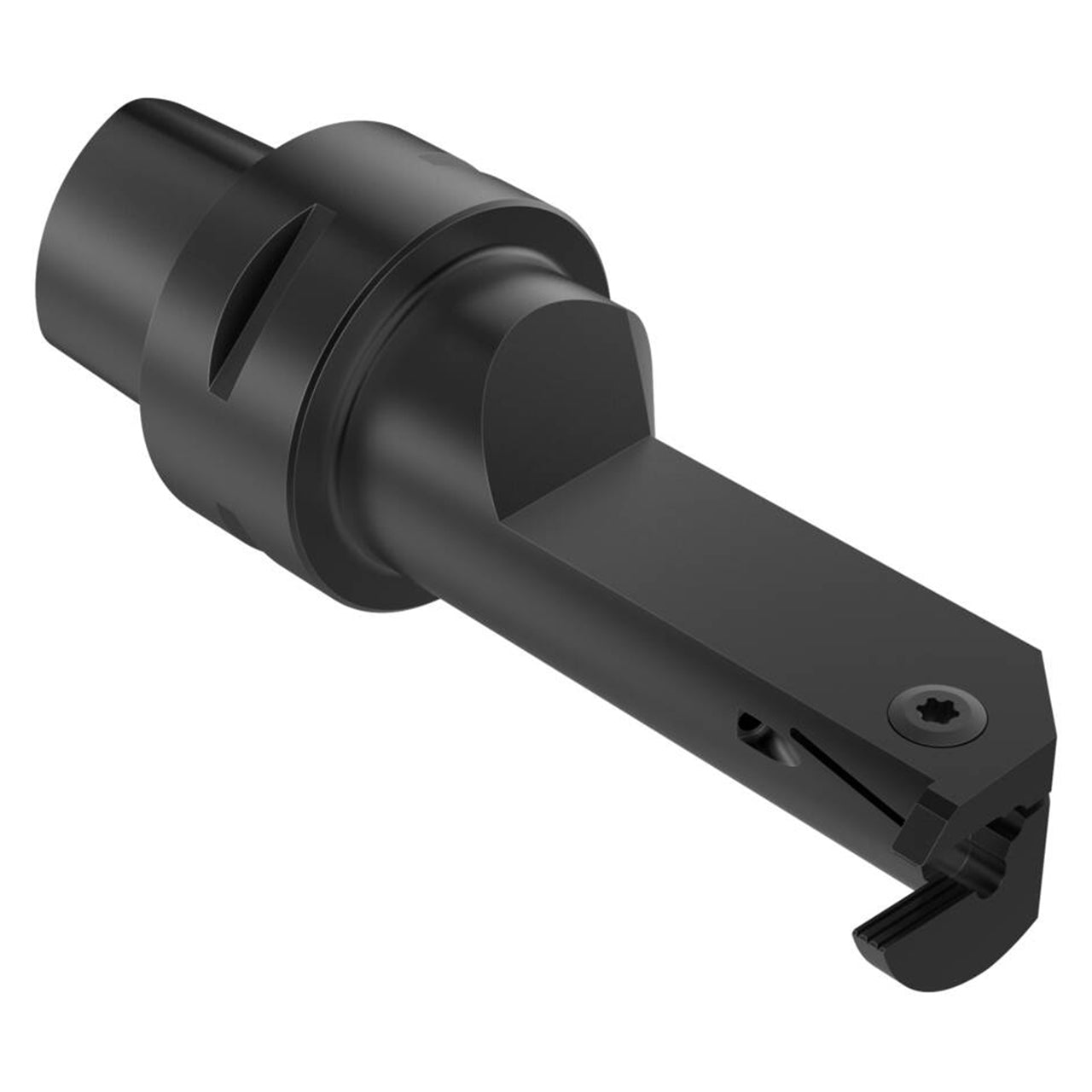

| Product Type | Modular Turning Head |
