Product Specifications

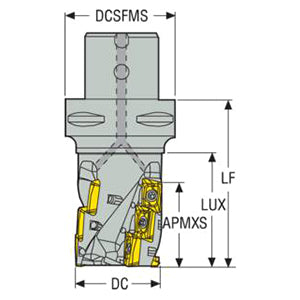

| Manufacturer Part Number | 02717849 |
| Cutting Diameter (mm) | 40.00mm |
| Contact Surface Diameter Machine Side (mm) | 50.00mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 77.50mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 61.60mm |
| Functional Length (mm) | 82.00mm |
| Overall Length (mm) | 112.00mm |
| Maximum Depth of Cut (mm) | 47.00mm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Flute Helix Hand | Right Hand |
| Rake Radial Angle (Degree) | -8.5 Degree |
| Rake Radial Angle (Degree) | -8.5 Degree |
| Rake Orthogonal Angle (Degree) | -8.5 Degree |
| Axial Rake Angle (Degree) | 5 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Number of Flute | 2 |
| Maximum Ramping Angle (Degree) | 4.5 Degree |
| Maximum Rotational Speed (rpm) | 9900 rpm |
| Insert Shape Code | X |
| Shank Type | Seco-Capto |
| Product Type | Indexable Square Shoulder Mill |
