Product Specifications
| Manufacturer Part Number | 02717401 |
| Minimum Cutting Diameter Internal (Decimal Inch) | 1.260" |
| Minimum Cutting Diameter Internal (mm) | 32.00mm |
| Connection Diameter Machine Side (Decimal Inch) | 1.250" |
| Connection Diameter Machine Side (mm) | 31.75mm |
| Shank Diameter (Decimal Inch) | 1.250" |
| Shank Diameter (mm) | 31.75mm |
| Functional Length (Decimal Inch) | 12.000" |
| Functional Length (mm) | 304.80mm |
| Head Length (Decimal Inch) | 2.362" |
| Head Length (mm) | 60.00mm |
| Usable Length (Decimal Inch) | 1.969" |
| Usable Length (mm) | 50.00mm |
| Shank Width (Decimal Inch) | 1.211" |
| Shank Width (mm) | 30.75mm |
| Maximum Cutting Depth (Decimal Inch) | 0.354" |
| Maximum Cutting Depth (mm) | 9.00mm |
| Cutting Width (Decimal Inch) | 0.118" |
| Cutting Width (mm) | 3.00mm |
| Height of Tool Holder Shank (Decimal Inch) | 1.171" |
| Height of Tool Holder Shank (mm) | 29.75mm |
| Functional Width (Decimal Inch) | 0.929" |
| Functional Width (mm) | 23.60mm |
| Coolant Supply Property | 1 |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Shank Type | Cylindrical |

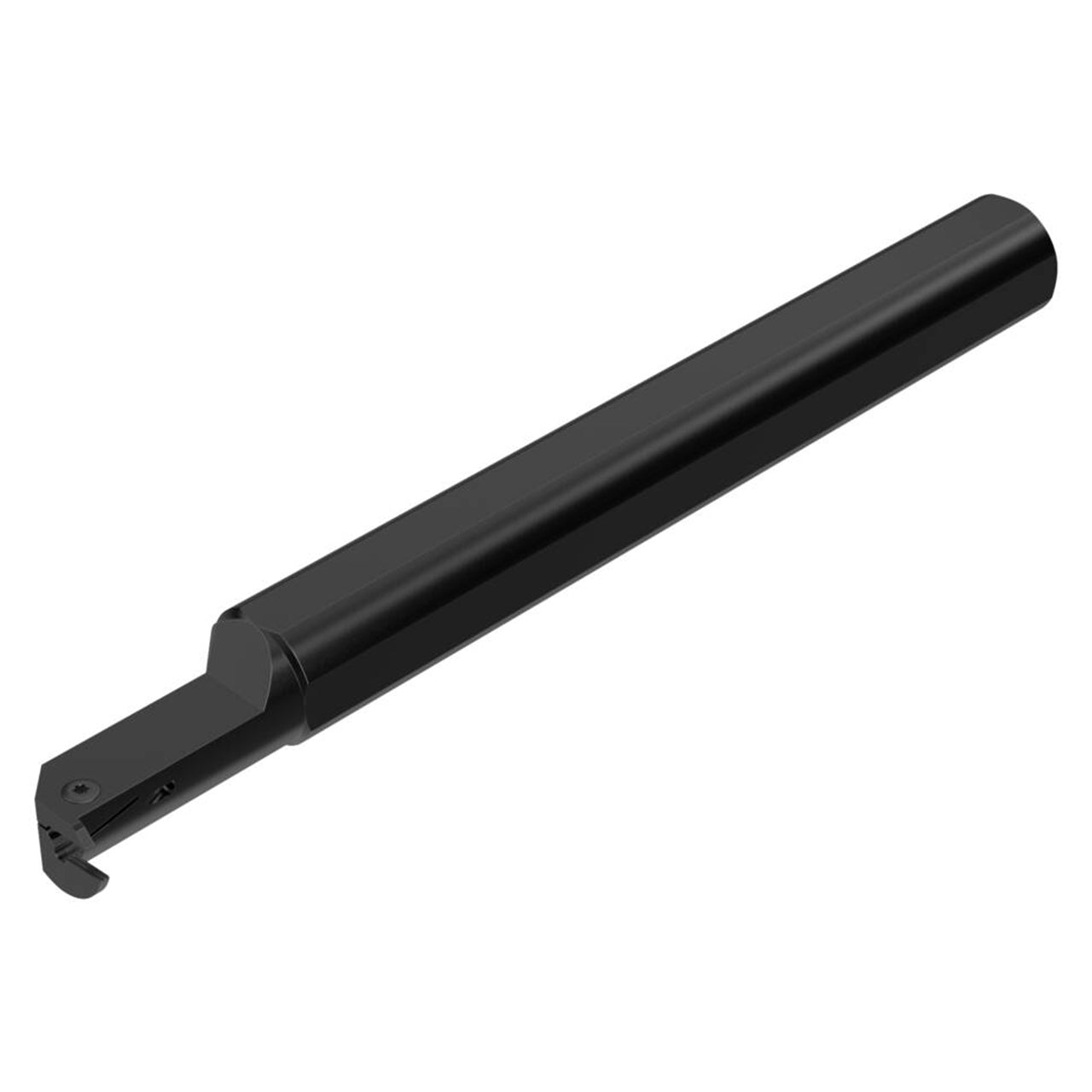

| Product Type | Indexable Grooving Toolholder |
