Product Specifications
| Manufacturer Part Number | 02713459 |
| Cutting Diameter (mm) | 200.00mm |
| Connection Bore Diameter (mm) | 40.00mm |
| Diameter Bolt Circle 1 (mm) | 66.70mm |
| Contact Surface Diameter Machine Side (mm) | 90.00mm |
| Functional Length (mm) | 40.00mm |
| Keyway Width (mm) | 16.40mm |
| Maximum Depth of Cut (mm) | 6.00mm |
| Depth of Key Way (mm) | 9.00mm |
| Maximum Cutting Depth (mm) | 53.50mm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Rake Radial Angle (Degree) | -8 Degree |
| Cutting Direction | Right Hand |
| Maximum Rotational Speed (rpm) | 6700 rpm |
| Cutting Pitch Density | Normal |
| Pocket Seat Code of The Cutter | LNK.0605 / LNK.0805 |
| Cutting Item Material Type | Steel |
| Shank Type | Arbor |

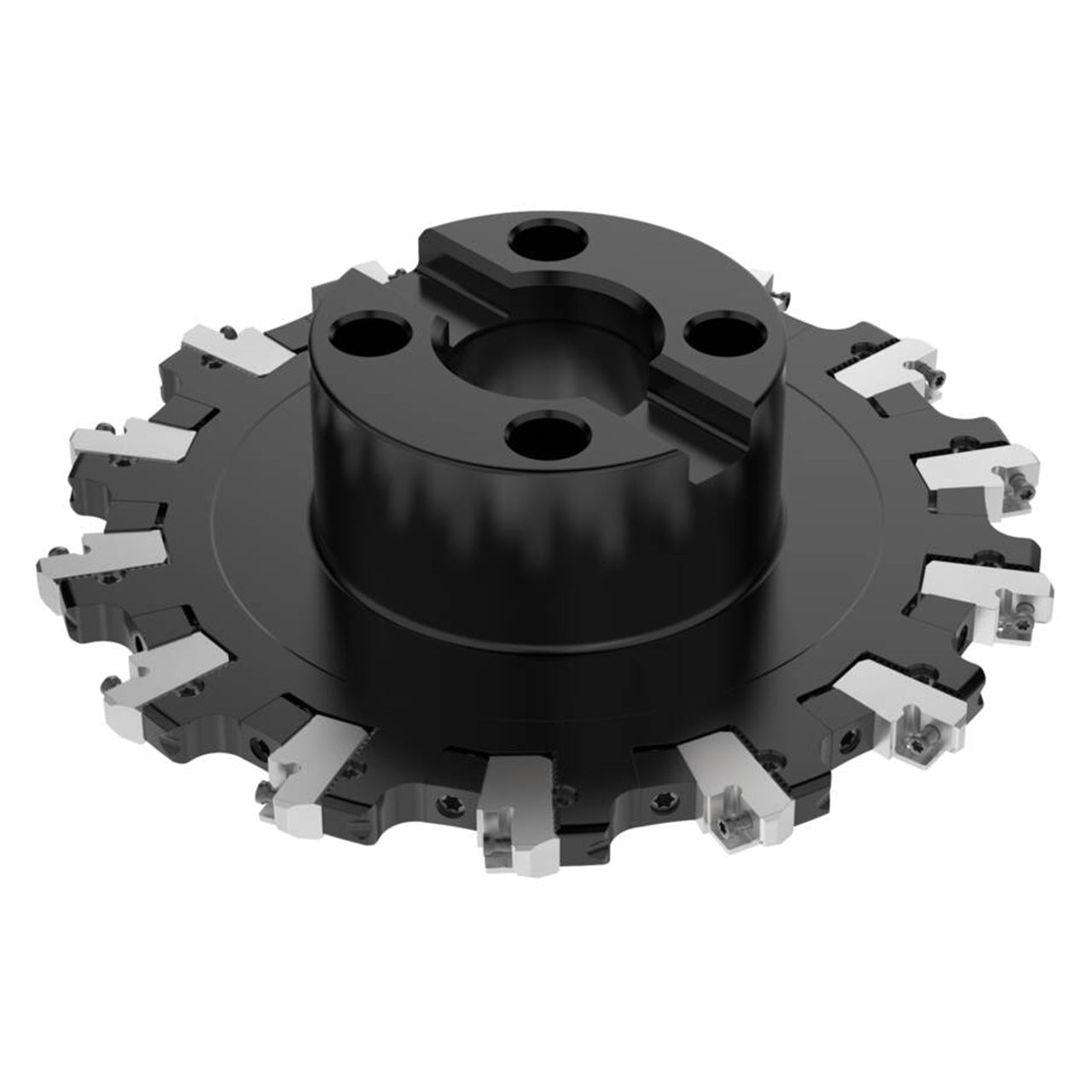

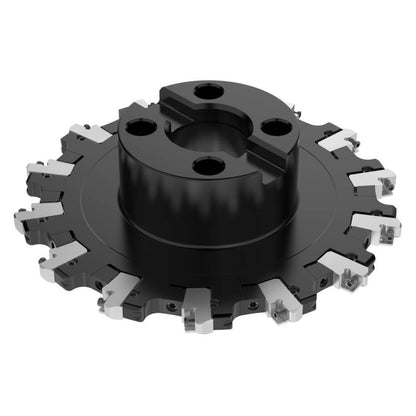

| Product Type | Indexable Slotting Cutter |
