Product Specifications
| Manufacturer Part Number | 02711647 |
| Cutting Diameter (Decimal Inch) | 0.750" |
| Cutting Diameter (mm) | 19.05mm |
| Cutting Diameter 1 (Decimal Inch) | 0.750" |
| Cutting Diameter 1 (mm) | 19.05mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.750" |
| Connection Diameter Machine Side (mm) | 19.05mm |
| Shank Diameter (Decimal Inch) | 0.750" |
| Shank Diameter (mm) | 19.05mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 1.437" |
| Maximum Helical Interpolation Hole Diameter (mm) | 36.50mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 0.975" |
| Minimum Helical Interpolation Hole Diameter (mm) | 24.77mm |
| Overall Length (Decimal Inch) | 4.000" |
| Overall Length (mm) | 101.60mm |
| Cutting Edge Effective Length (Decimal Inch) | 1.500" |
| Cutting Edge Effective Length (mm) | 38.10mm |
| Maximum Depth of Cut (Decimal Inch) | 1.500" |
| Maximum Depth of Cut (mm) | 38.10mm |
| Corner Radius (Decimal Inch) | 0.030" |
| Corner Radius (mm) | 0.76mm |
| Shank Type | Cylindrical |
| Center Cutting Capability | Yes |
| Cutting Edge Count | 4 |
| Cutting Geometry Type | JS554 |
| Cutting Geometry Type Technical | JS554 |
| Face Cutting Edge Count | 4 |
| Flute Helix Angle (Degree) | 48 Degree |
| Flute Helix Direction | Right |
| Rake Radial Angle (Degree) | 8 Degree |
| Axial Rake Angle (Degree) | 48 Degree |
| Cutting Direction | Right Hand |
| Internal Coolant Channel | No |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Number of Flute | 4 |
| Material | Carbide |
| Coating | SIRON-A |

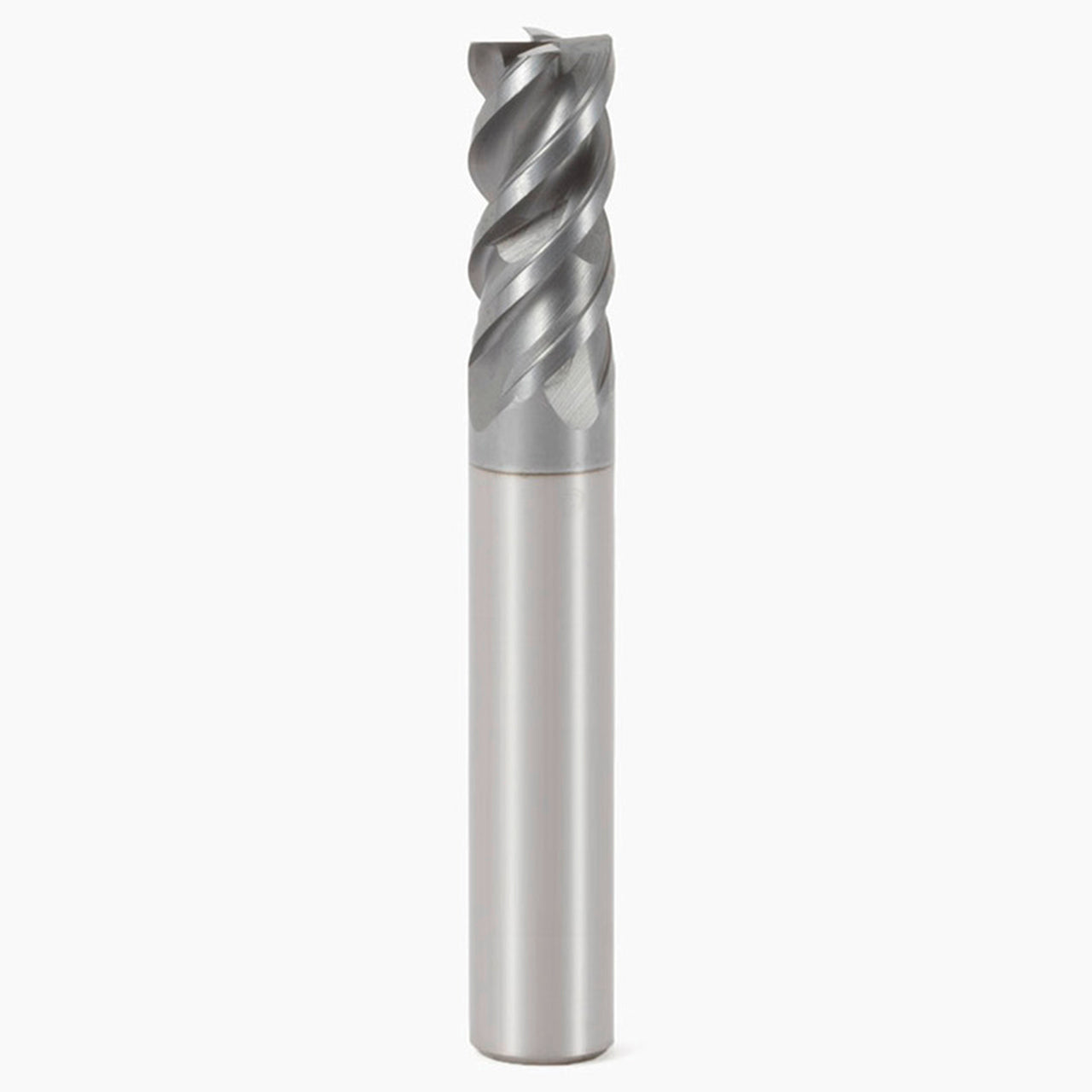

| Product Type | Corner Radius End Mill |
