Product Specifications
| Manufacturer Part Number | 02703445 |
| Minimum Initial Plunge Diameter (Decimal Inch) | 4.331" |
| Minimum Initial Plunge Diameter (mm) | 110.00mm |
| Maximum Initial Plunge Diameter (Decimal Inch) | 6.693" |
| Maximum Initial Plunge Diameter (mm) | 170.00mm |
| Functional Length (Decimal Inch) | 7.000" |
| Functional Length (mm) | 177.80mm |
| Head Length (Decimal Inch) | 3.268" |
| Head Length (mm) | 83.00mm |
| Height of Tool Holder Shank (Decimal Inch) | 1.250" |
| Height of Tool Holder Shank (mm) | 31.75mm |
| Shank Width (Decimal Inch) | 1.250" |
| Shank Width (mm) | 31.75mm |
| Cutting Width (Decimal Inch) | 0.315" |
| Cutting Width (mm) | 8.00mm |
| Maximum Cutting Depth (Decimal Inch) | 1.890" |
| Maximum Cutting Depth (mm) | 48.00mm |
| Workpiece Side Body Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Cutting Direction | Right Hand |
| Coolant Pressure | Bar |
| Coolant Supply Property | 1 |
| Shank Type | Square shank axial |

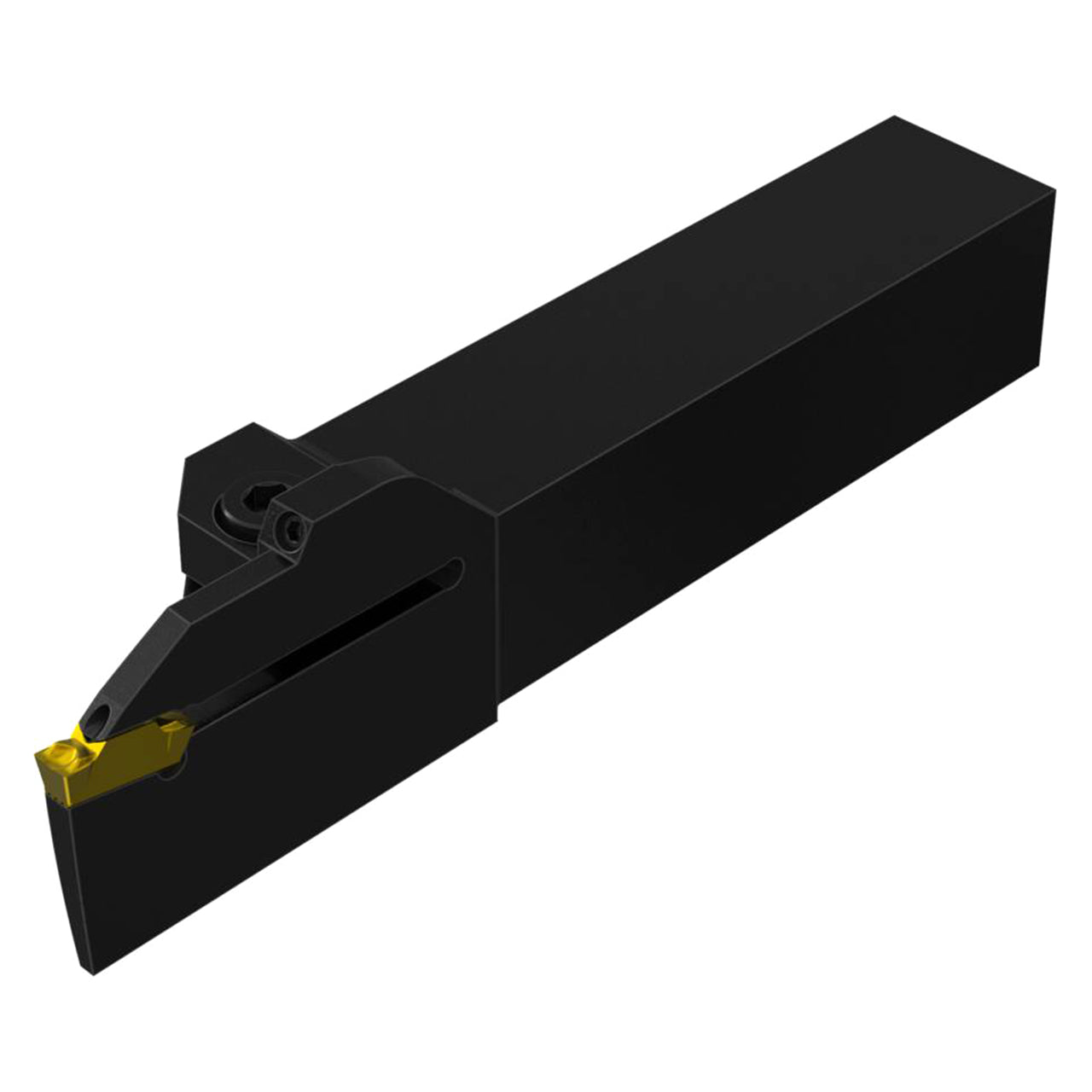

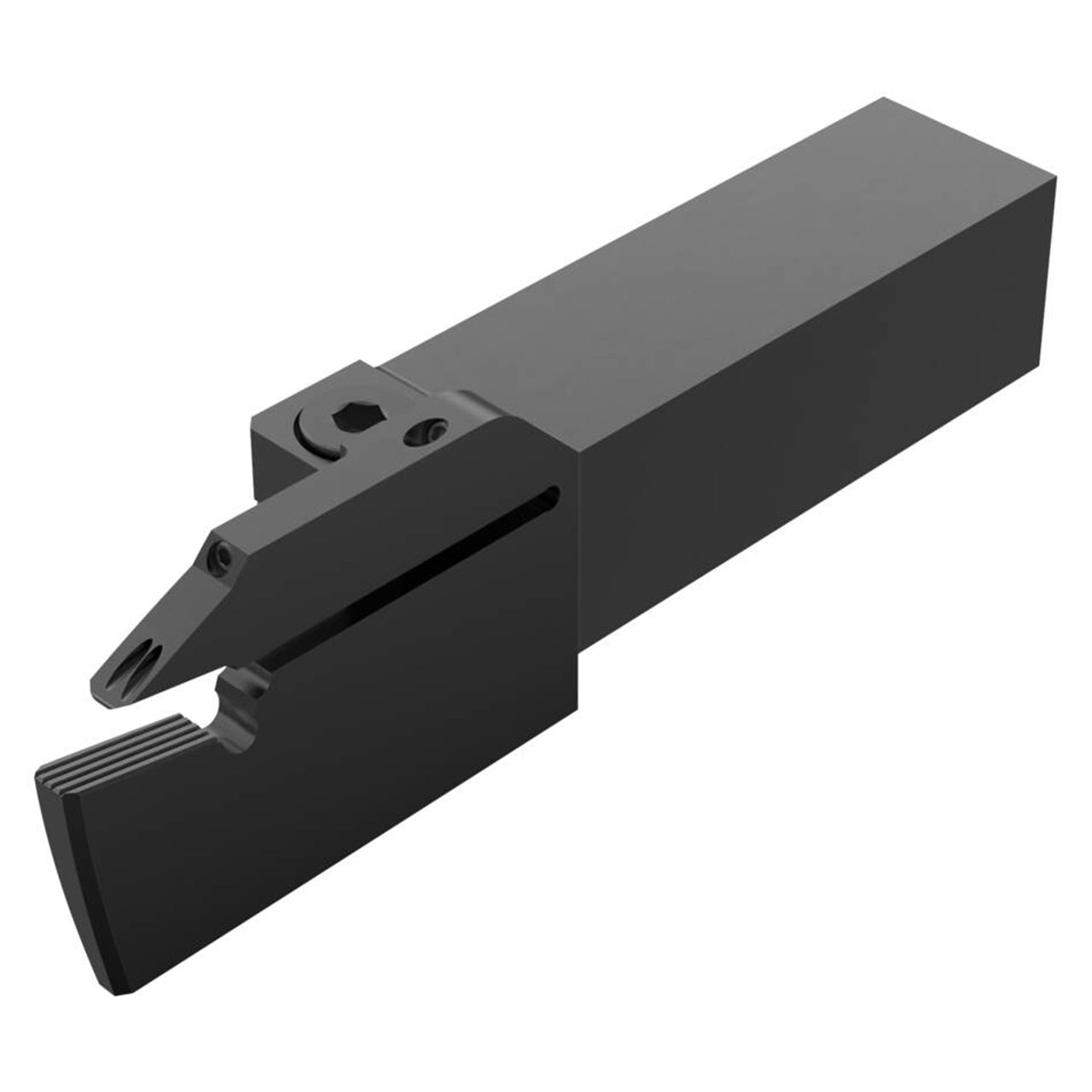

| Product Type | Indexable Grooving Toolholder |
