Product Specifications
| Manufacturer Part Number | 02688996 |
| Cutting Diameter (Decimal Inch) | 1.500" |
| Cutting Diameter (mm) | 38.10mm |
| Connection Diameter Machine Side (Decimal Inch) | 1.250" |
| Connection Diameter Machine Side (mm) | 31.75mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.969" |
| Contact Surface Diameter Machine Side (mm) | 50.00mm |
| Shank Diameter (Decimal Inch) | 1.250" |
| Shank Diameter (mm) | 31.75mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 2.913" |
| Maximum Helical Interpolation Hole Diameter (mm) | 74.00mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 2.500" |
| Minimum Helical Interpolation Hole Diameter (mm) | 63.50mm |
| Protruding Length (Decimal Inch) | 2.339" |
| Protruding Length (mm) | 59.40mm |
| Shank Length (Decimal Inch) | 2.441" |
| Shank Length (mm) | 62.00mm |
| Overall Length (Decimal Inch) | 4.780" |
| Overall Length (mm) | 121.40mm |
| Maximum Depth of Cut (mm) | 11.00mm |
| Maximum Depth of Cut (Decimal Inch) | 0.433" |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Differential | 1 |
| Cutting Pitch Density | Close |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -6.6 Degree |
| Rake Radial Angle (Degree) | -6.6 Degree |
| Rake Orthogonal Angle (Degree) | -6.6 Degree |
| Axial Rake Angle (Degree) | 8 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Maximum Ramping Angle (Degree) | 2.5 Degree |
| Maximum Rotational Speed (rpm) | 16400 rpm |
| Shank Type | SecoWeldon |

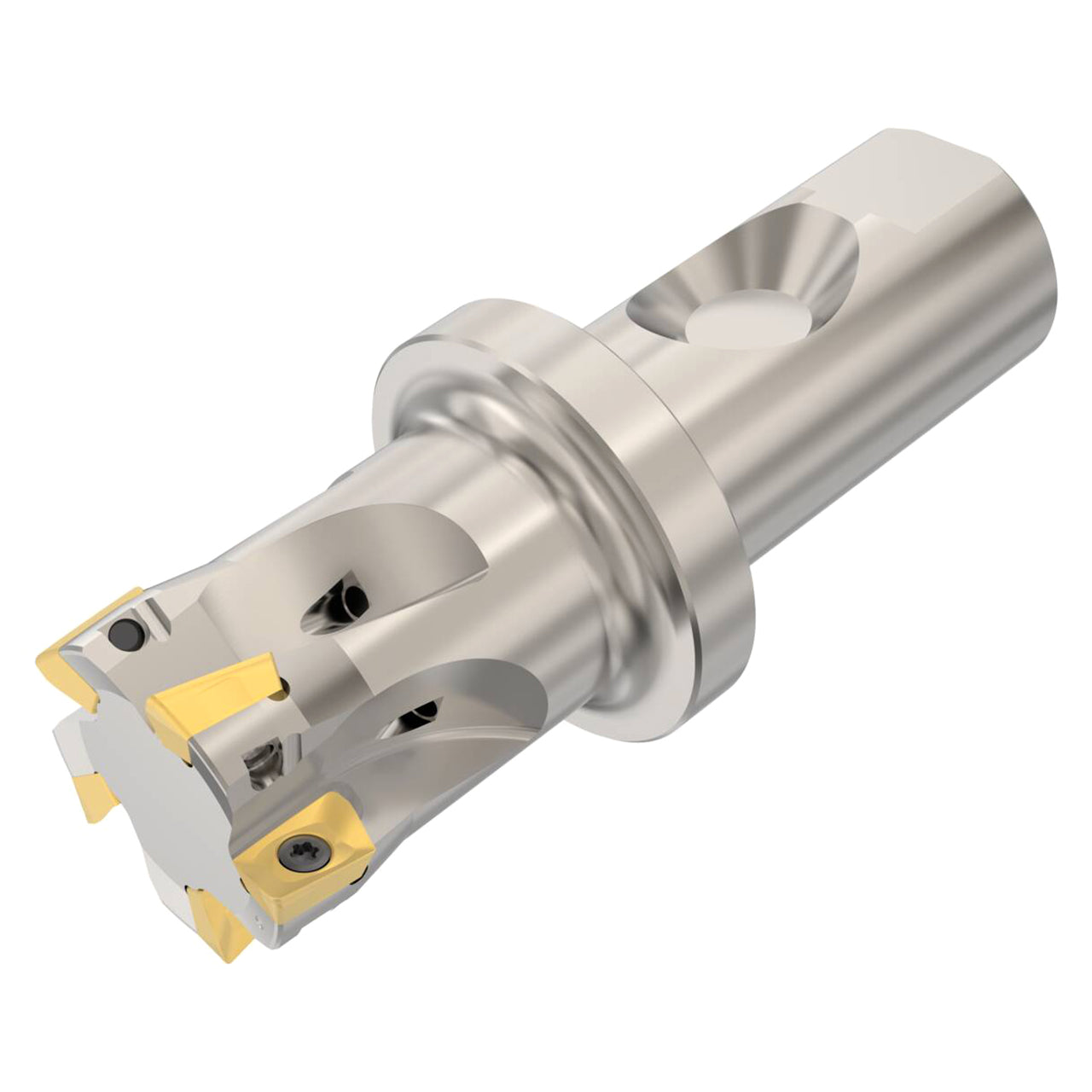

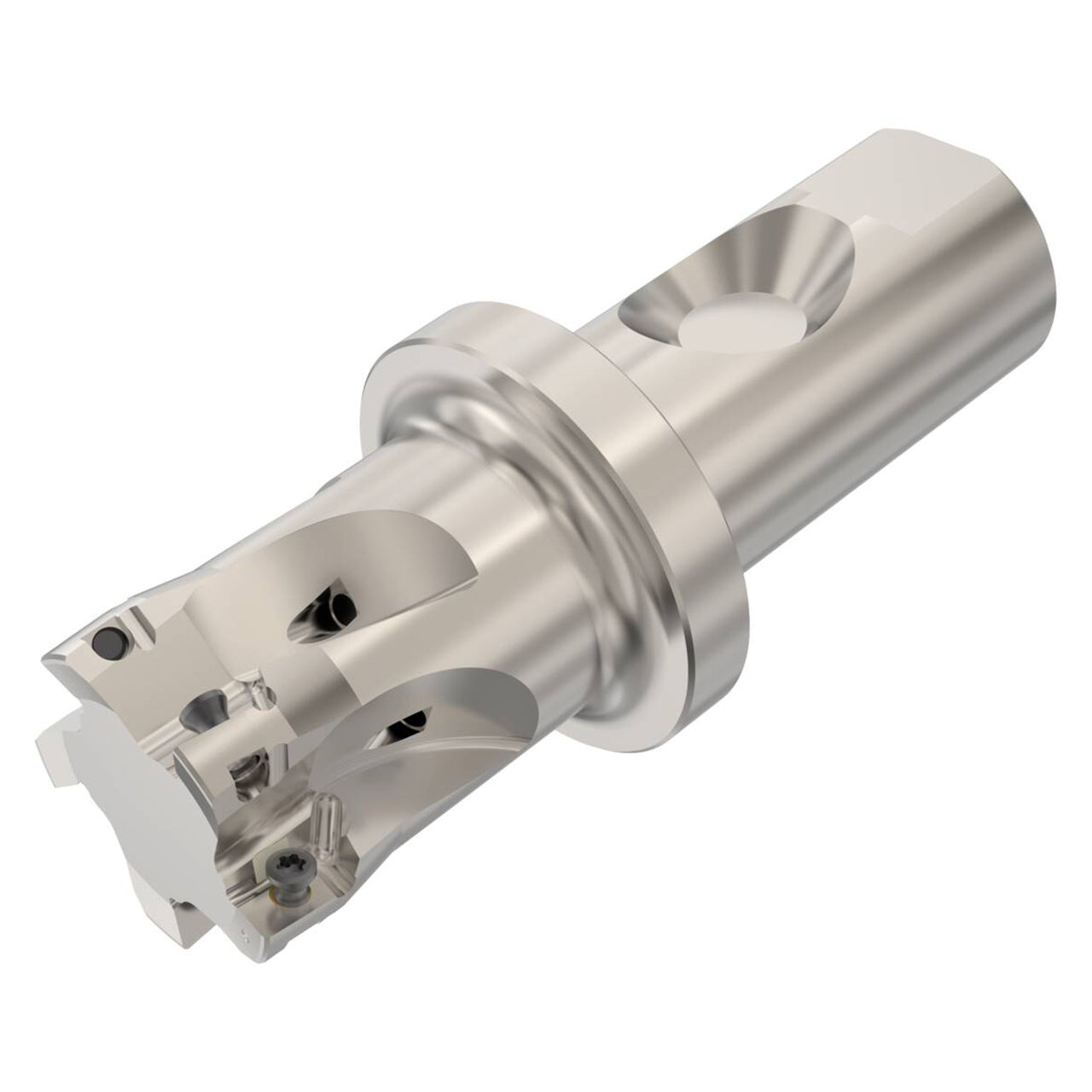

| Product Type | Indexable Square-Shoulder End Mill |
