Product Specifications
| Manufacturer Part Number | 02687569 |
| Fixing Hole Diameter (Decimal Inch) | 0.095" |
| Fixing Hole Diameter (mm) | 2.40mm |
| Inscribed Circle Diameter (Decimal Inch) | 0.215" |
| Inscribed Circle Diameter (mm) | 5.46mm |

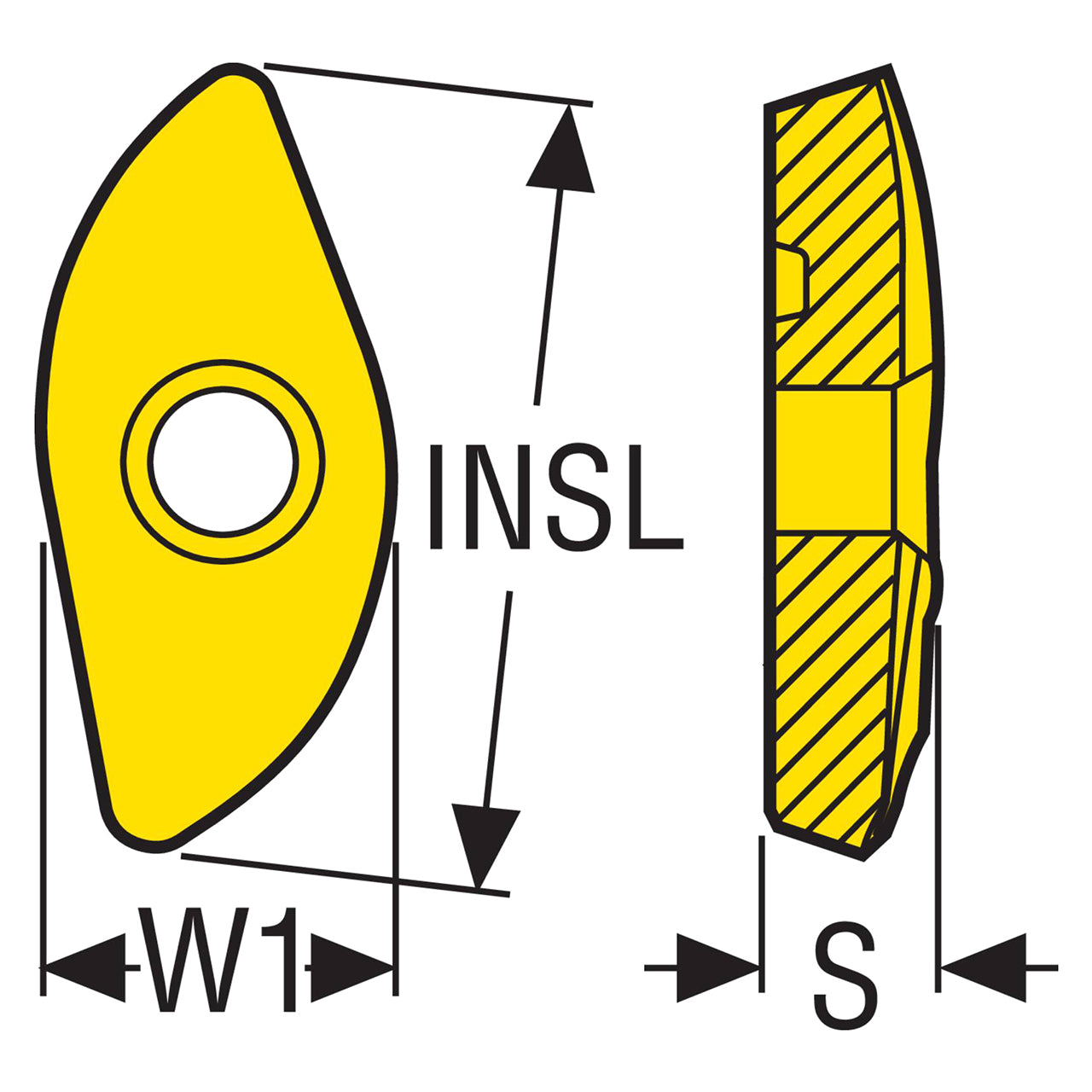

| Insert Length (Decimal Inch) | 0.489" |
| Insert Length (mm) | 12.42mm |
| Corner Radius (Decimal Inch) | 0.250" |
| Corner Radius (mm) | 6.35mm |
| Insert Thickness (Decimal Inch) | 0.099" |
| Insert Thickness (mm) | 2.52mm |
| Cutting Edge Count | 2 |
| Clearance Angle Major (Degree) | 11 Degree |
| Insert Rake Angle (Degree) | 11 Degree |
| Insert Hand | Right Hand |
| Cutting Geometry Type | ME |
| Cutting Geometry Type Technical | ME03 |
| Pocket Seat Code of The Cutter | 218.20-0.250 |
| Insert Size And Shape | 218.20-0.250 |
| Insert Shape Code | 218.20 |
| Material | Carbide |

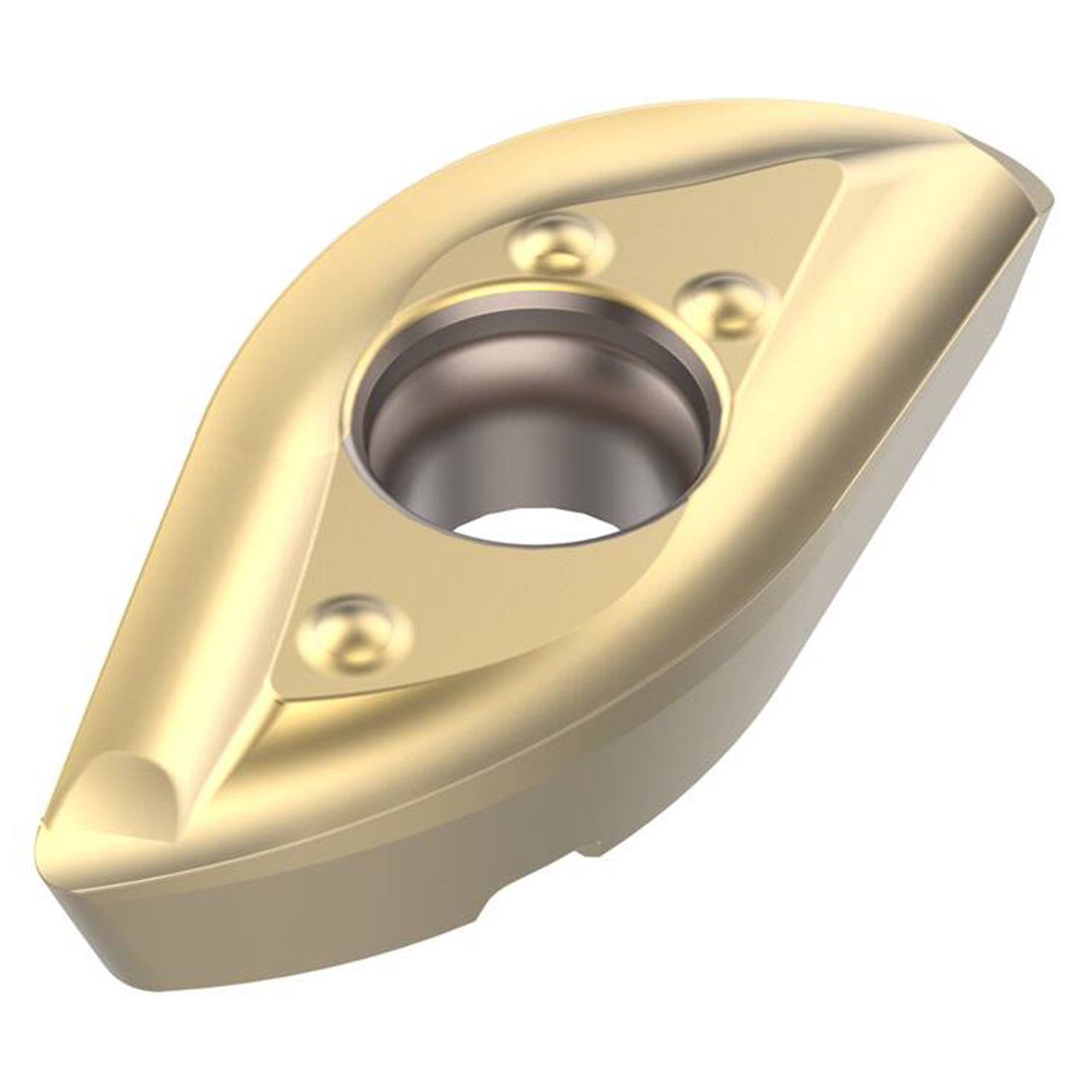

| Product Type | Milling Insert |
