Product Specifications
| Manufacturer Part Number | 02687516 |

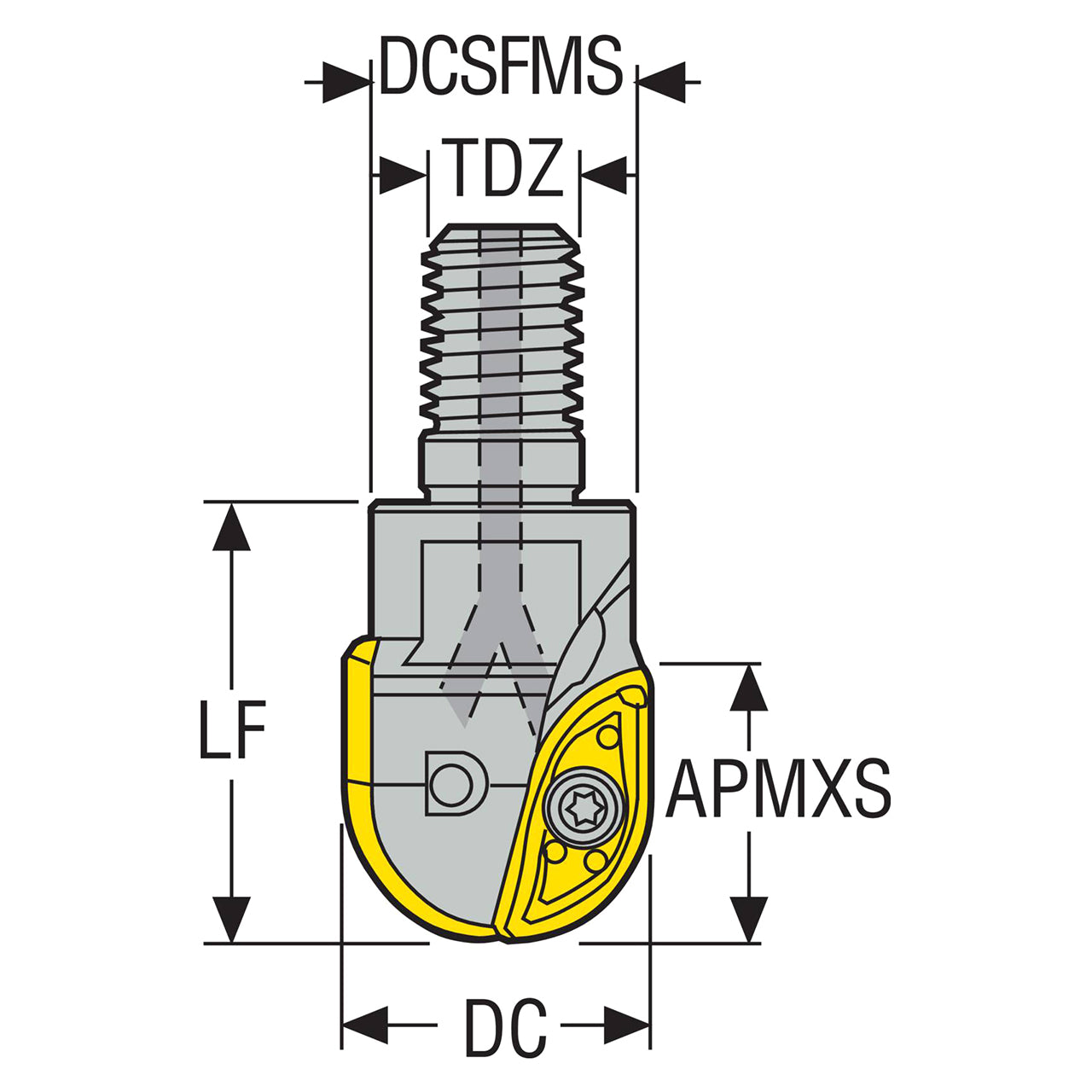

| Cutting Diameter (Decimal Inch) | 0.500" |
| Cutting Diameter (mm) | 12.70mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 0.532" |
| Contact Surface Diameter Machine Side (mm) | 13.50mm |
| Thread Diameter Size | M8 |
| Functional Length (Decimal Inch) | 0.906" |
| Functional Length (mm) | 23.00mm |
| Overall Length (Decimal Inch) | 1.604" |
| Overall Length (mm) | 40.75mm |
| Maximum Depth of Cut (mm) | 11.00mm |
| Maximum Depth of Cut (Decimal Inch) | 0.433" |
| Connection Mounting Torque (Nm) | 25.0 Nm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Number of Flute | 2 |
| Maximum Ramping Angle (Degree) | 45 Degree |
| Maximum Rotational Speed (rpm) | 28500 rpm |
| Sphere Angle (Degree) | 180 Degree |
| Insert Shape Code | 218.20 |
| Shank Type | Combimaster |

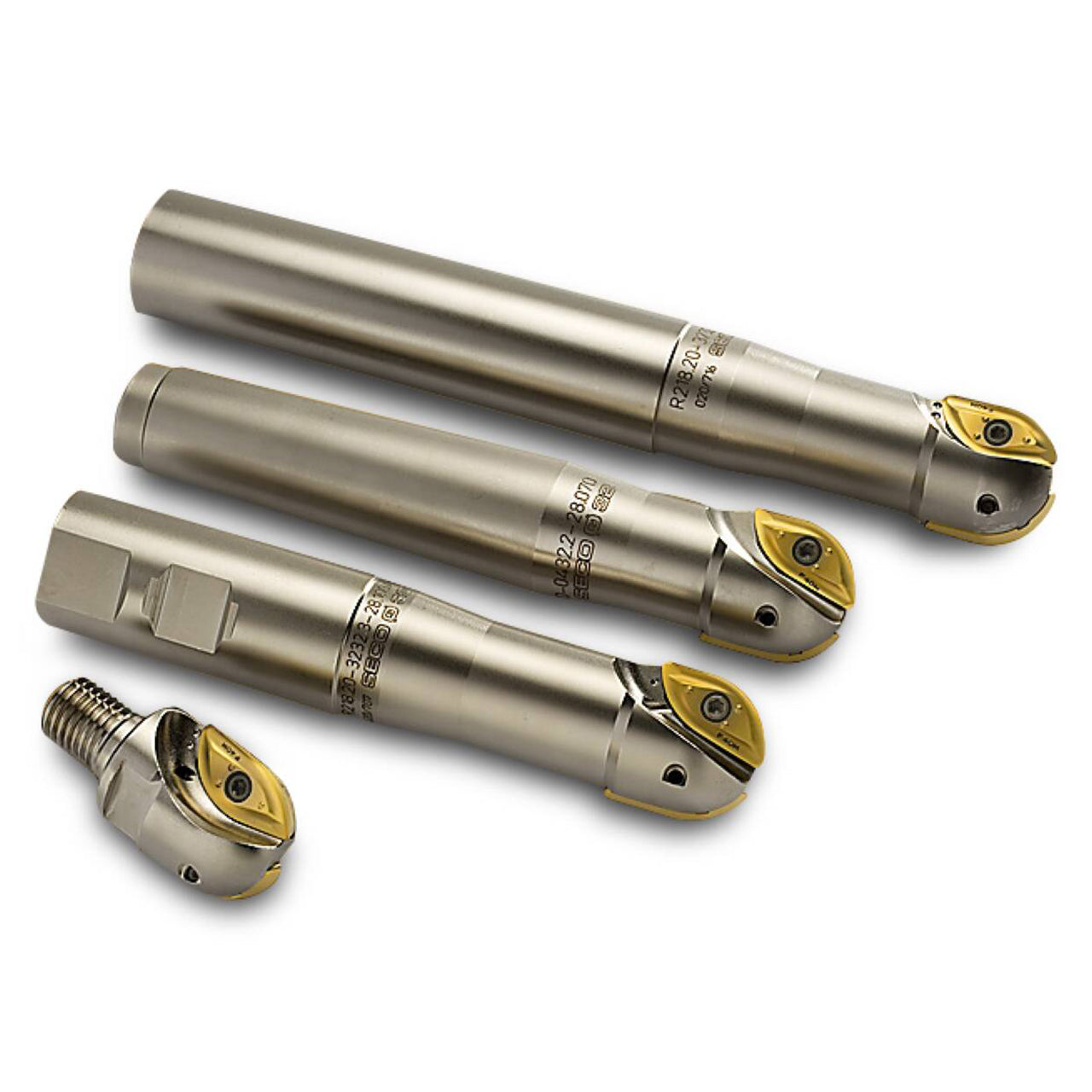

| Product Type | Indexable Ball Nose End Mill |
