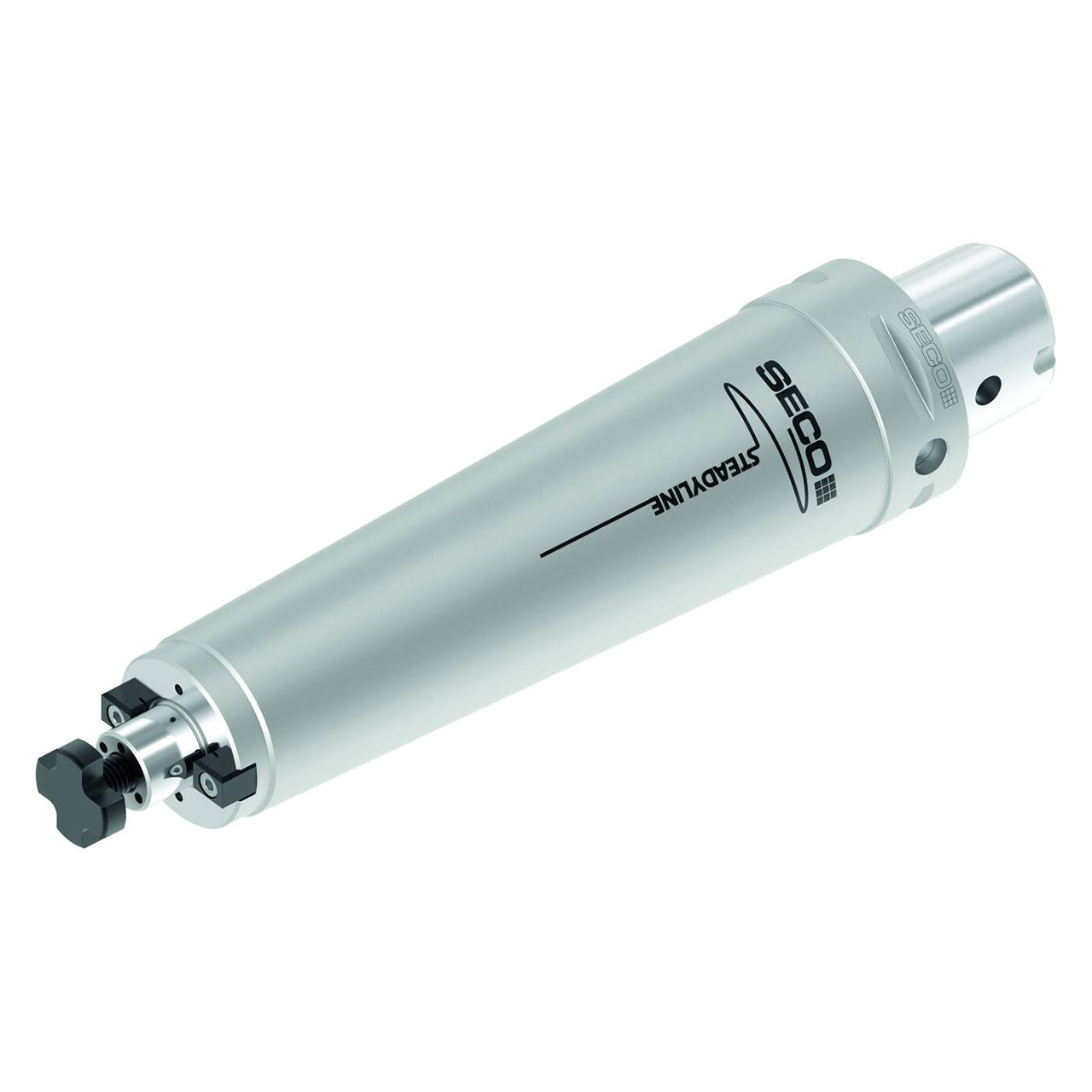

Product Specifications
| Manufacturer Part Number | 02675783 |
| Body Diameter (Decimal Inch) | 2.362" |
| Body Diameter (mm) | 60.00mm |
| Body Diameter 1 (Decimal Inch) | 3.071" |
| Body Diameter 1 (mm) | 78.00mm |
| Shank Diameter (Decimal Inch) | 1.063" |
| Shank Diameter (mm) | 27.00mm |
| Body Length (Decimal Inch) | 11.299" |
| Body Length (mm) | 287.00mm |
| Functional Length (Decimal Inch) | 12.598" |
| Functional Length (mm) | 320.00mm |
| Clamping Length (Decimal Inch) | 0.827" |
| Clamping Length (mm) | 21.00mm |
| Overall Length (Decimal Inch) | 15.315" |
| Overall Length (mm) | 389.00mm |
| Body Half Taper Angle Degree) | 1.6 Degree |
| Data Chip Provision | 1 |
| Maximum Rotational Speed (rpm) | 6000 rpm |
| Product Type | Shell Mill Holder |
