Product Specifications
| Manufacturer Part Number | 02669638 |
| Cutting Diameter (mm) | 35.00mm |
| Connection Bore Diameter (mm) | 27.00mm |
| Contact Surface Diameter Machine Side (mm) | 62.00mm |
| Maximum Cutting Diameter (mm) | 67.00mm |
| Functional Length (mm) | 50.00mm |
| Maximum Depth of Cut (mm) | 28.00mm |
| Depth of Key Way (mm) | 7.00mm |
| Keyway Width (mm) | 12.40mm |
| Coolant Entry Style Code | 1 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -13 Degree |
| Rake Radial Angle (Degree) | -13 Degree |
| Rake Orthogonal Angle (Degree) | -13 Degree |
| Axial Rake Angle (Degree) | 3 Degree |
| Tool Cutting Edge Angle (Degree) | 60 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 60 Degree |
| Number of Flute | 3 |
| Maximum Rotational Speed (rpm) | 12600 rpm |
| Shank Type | Arbor |

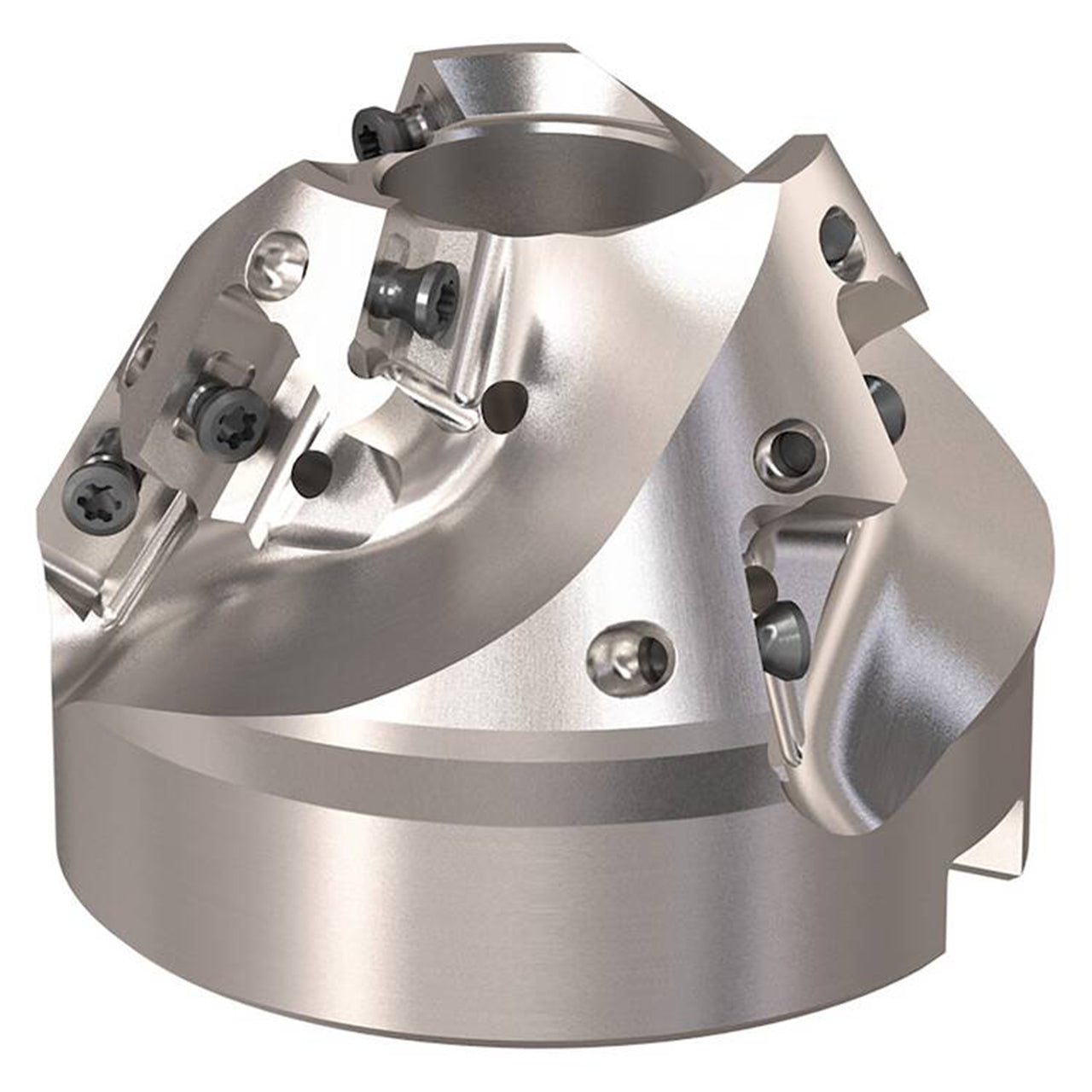

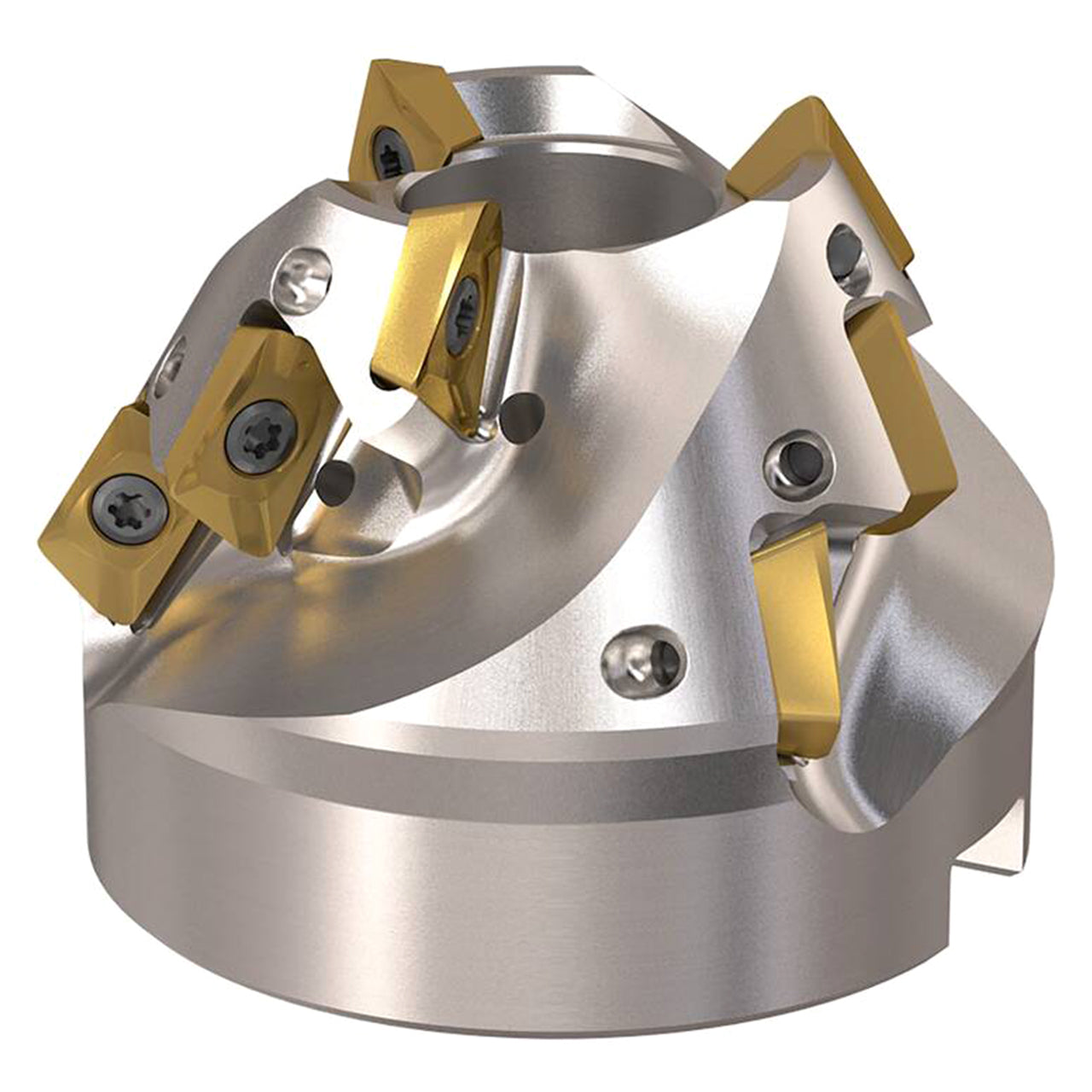

| Product Type | Indexable Chamfer End Mill |
