Product Specifications
| Manufacturer Part Number | 02669615 |
| Cutting Diameter (mm) | 32.00mm |
| Contact Surface Diameter Machine Side (mm) | 63.00mm |
| Maximum Cutting Diameter (mm) | 76.40mm |
| Functional Length (mm) | 60.00mm |
| Overall Length (mm) | 98.00mm |
| Maximum Depth of Cut (mm) | 22.50mm |
| Coolant Entry Style Code | 1 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -14 Degree |
| Rake Radial Angle (Degree) | -14 Degree |
| Rake Orthogonal Angle (Degree) | -14 Degree |
| Axial Rake Angle (Degree) | 4 Degree |
| Tool Cutting Edge Angle (Degree) | 45 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 45 Degree |
| Number of Flute | 3 |
| Maximum Rotational Speed (rpm) | 11800 rpm |
| Shank Type | Seco-Capto |

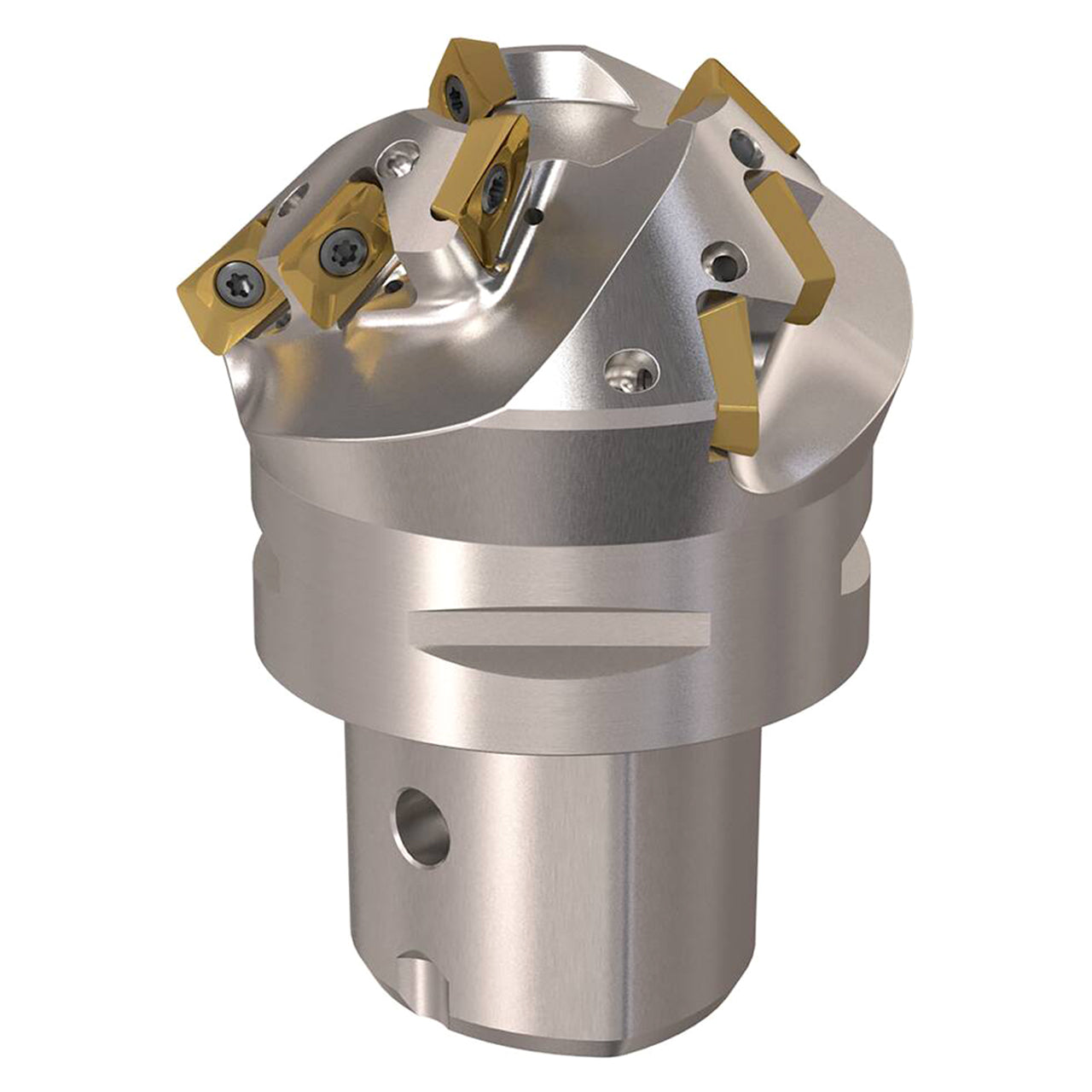

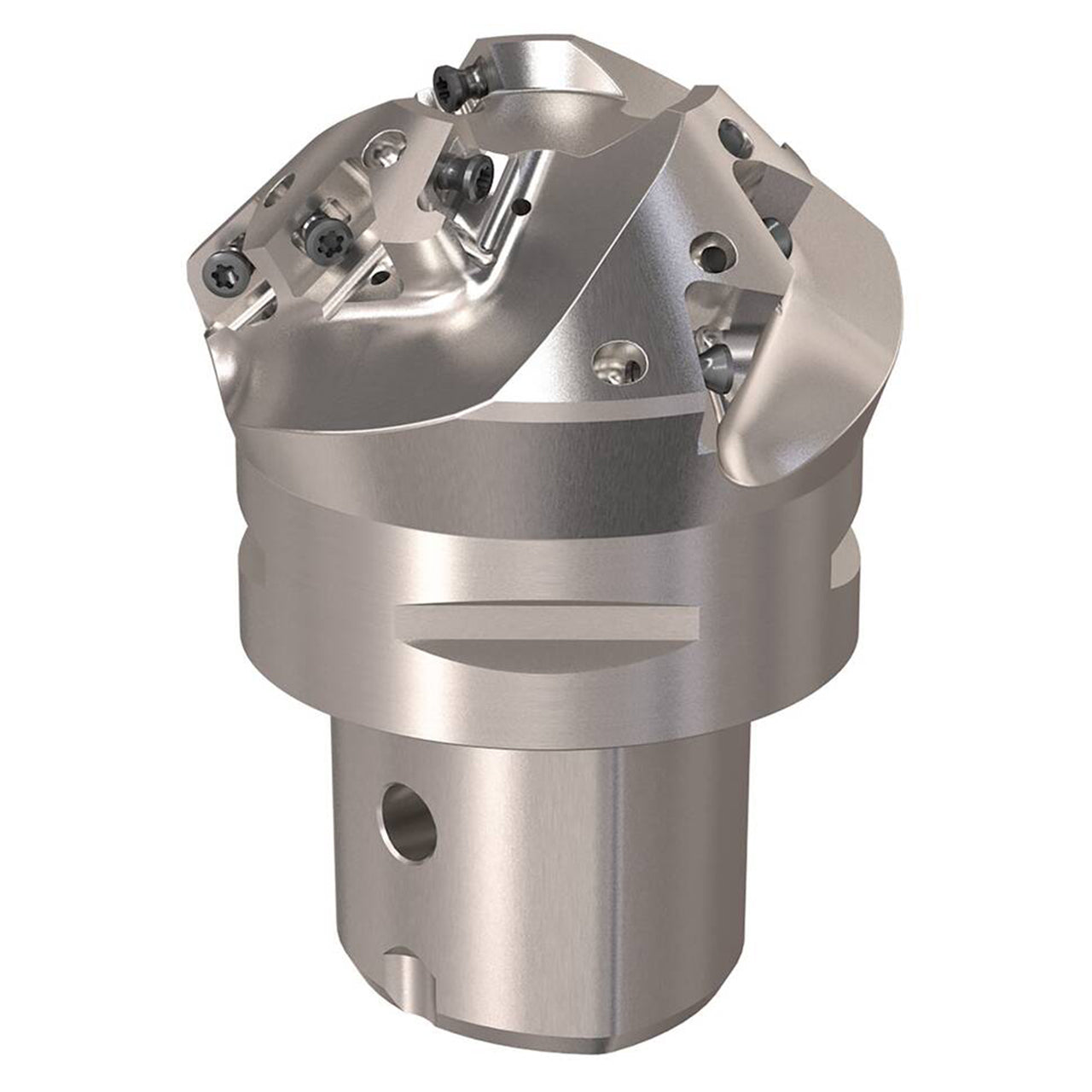

| Product Type | Indexable Chamfer End Mill |
