Product Specifications
| Manufacturer Part Number | 02669572 |
| Cutting Diameter (mm) | 16.00mm |
| Contact Surface Diameter Machine Side (mm) | 23.00mm |
| Maximum Cutting Diameter (mm) | 27.00mm |
| Thread Diameter Size | M12 |
| Functional Length (mm) | 30.00mm |
| Maximum Depth of Cut (mm) | 9.00mm |
| Connection Mounting Torque (Nm) | 60.0 Nm |
| Coolant Entry Style Code | 1 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -13 Degree |
| Rake Radial Angle (Degree) | -13 Degree |
| Rake Orthogonal Angle (Degree) | -13 Degree |
| Axial Rake Angle (Degree) | 3 Degree |
| Tool Cutting Edge Angle (Degree) | 60 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 60 Degree |
| Number of Flute | 2 |
| Maximum Rotational Speed (rpm) | 20100 rpm |
| Shank Type | Combimaster |

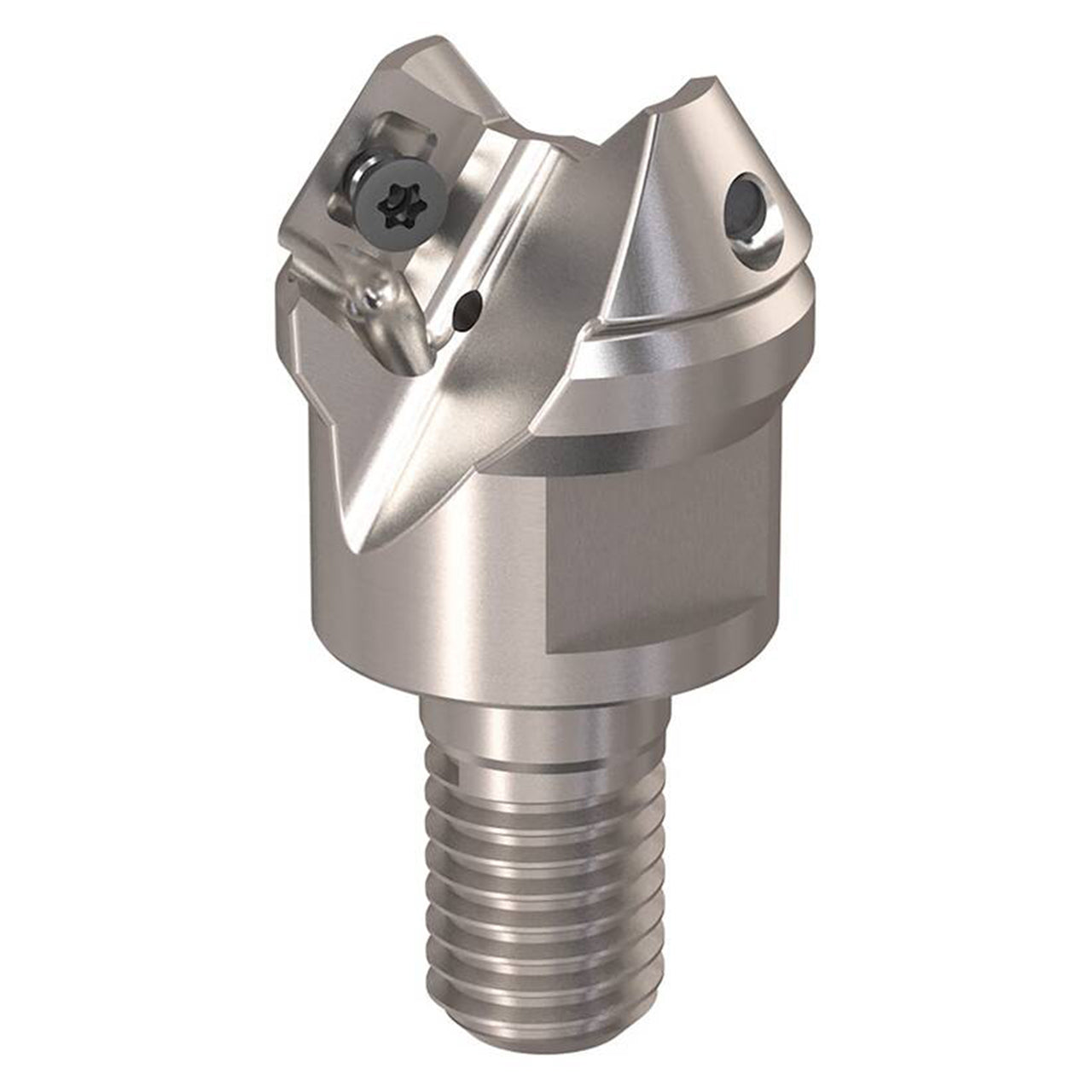

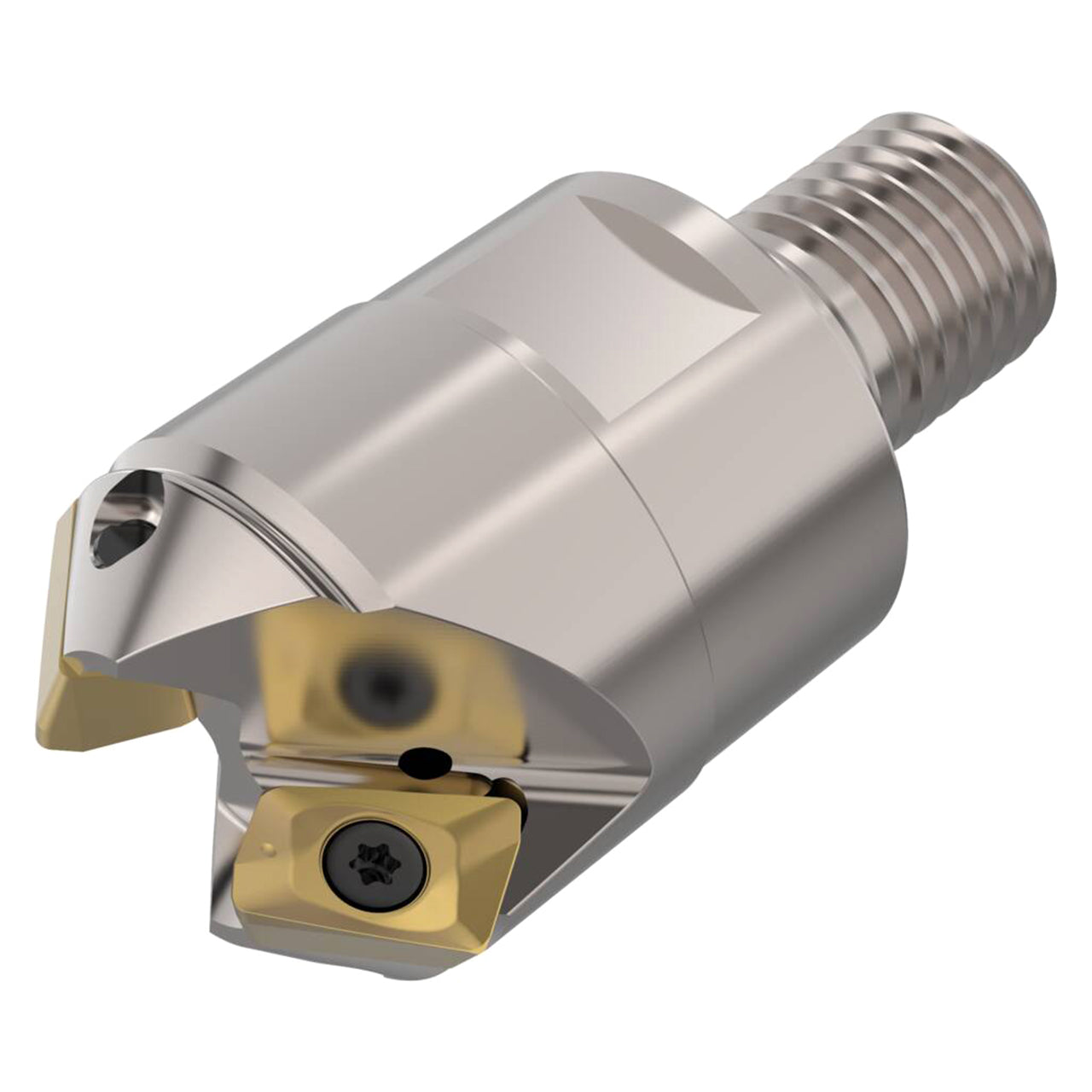

| Product Type | Indexable Chamfer End Mill |
