Product Specifications
| Manufacturer Part Number | 02656566 |

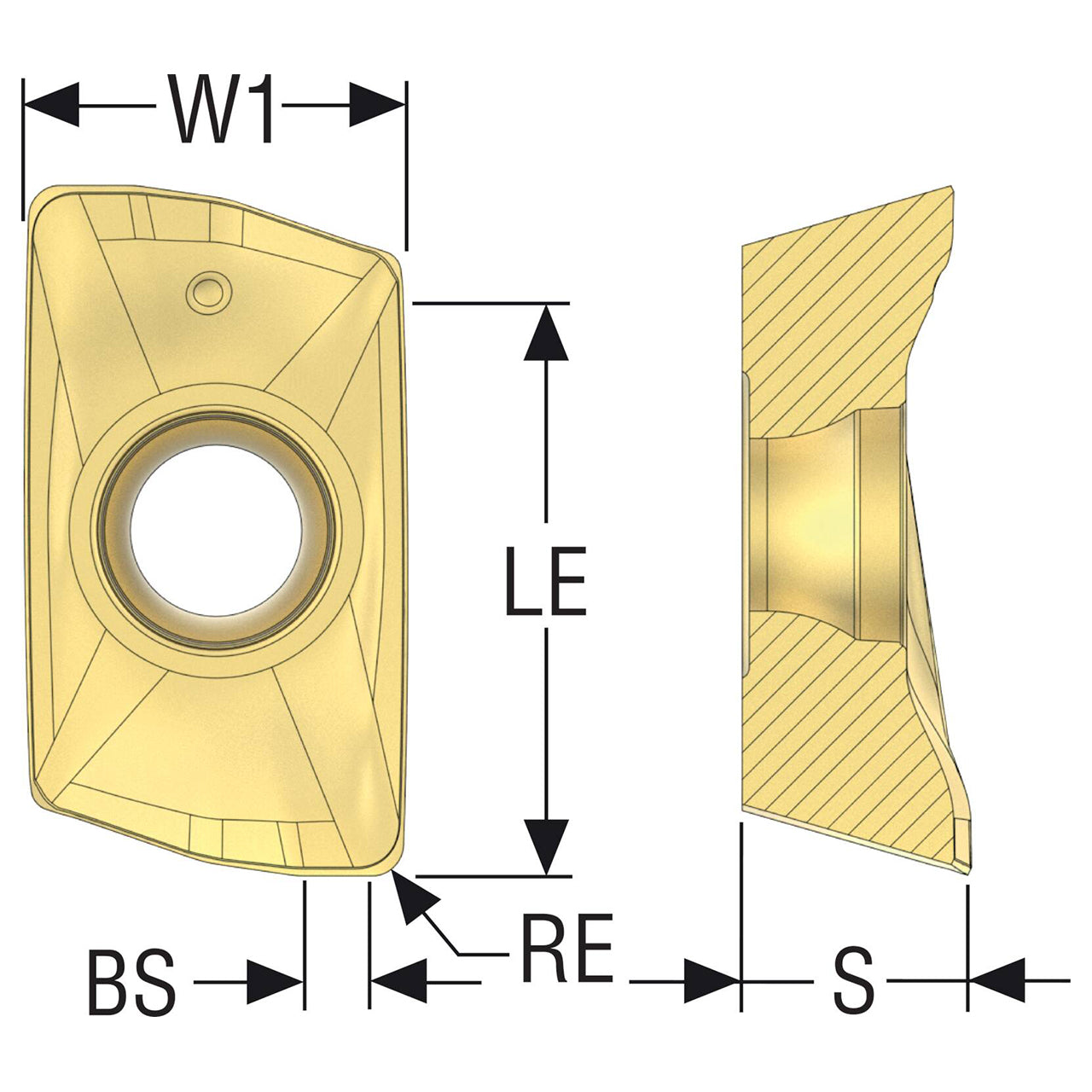

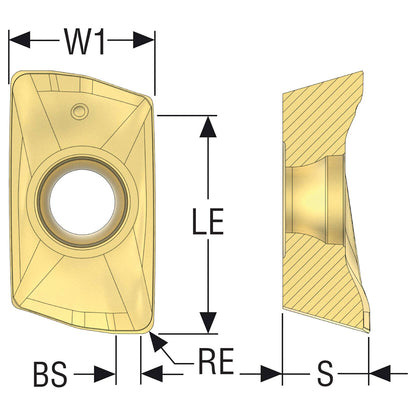

| Fixing Hole Diameter (Decimal Inch) | 0.197" |
| Fixing Hole Diameter (mm) | 5.00mm |
| Wiper Edge Length (Decimal Inch) | 0.087" |
| Wiper Edge Length (mm) | 2.20mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.669" |
| Cutting Edge Effective Length (mm) | 17.00mm |
| Corner Chamfer Width (Decimal Inch) | 0.006" |
| Corner Chamfer Width (mm) | 0.14mm |
| Corner Radius (Decimal Inch) | 0.122" |
| Corner Radius (mm) | 3.10mm |
| Insert Thickness (Decimal Inch) | 0.252" |
| Insert Thickness (mm) | 6.39mm |
| Clearance Angle Major (Degree) | 15 Degree |
| Cutting Edge Count | 2 |
| Cutting Geometry Type Technical | D16 |
| Pocket Seat Code of The Cutter | XO.X1806 |
| Insert Size And Shape | XOMX1806 |
| Insert Rake Angle (Degree) | 9 Degree |
| Insert Hand | Right Hand |
| Material | Carbide |

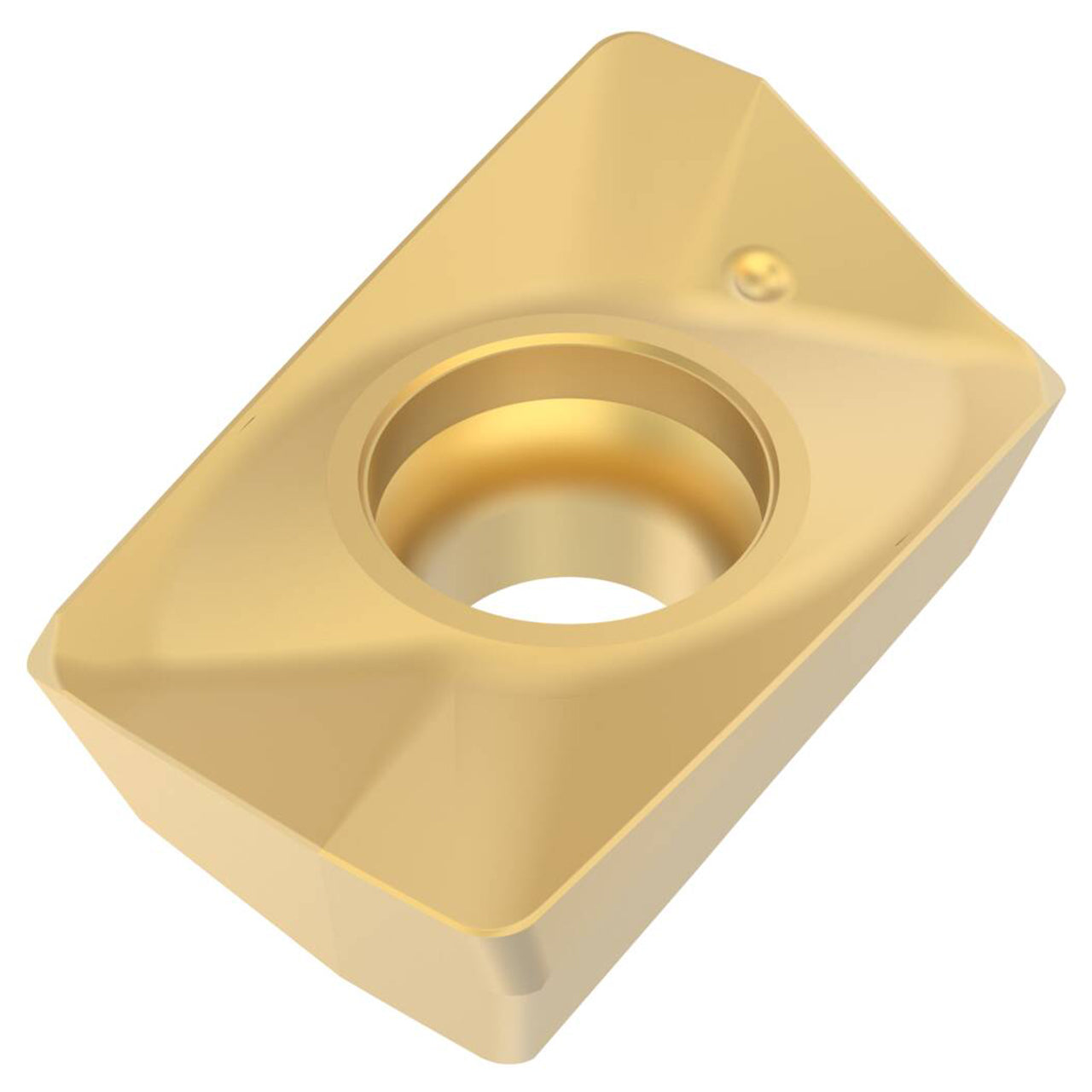

| Product Type | Square Shoulder Milling Insert |
