Product Specifications
| Manufacturer Part Number | 02623657 |
| Minimum Cutting Diameter (Decimal Inch) | 0.669" |
| Minimum Cutting Diameter (mm) | 17.00mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.750" |
| Connection Diameter Machine Side (mm) | 19.05mm |
| Maximum Cutting Diameter (Decimal Inch) | 0.708" |
| Maximum Cutting Diameter (mm) | 17.99mm |
| Flange Diameter (Decimal Inch) | 0.945" |
| Flange Diameter (mm) | 24.00mm |
| Shank Diameter (Decimal Inch) | 0.750" |
| Shank Diameter (mm) | 19.05mm |
| Shank Length (Decimal Inch) | 1.969" |
| Shank Length (mm) | 50.00mm |
| Usable Length (Decimal Inch) | 5.669" |
| Usable Length (mm) | 144.00mm |
| Overall Length (Decimal Inch) | 8.764" |
| Overall Length (mm) | 222.60mm |
| Shank Type | Cylindrical |
| Coolant Entry Style Code | 1 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 4 |

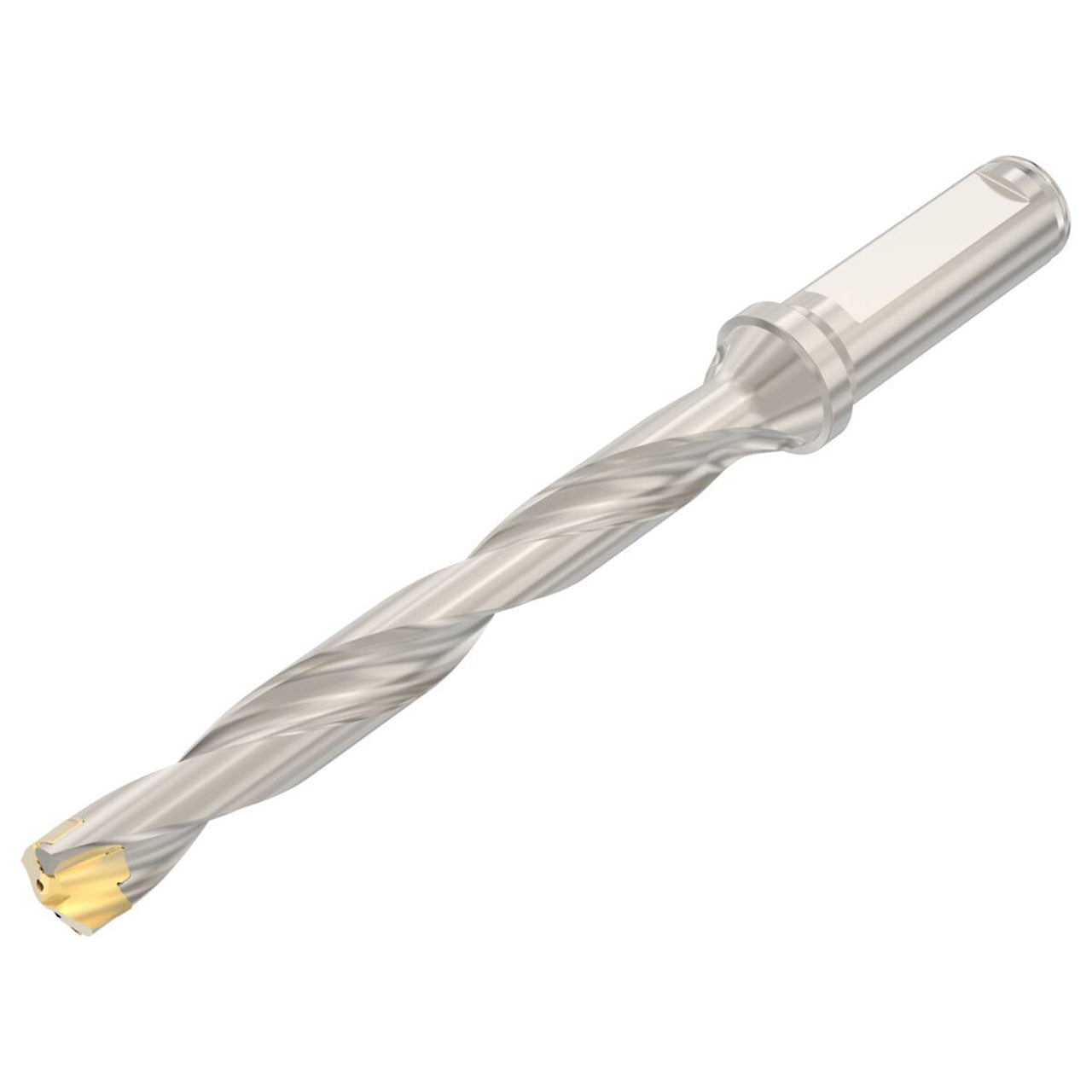

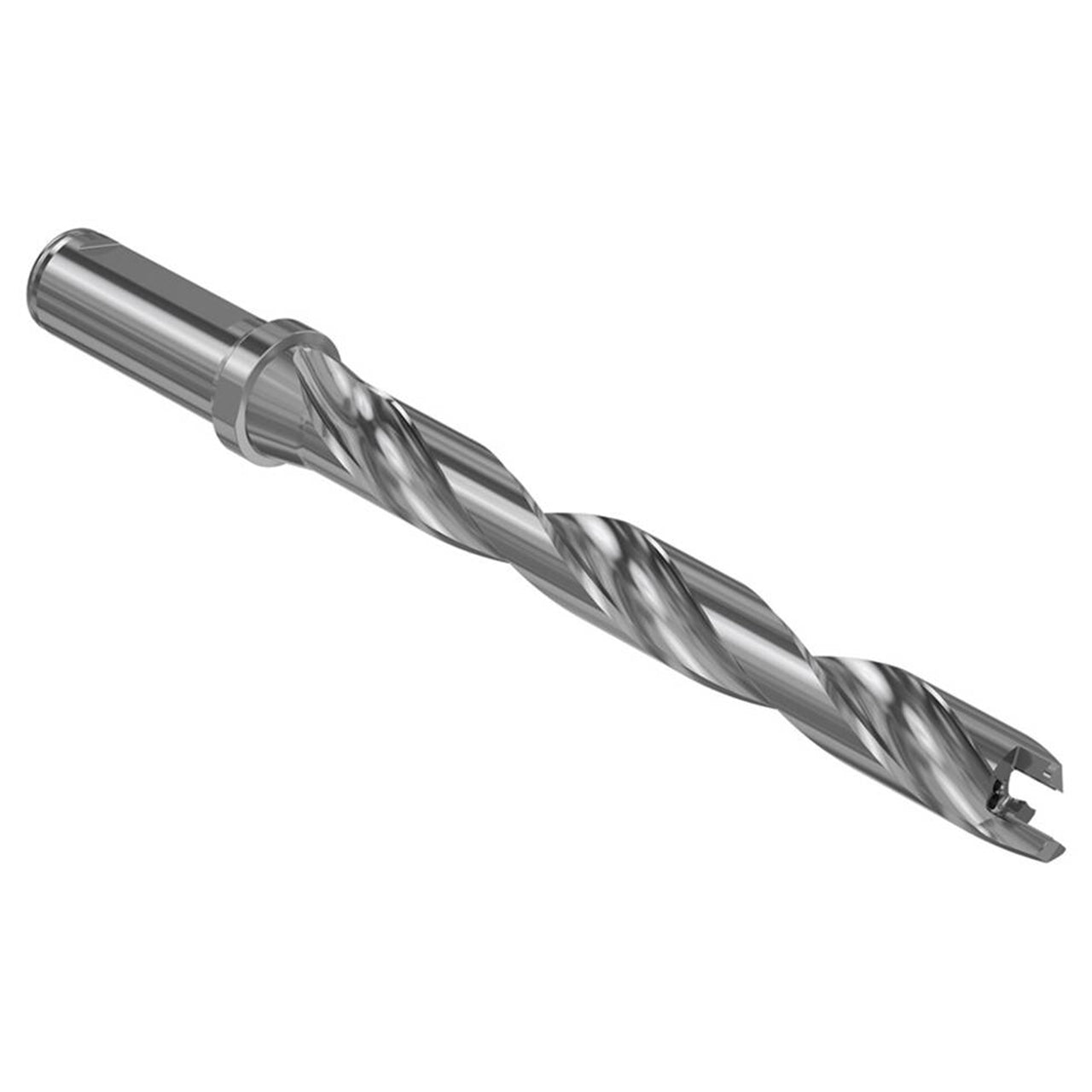

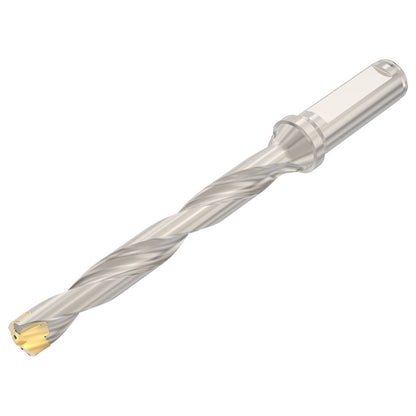

| Product Type | Indexable Drill Body |
