Product Specifications
| Manufacturer Part Number | 02623608 |
| Minimum Cutting Diameter (Decimal Inch) | 0.630" |
| Minimum Cutting Diameter (mm) | 16.00mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.750" |
| Connection Diameter Machine Side (mm) | 19.05mm |
| Maximum Cutting Diameter (Decimal Inch) | 0.669" |
| Maximum Cutting Diameter (mm) | 16.99mm |
| Flange Diameter (Decimal Inch) | 0.945" |
| Flange Diameter (mm) | 24.00mm |
| Shank Diameter (Decimal Inch) | 0.750" |
| Shank Diameter (mm) | 19.05mm |
| Functional Length Secondary (Decimal Inch) | 4.406" |
| Functional Length Secondary (mm) | 111.90mm |
| Shank Length (Decimal Inch) | 1.969" |
| Shank Length (mm) | 50.00mm |
| Usable Length (Decimal Inch) | 3.347" |
| Usable Length (mm) | 85.00mm |
| Overall Length (Decimal Inch) | 6.374" |
| Overall Length (mm) | 161.90mm |
| Coolant Entry Style Code | 1 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 4 |
| Shank Type | Cylindrical |

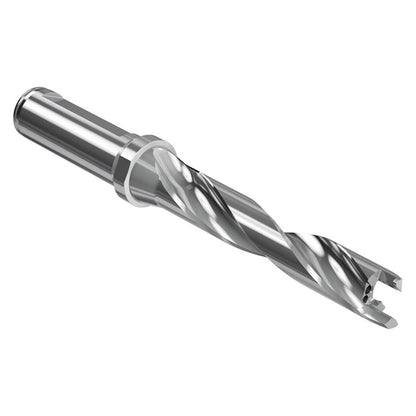

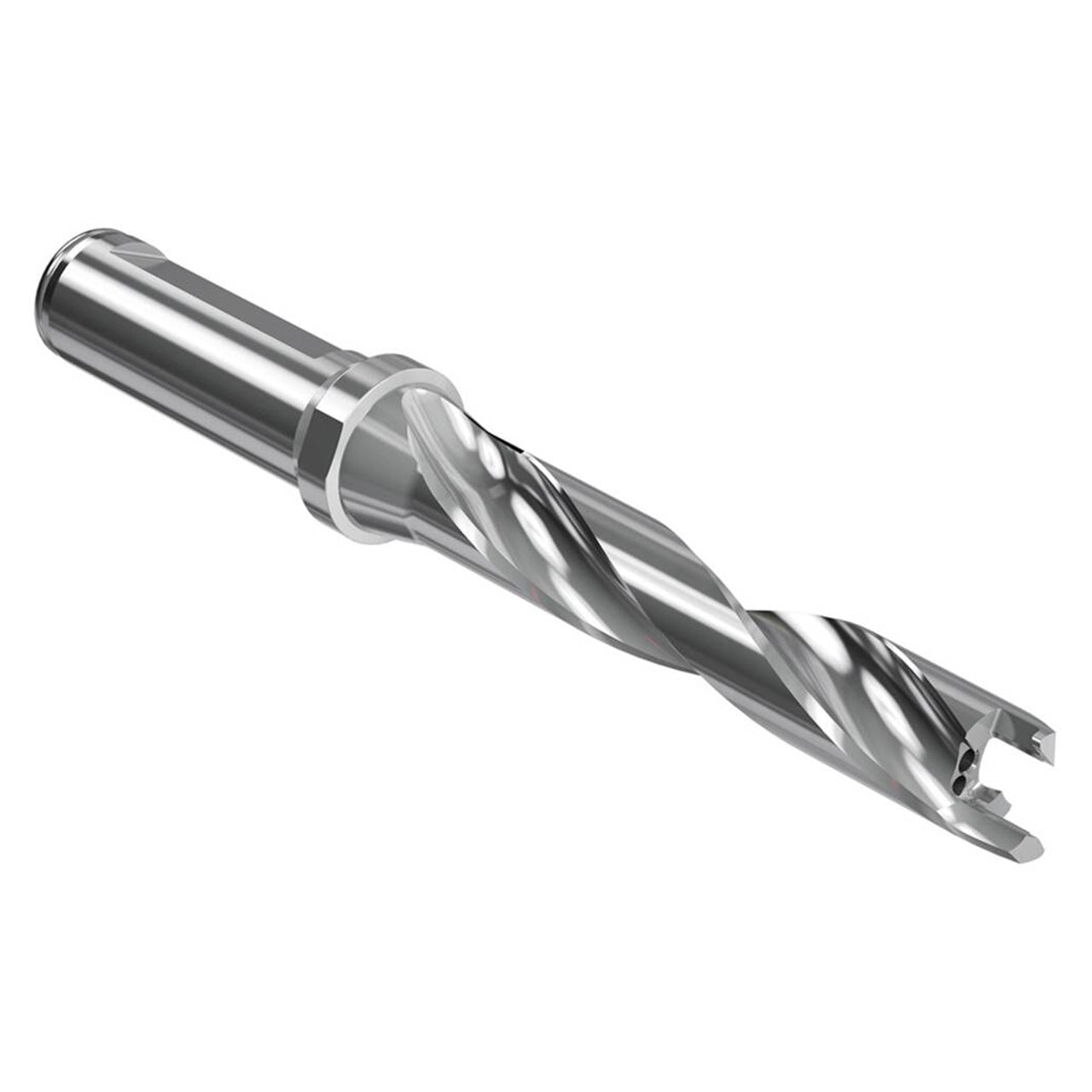

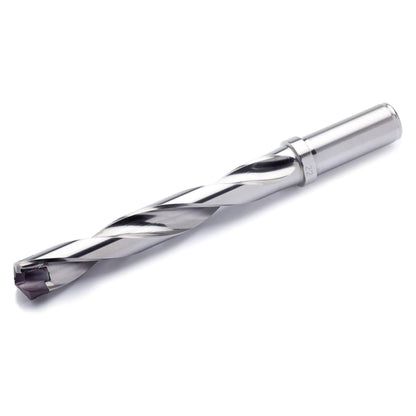

| Product Type | Replaceable-Tip Drill |
