Product Specifications
| Manufacturer Part Number | 02616994 |

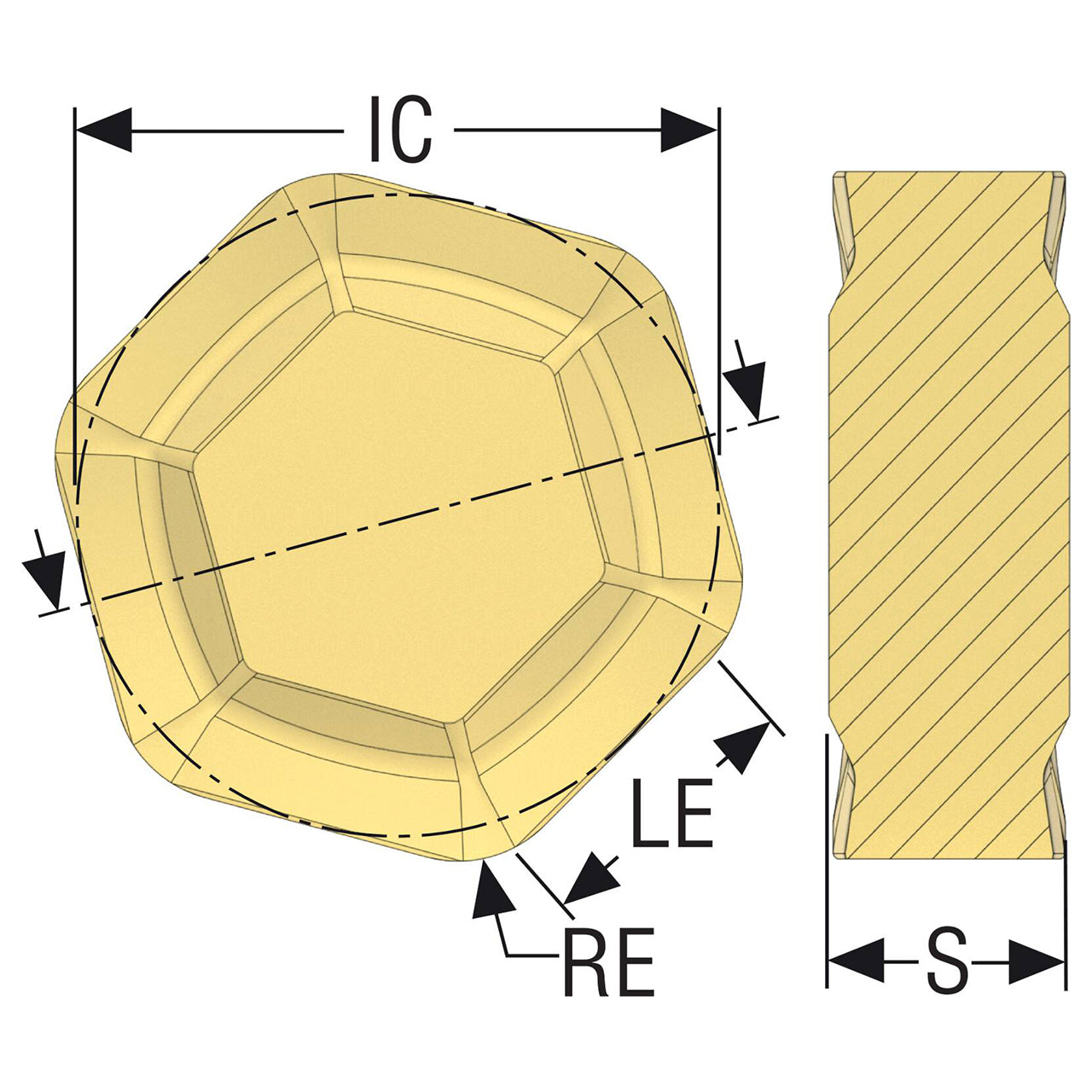

| Inscribed Circle Diameter (Decimal Inch) | 0.639" |
| Inscribed Circle Diameter (mm) | 16.22mm |
| Corner Radius (Decimal Inch) | 0.122" |
| Corner Radius (mm) | 3.10mm |
| Insert Thickness (Decimal Inch) | 0.221" |
| Insert Thickness (mm) | 5.60mm |
| Cutting Edge Count | 12 |
| Cutting Geometry Type Technical | M14 |
| Pocket Seat Code of The Cutter | HN.F0905 |
| Insert Size And Shape | HNEF0905 |
| Insert Rake Angle (Degree) | 8 Degree |
| Material | Carbide |
| Product Type | Milling Insert |
