Product Specifications
| Manufacturer Part Number | 02611348 |
| Cutting Diameter (Decimal Inch) | 6.000" |
| Cutting Diameter (mm) | 152.40mm |
| Connection Bore Diameter (Decimal Inch) | 2.000" |
| Connection Bore Diameter (mm) | 50.80mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 4.331" |
| Contact Surface Diameter Machine Side (mm) | 110.00mm |
| Functional Length (Decimal Inch) | 2.480" |
| Functional Length (mm) | 63.00mm |
| Depth of Key Way (Decimal Inch) | 0.445" |
| Depth of Key Way (mm) | 11.30mm |
| Keyway Width (Decimal Inch) | 0.758" |
| Keyway Width (mm) | 19.26mm |
| Rake Radial Angle (Degree) | -6 Degree |
| Rake Radial Angle (Degree) | -6 Degree |
| Rake Orthogonal Angle (Degree) | -6 Degree |
| Axial Rake Angle (Degree) | -6 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Maximum Rotational Speed (rpm) | 4800 rpm |
| Shank Type | Arbor |

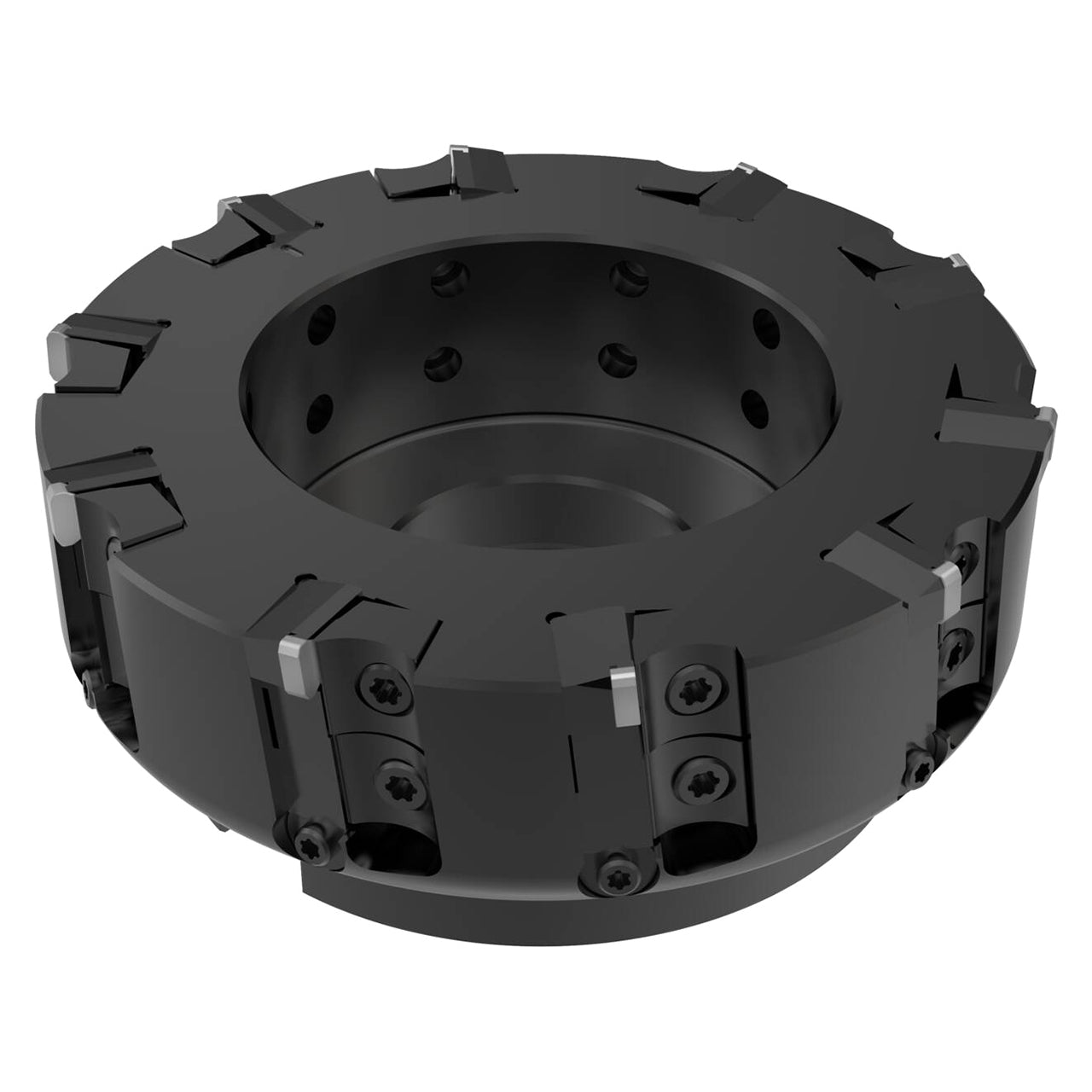

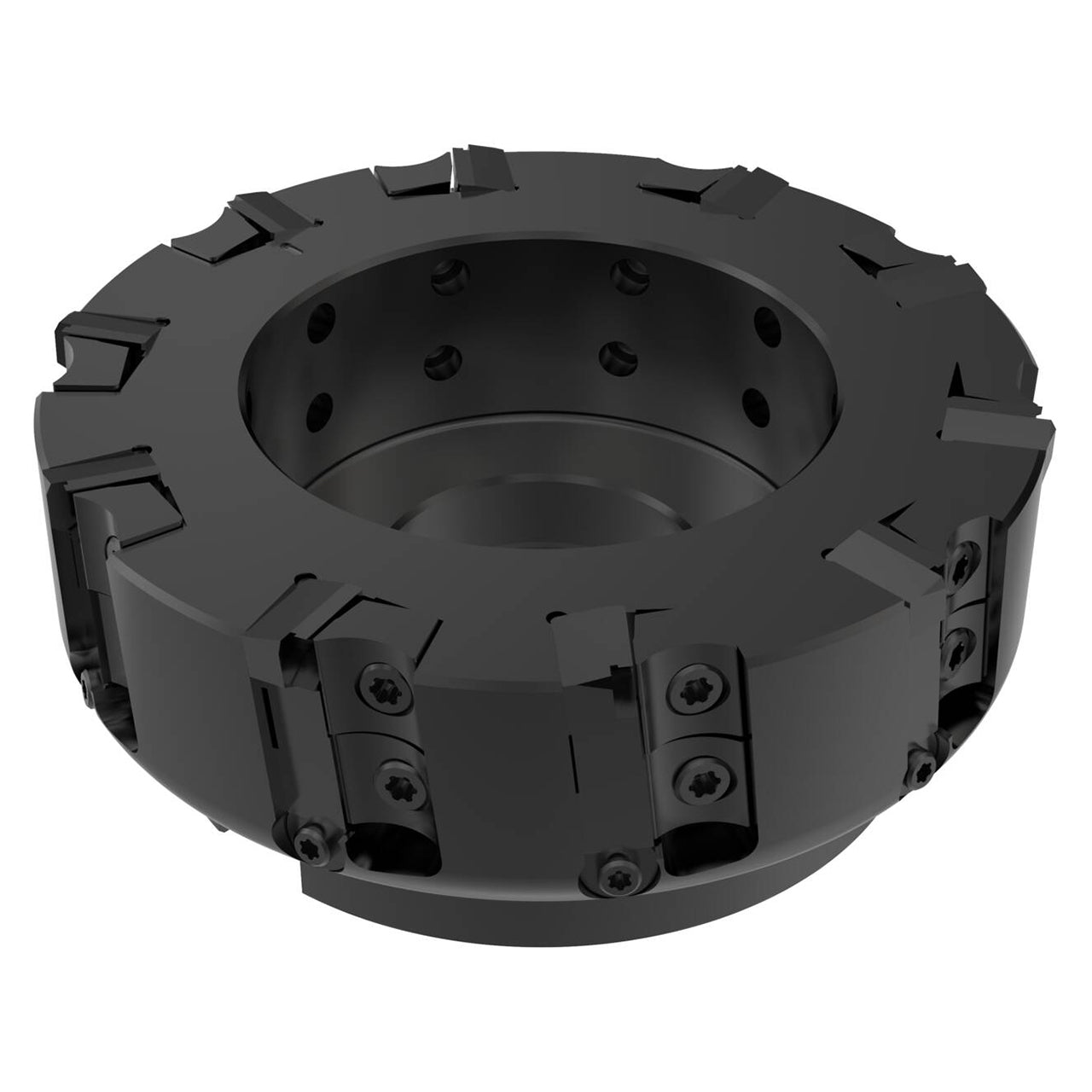

| Product Type | Face Mill for Triangle Insert |
