Product Specifications
| Manufacturer Part Number | 02610391 |

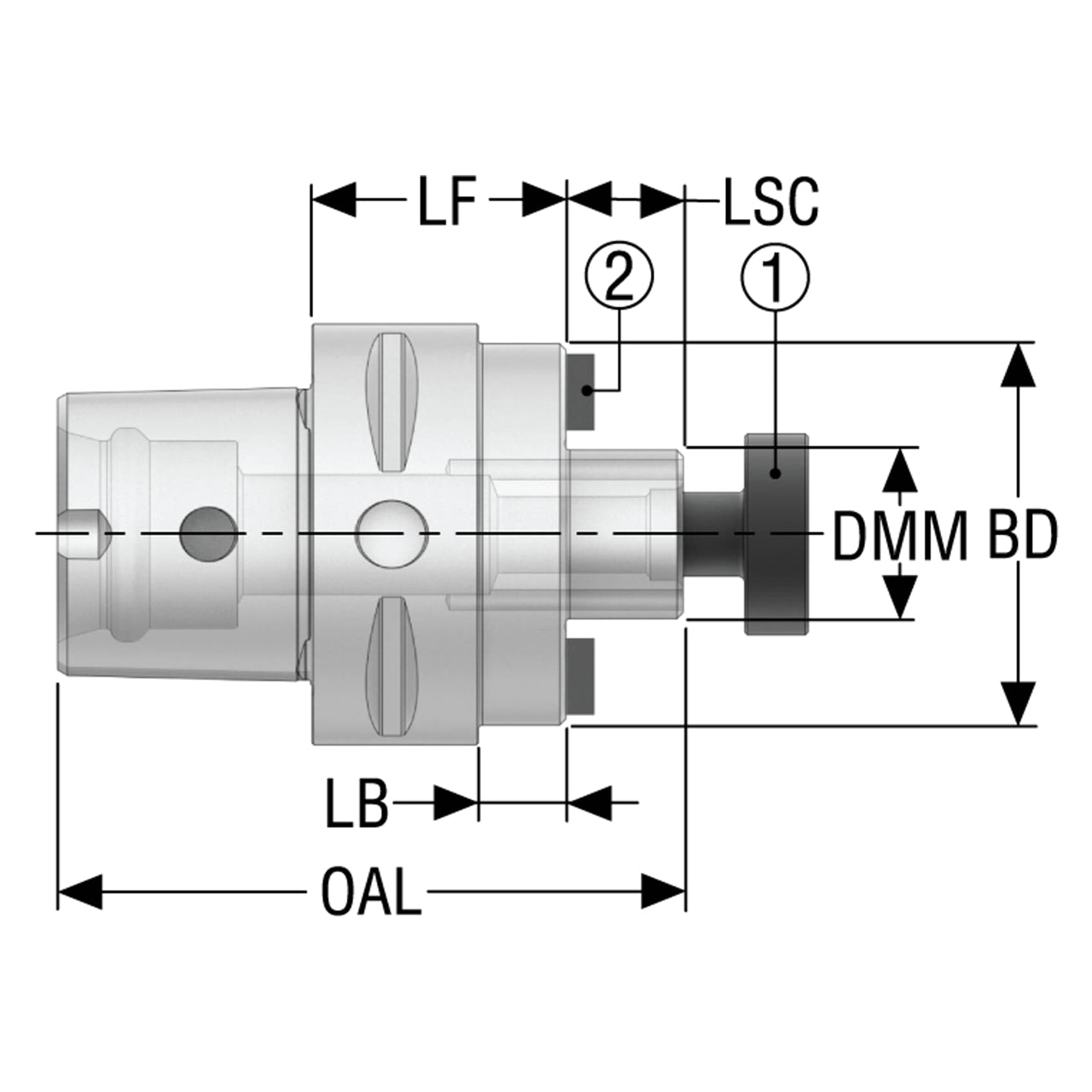

| Body Diameter (Decimal Inch) | 2.750" |
| Body Diameter (mm) | 69.85mm |
| Connection Diameter Workpiece Side (Decimal Inch) | 1.250" |
| Connection Diameter Workpiece Side (mm) | 31.75mm |
| Shank Diameter (Decimal Inch) | 1.250" |
| Shank Diameter (mm) | 31.75mm |
| Body Length (Decimal Inch) | 0.701" |
| Body Length (mm) | 17.80mm |
| Functional Length (Decimal Inch) | 2.000" |
| Functional Length (mm) | 50.80mm |
| Clamping Length (Decimal Inch) | 0.689" |
| Clamping Length (mm) | 17.50mm |
| Overall Length (Decimal Inch) | 4.579" |
| Overall Length (mm) | 116.30mm |
| Data Chip Provision | 1 |

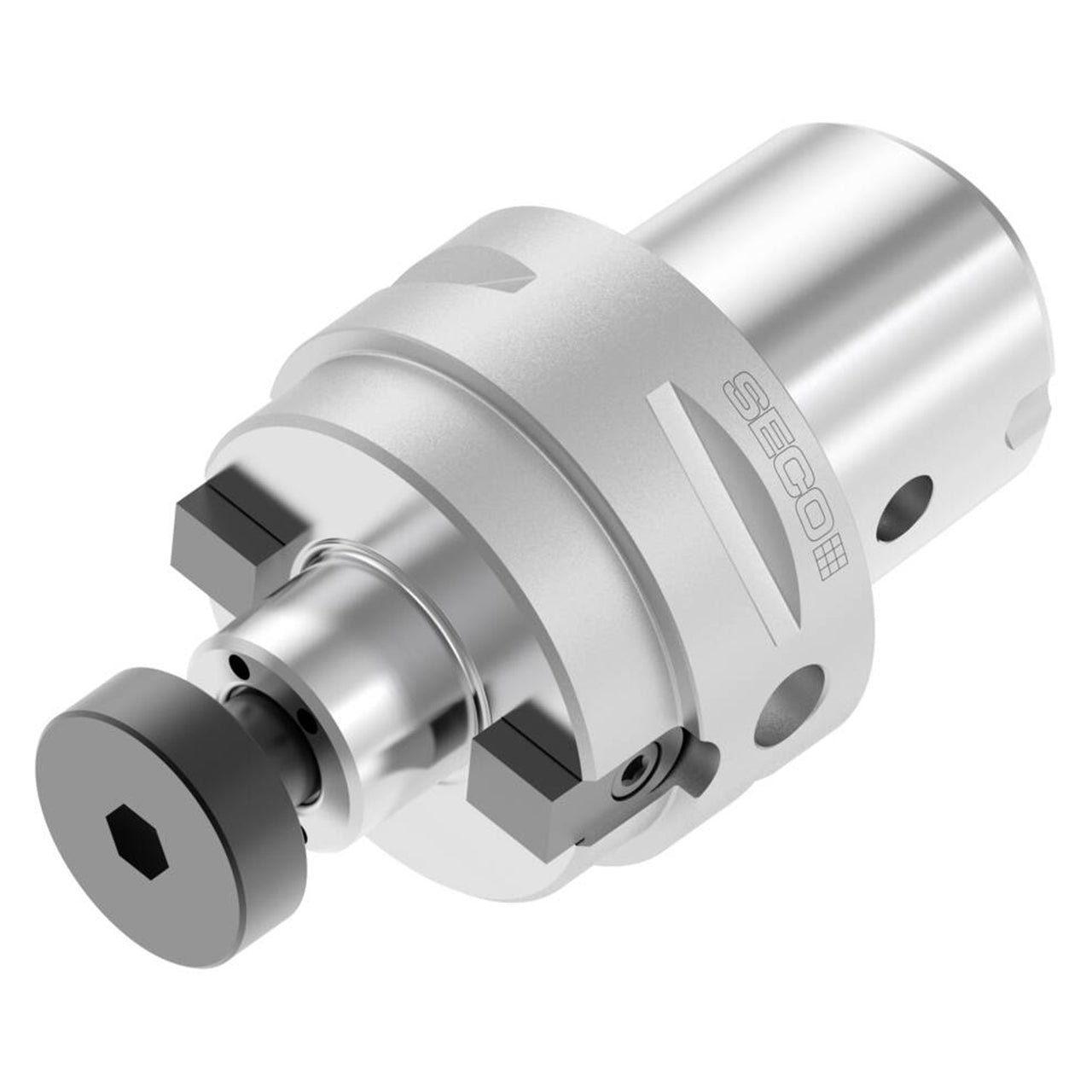

| Product Type | Shell Mill Holder |
