Product Specifications
| Manufacturer Part Number | 02602705 |
| Body Diameter (Decimal Inch) | 1.890" |
| Body Diameter (mm) | 48.00mm |
| Connection Diameter Workpiece Side (Decimal Inch) | 1.260" |
| Connection Diameter Workpiece Side (mm) | 32.00mm |
| Shank Diameter (Decimal Inch) | 1.260" |
| Shank Diameter (mm) | 32.00mm |
| Body Length (Decimal Inch) | 2.480" |
| Body Length (mm) | 63.00mm |
| Functional Length (Decimal Inch) | 3.543" |
| Functional Length (mm) | 90.00mm |
| Maximum Clamping Length (Decimal Inch) | 0.945" |
| Maximum Clamping Length (mm) | 24.00mm |
| Overall Length (Decimal Inch) | 6.118" |
| Overall Length (mm) | 155.40mm |
| Flange Thickness (Decimal Inch) | 0.236" |
| Flange Thickness (mm) | 6.00mm |
| Data Chip Provision | 1 |

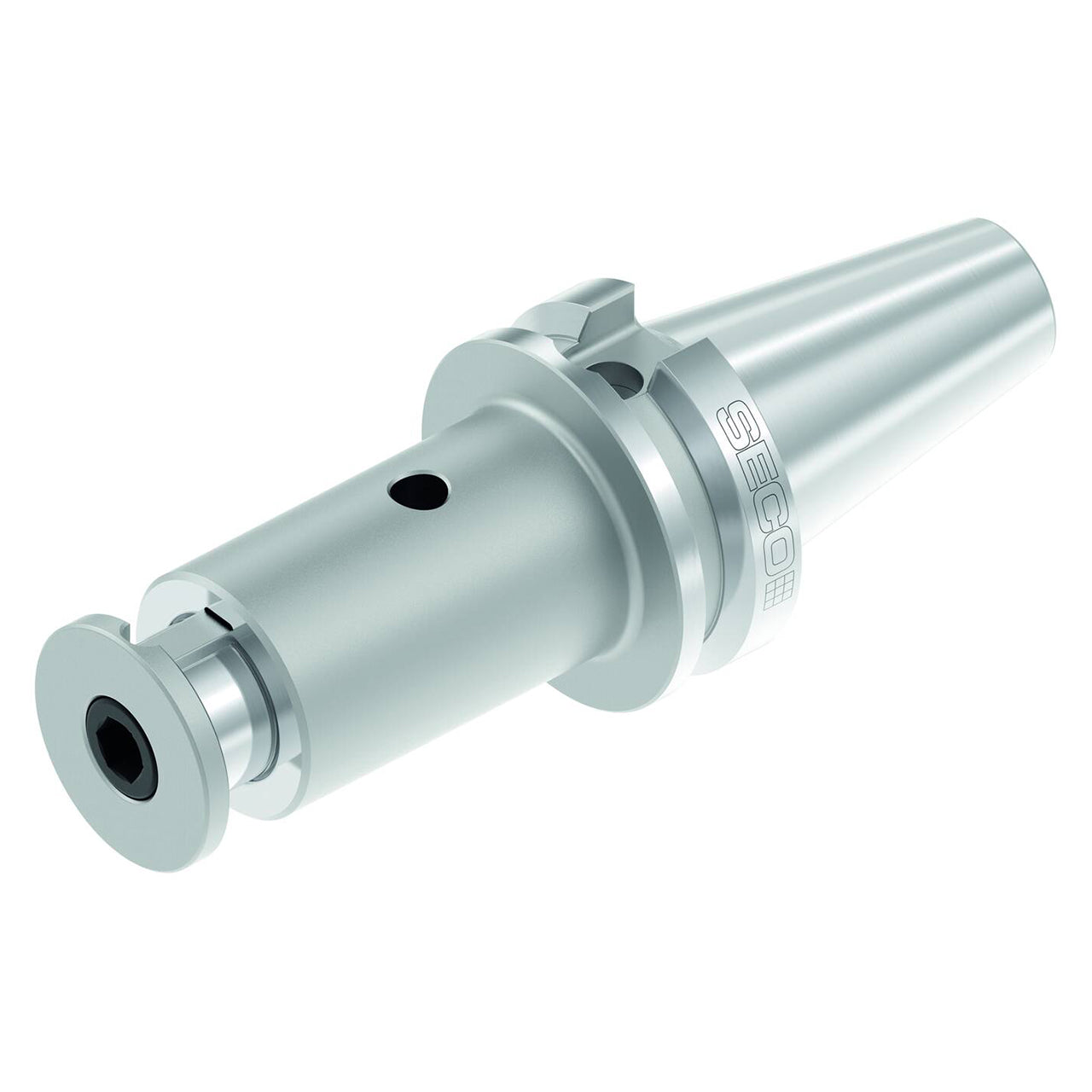

| Product Type | Disc Mill Holder |
