Product Specifications
| Manufacturer Part Number | 02602133 |
| Cutting Diameter (Decimal Inch) | 1.062" |
| Cutting Diameter (mm) | 26.98mm |
| Minimum Cutting Diameter Internal (Decimal Inch) | 1.054" |
| Minimum Cutting Diameter Internal (mm) | 26.78mm |
| Maximum Cutting Diameter Internal (Decimal Inch) | 1.298" |
| Connection Diameter Machine Side (Decimal Inch) | 1.250" |
| Connection Diameter Machine Side (mm) | 31.75mm |
| Flange Diameter (Decimal Inch) | 2.165" |
| Flange Diameter (mm) | 55.00mm |
| Shank Diameter (Decimal Inch) | 1.250" |
| Shank Diameter (mm) | 31.75mm |
| Shank Length (Decimal Inch) | 3.000" |
| Shank Length (mm) | 76.20mm |
| Usable Length (Decimal Inch) | 2.124" |
| Usable Length (mm) | 53.95mm |
| Overall Length (Decimal Inch) | 6.600" |
| Overall Length (mm) | 167.64mm |
| Corner Chamfer Width (Decimal Inch) | 0.047" |
| Corner Chamfer Width (mm) | 1.20mm |
| Adjustment Limit Minimum (Decimal Inch) | 0.004" |
| Adjustment Limit Minimum (mm) | 0.10mm |
| Adjustment Limit Maximum (Decimal Inch) | 0.118" |
| Adjustment Limit Maximum (mm) | 3.00mm |
| Coolant Entry Style Code | 3 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 4 |
| Tool Cutting Edge Angle (Degree) | 87.5 Degree |

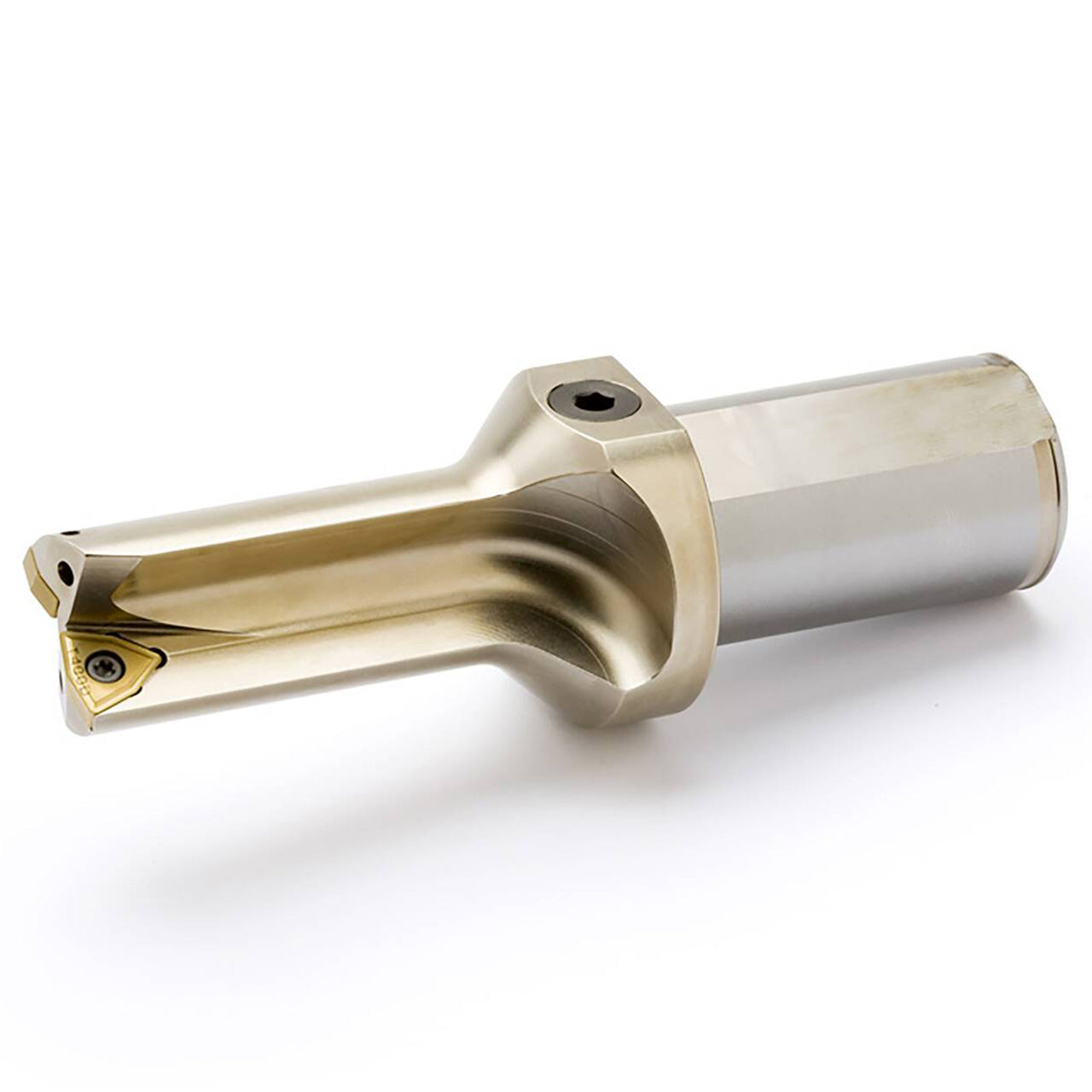

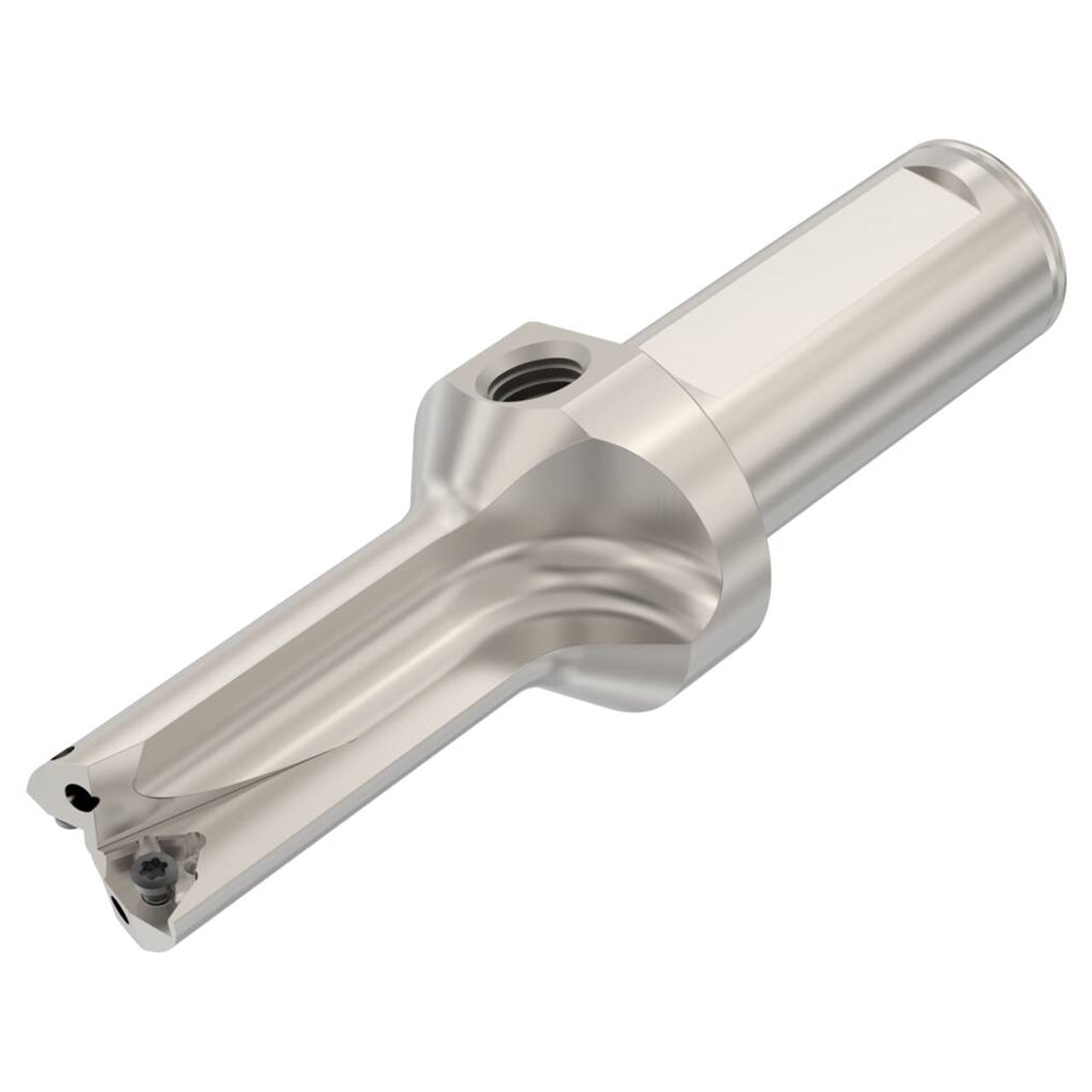

| Product Type | Indexable Insert Drill |
