Product Specifications
| Manufacturer Part Number | 02602129 |
| Cutting Diameter (Decimal Inch) | 0.669" |
| Cutting Diameter (mm) | 16.99mm |
| Minimum Cutting Diameter Internal (Decimal Inch) | 0.661" |
| Minimum Cutting Diameter Internal (mm) | 16.79mm |
| Maximum Cutting Diameter Internal (Decimal Inch) | 0.748" |
| Connection Diameter Machine Side (Decimal Inch) | 1.000" |
| Connection Diameter Machine Side (mm) | 25.40mm |
| Flange Diameter (Decimal Inch) | 1.775" |
| Flange Diameter (mm) | 45.09mm |
| Shank Diameter (Decimal Inch) | 1.000" |
| Shank Diameter (mm) | 25.40mm |
| Shank Length (Decimal Inch) | 3.000" |
| Shank Length (mm) | 76.20mm |
| Usable Length (Decimal Inch) | 1.338" |
| Usable Length (mm) | 33.99mm |
| Overall Length (Decimal Inch) | 5.755" |
| Overall Length (mm) | 146.18mm |
| Adjustment Limit Minimum (Decimal Inch) | 0.004" |
| Adjustment Limit Minimum (mm) | 0.10mm |
| Adjustment Limit Maximum (Decimal Inch) | 0.039" |
| Adjustment Limit Maximum (mm) | 1.00mm |
| Coolant Entry Style Code | 3 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 4 |
| Tool Cutting Edge Angle (Degree) | 87.5 Degree |

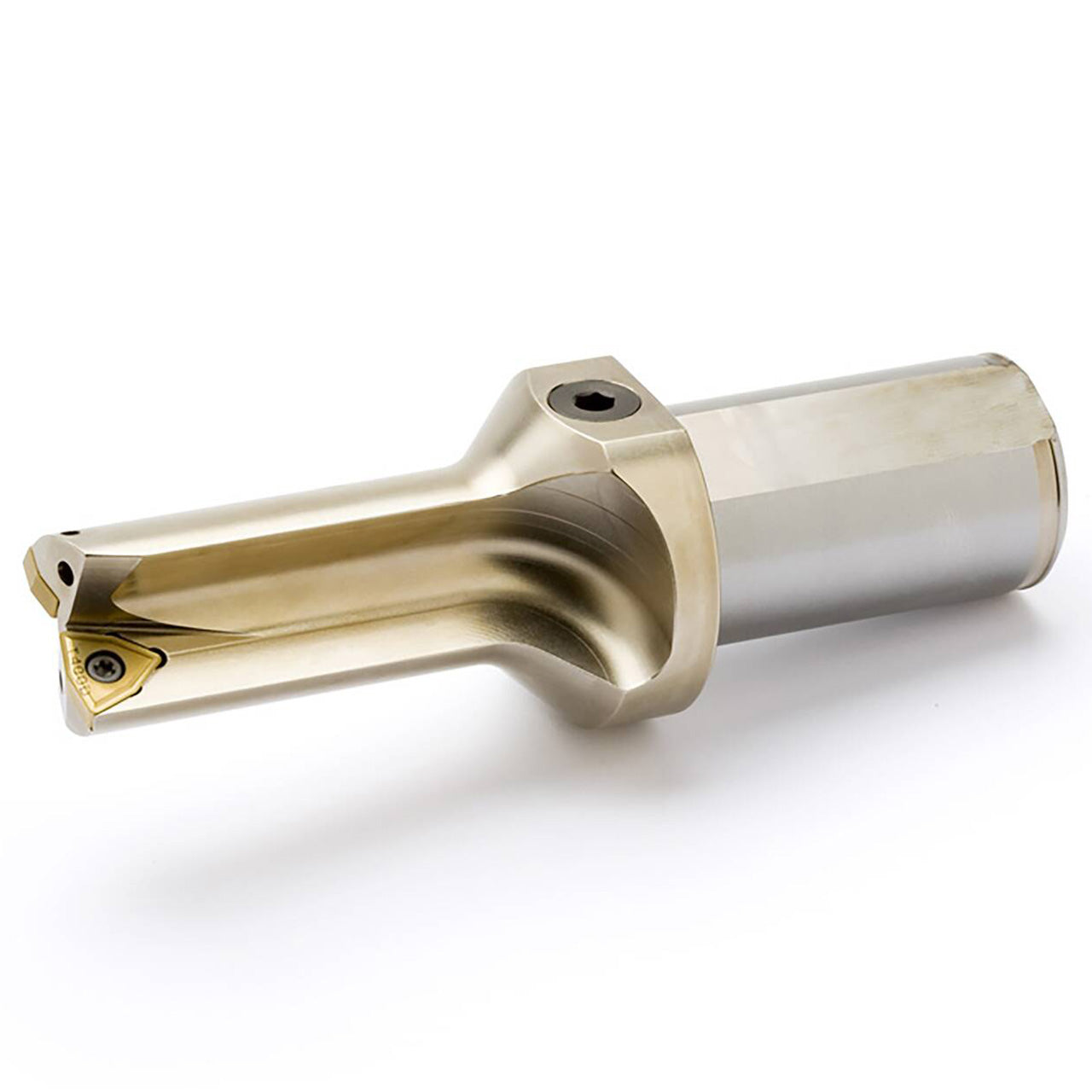

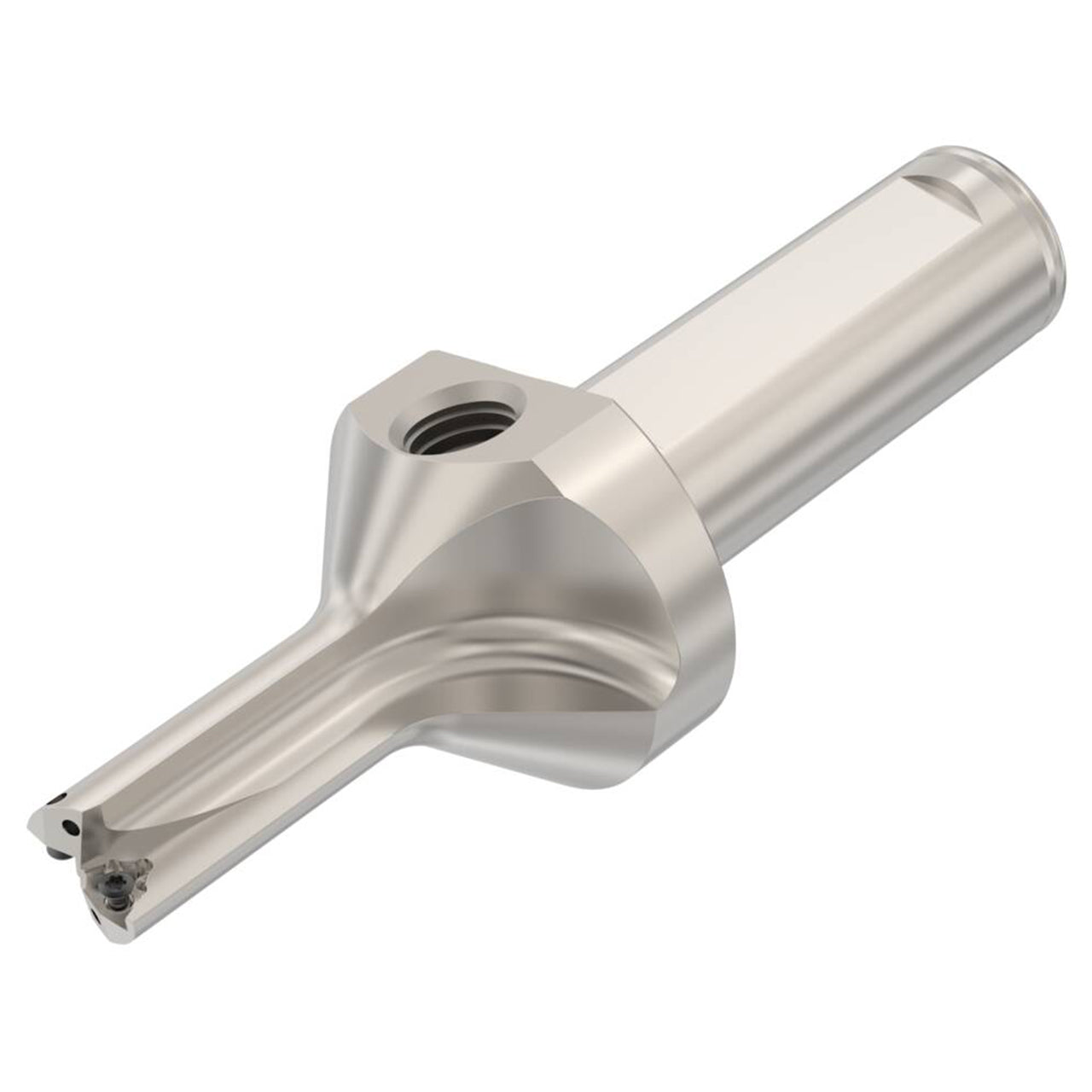

| Product Type | Indexable Insert Drill |
