Product Specifications
| Manufacturer Part Number | 02594977 |
| Minimum Cutting Diameter (Decimal Inch) | 1.299" |
| Minimum Cutting Diameter (mm) | 33.00mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.630" |
| Connection Diameter Machine Side (mm) | 16.00mm |
| Maximum Cutting Diameter (Decimal Inch) | 1.890" |
| Maximum Cutting Diameter (mm) | 48.00mm |
| Shank Diameter (Decimal Inch) | 0.630" |
| Shank Diameter (mm) | 16.00mm |
| Body Length (Decimal Inch) | 2.362" |
| Body Length (mm) | 60.00mm |
| Functional Length (Decimal Inch) | 1.969" |
| Functional Length (mm) | 50.00mm |
| Overall Length (Decimal Inch) | 3.465" |
| Overall Length (mm) | 88.00mm |
| Functional Width (Decimal Inch) | 0.453" |
| Functional Width (mm) | 11.50mm |

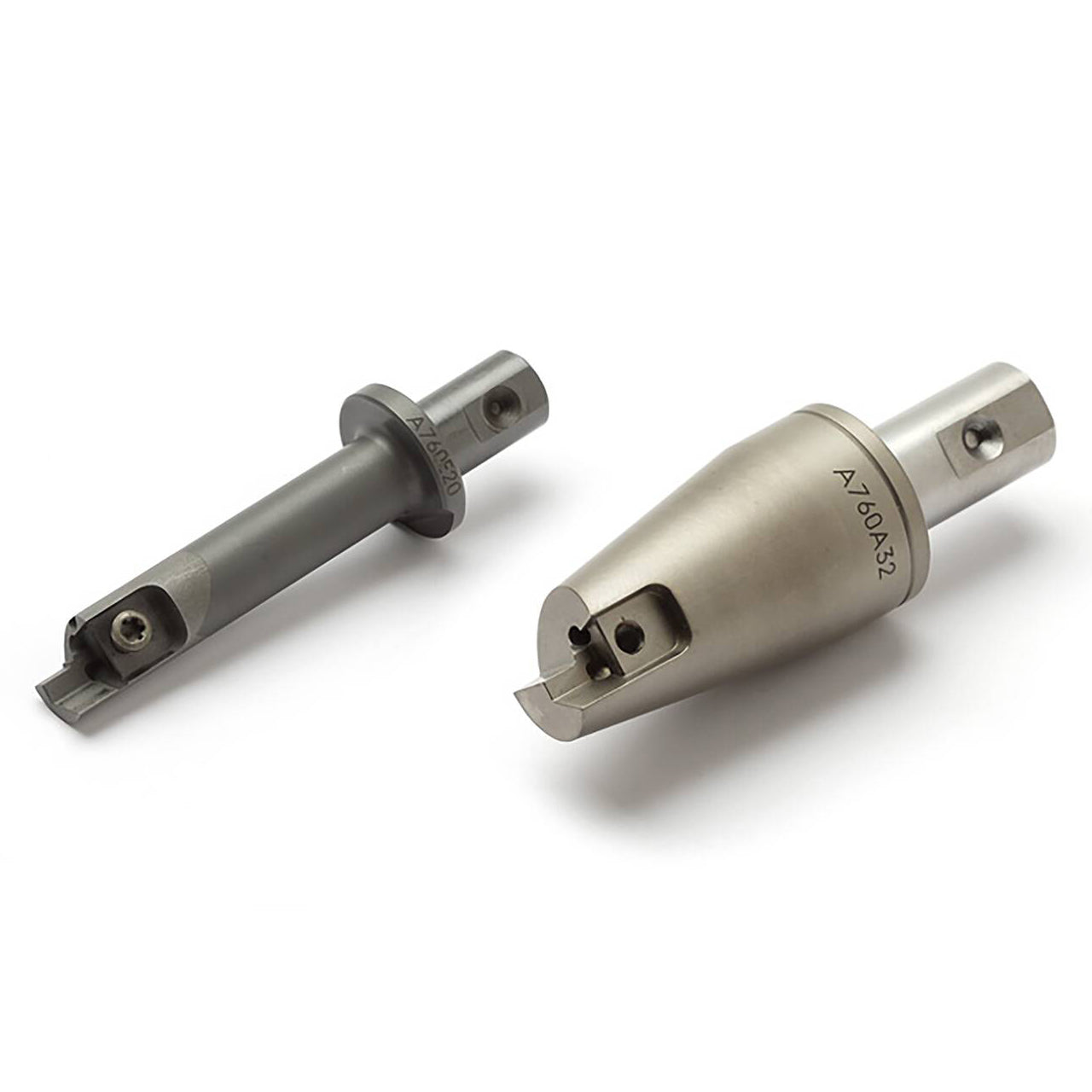

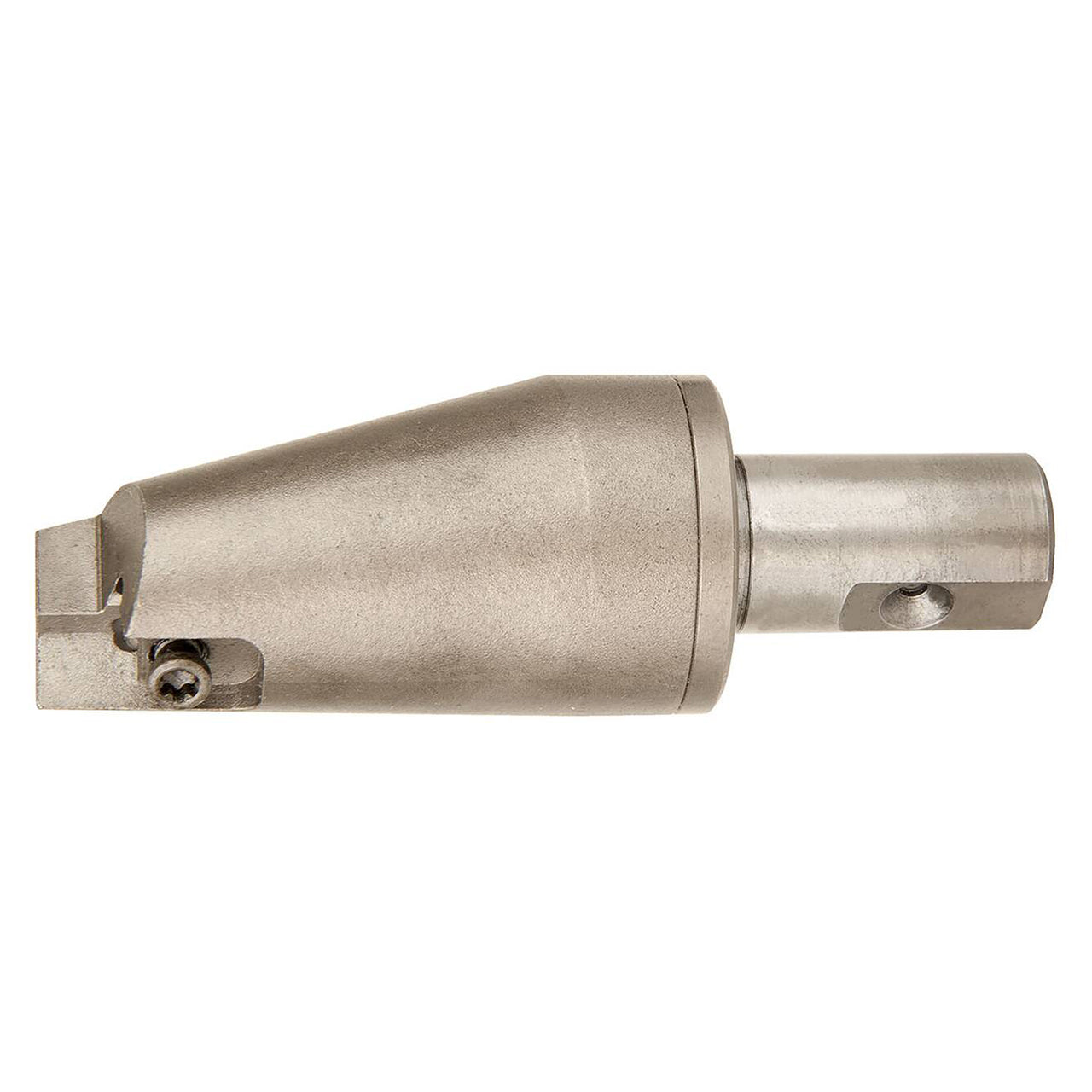

| Product Type | Boring Head Straight Shank |
