Product Specifications
| Manufacturer Part Number | 02588150 |
| Minimum Cutting Diameter Internal (mm) | 250.00mm |
| Minimum Cutting Diameter Internal 3 (mm) | 250.00mm |
| Functional Length (mm) | 150.00mm |
| Head Length (mm) | 42.00mm |
| Shank Length (mm) | 108.00mm |
| Shank Width (mm) | 25.00mm |
| Maximum Radial Cutting Depth (mm) | 1.00mm |
| Maximum Cutting Depth (mm) | 7.80mm |
| Height of Tool Holder Shank (mm) | 25.00mm |
| Functional Height (mm) | 25.00mm |
| Functional Width (mm) | 32.00mm |
| Rake Radial Angle (Degree) | -6 Degree |
| Rake Radial Angle (Degree) | -6 Degree |
| Rake Orthogonal Angle (Degree) | -6 Degree |
| Axial Rake Angle (Degree) | -6 Degree |
| Cutting Direction | Left Hand |
| Insert Clamping System | D |
| Tool Cutting Edge Angle (Degree) | 93 Degree |
| Tool Cutting Edge Angle Code | J |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 122 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 93 Degree |
| Inclination Angle (Degree) | -6 Degree |
| Maximum Ramping Angle (Degree) | 30 Degree |
| Insert Shape Code | D |
| Shank Type | Square shank |

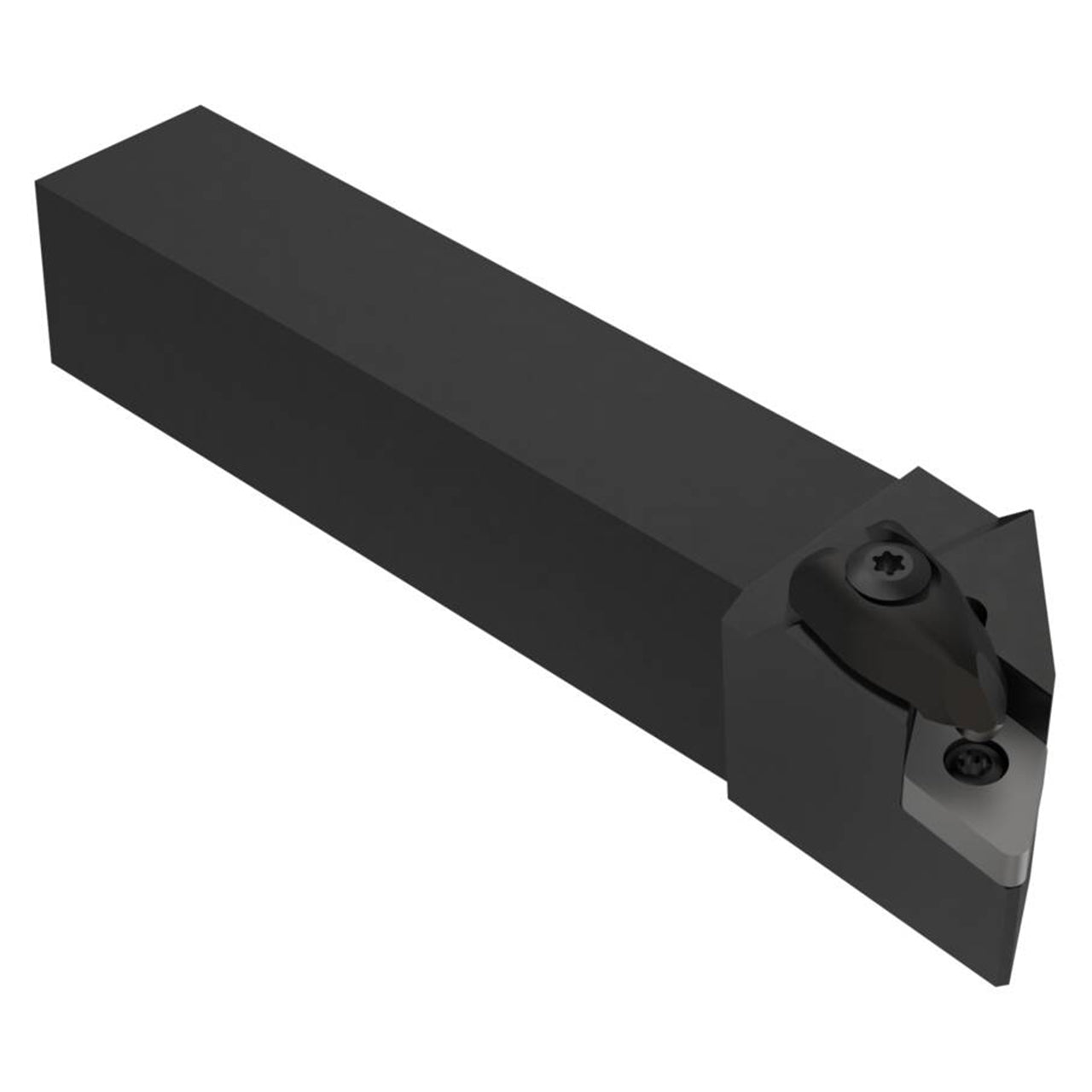

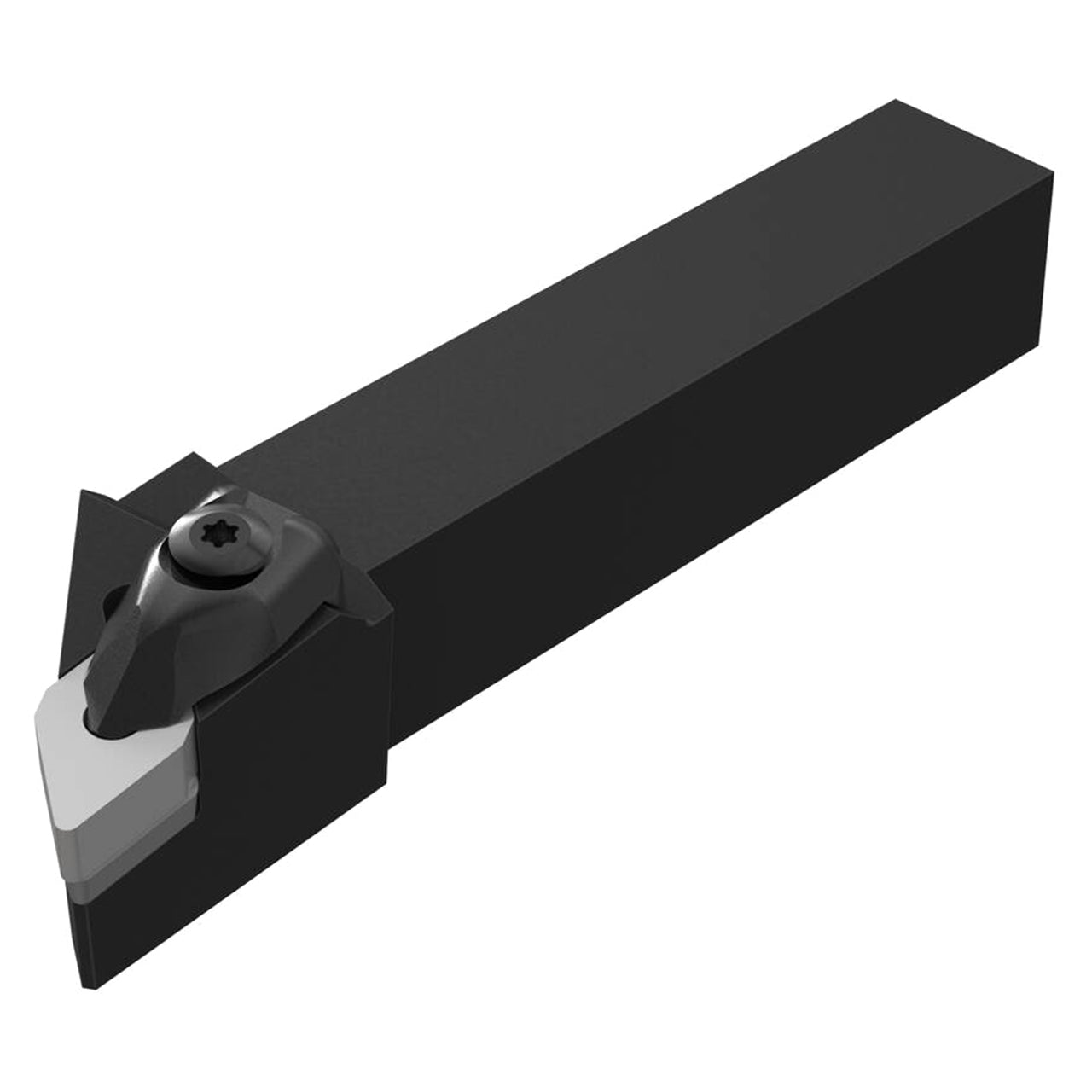

| Product Type | Indexable Turning Toolholder |
