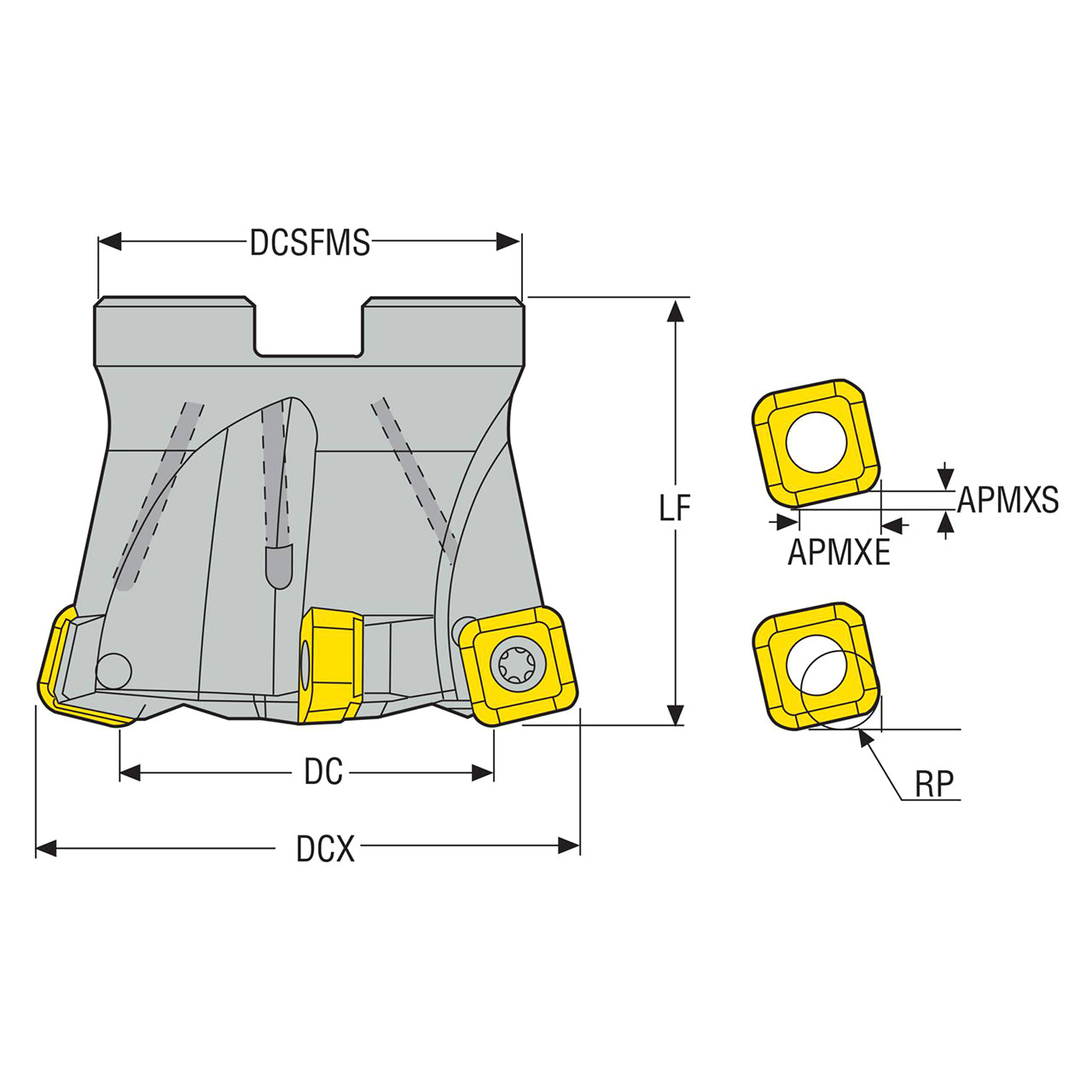

Product Specifications
| Manufacturer Part Number | 02585975 |
| Cutting Diameter (mm) | 141.00mm |
| Diameter Bolt Circle 1 (mm) | 66.70mm |
| Connection Bore Diameter (mm) | 40.00mm |
| Contact Surface Diameter Machine Side (mm) | 90.00mm |
| Maximum Cutting Diameter (mm) | 160.00mm |
| Functional Length (mm) | 63.00mm |
| Maximum Depth of Cut (mm) | 1.50mm |
| Depth of Key Way (mm) | 9.00mm |
| Keyway Width (mm) | 16.40mm |
| Programming Radius (mm) | 4.40mm |
| Uncut Thickness (mm) | 1.1 |
| Cutting Pitch Density | Normal |
| Rake Radial Angle (Degree) | -6 Degree |
| Rake Radial Angle (Degree) | -6 Degree |
| Rake Orthogonal Angle (Degree) | -6 Degree |
| Axial Rake Angle (Degree) | 2 Degree |
| Tool Cutting Edge Angle (Degree) | 12.5 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 12.5 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 12.5 Degree |
| Maximum Ramping Angle (Degree) | 0.7 Degree |
| Maximum Rotational Speed (rpm) | 6000 rpm |
| Insert Shape Code | S |
| Shank Type | Arbor |
| Product Type | High Feed Square Insert |
