Product Specifications
| Manufacturer Part Number | 02585973 |

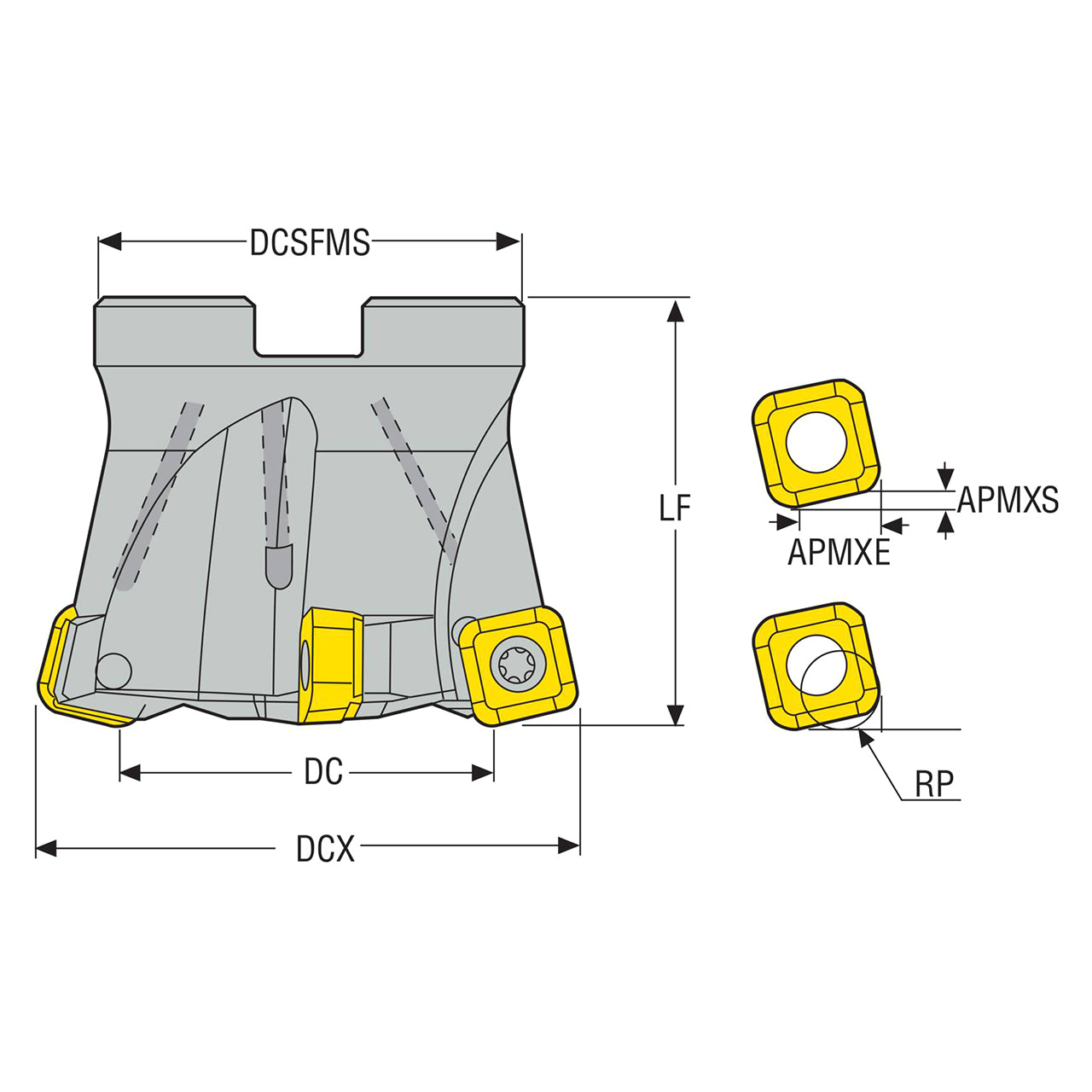

| Cutting Diameter (mm) | 81.00mm |
| Connection Bore Diameter (mm) | 32.00mm |
| Contact Surface Diameter Machine Side (mm) | 77.00mm |
| Maximum Cutting Diameter (mm) | 100.00mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 198.00mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 181.00mm |
| Functional Length (mm) | 50.00mm |
| Maximum Depth of Cut (mm) | 1.50mm |
| Depth of Key Way (mm) | 8.00mm |
| Keyway Width (mm) | 14.40mm |
| Programming Radius (mm) | 4.40mm |
| Uncut Thickness (mm) | 1.1 |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Coarse |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -6 Degree |
| Rake Radial Angle (Degree) | -6 Degree |
| Rake Orthogonal Angle (Degree) | -6 Degree |
| Axial Rake Angle (Degree) | 2 Degree |
| Tool Cutting Edge Angle (Degree) | 12.5 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 12.5 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 12.5 Degree |
| Maximum Ramping Angle (Degree) | 0.75 Degree |
| Maximum Rotational Speed (rpm) | 7600 rpm |
| Insert Shape Code | S |
| Shank Type | Arbor |

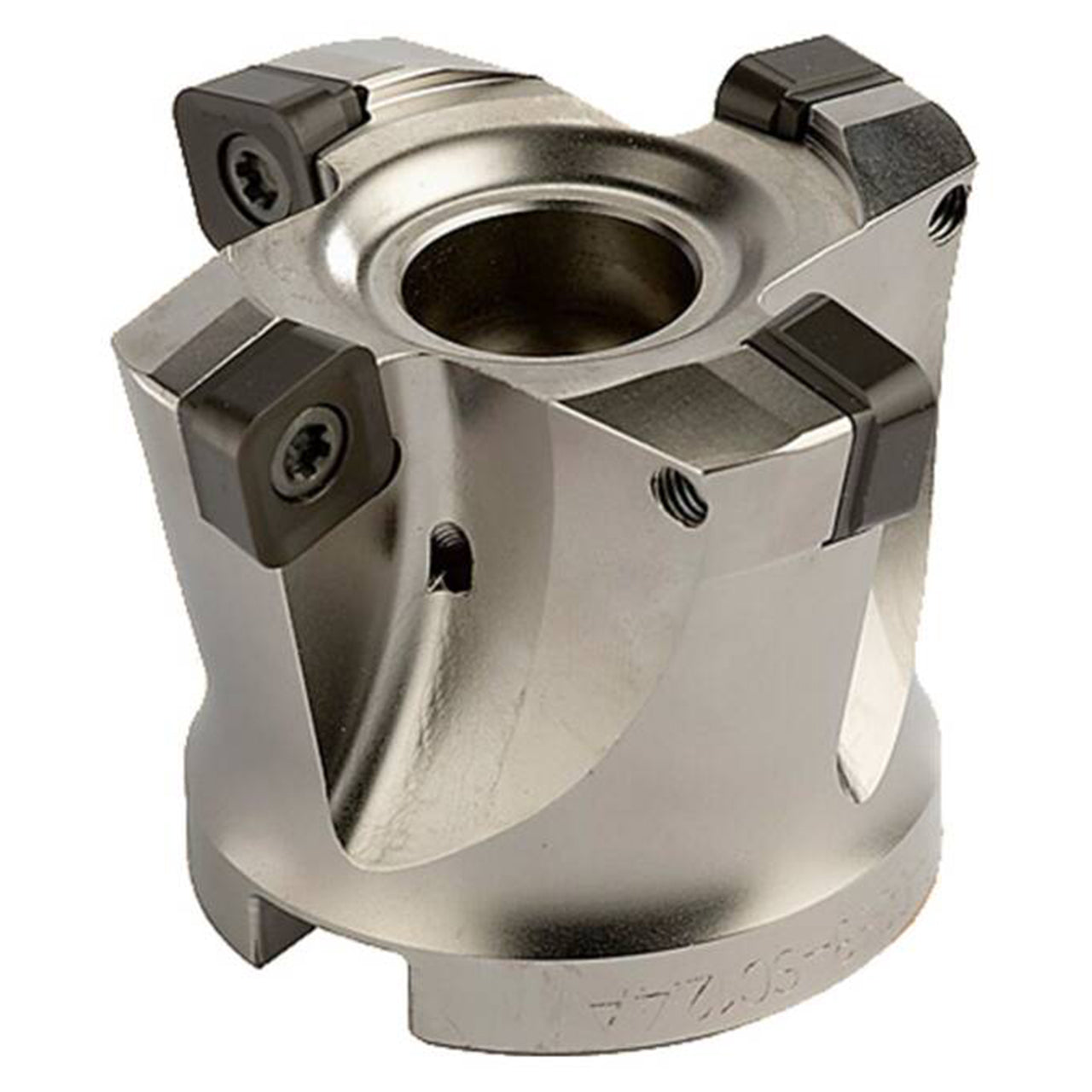

| Product Type | High Feed Square Insert |
