Product Specifications

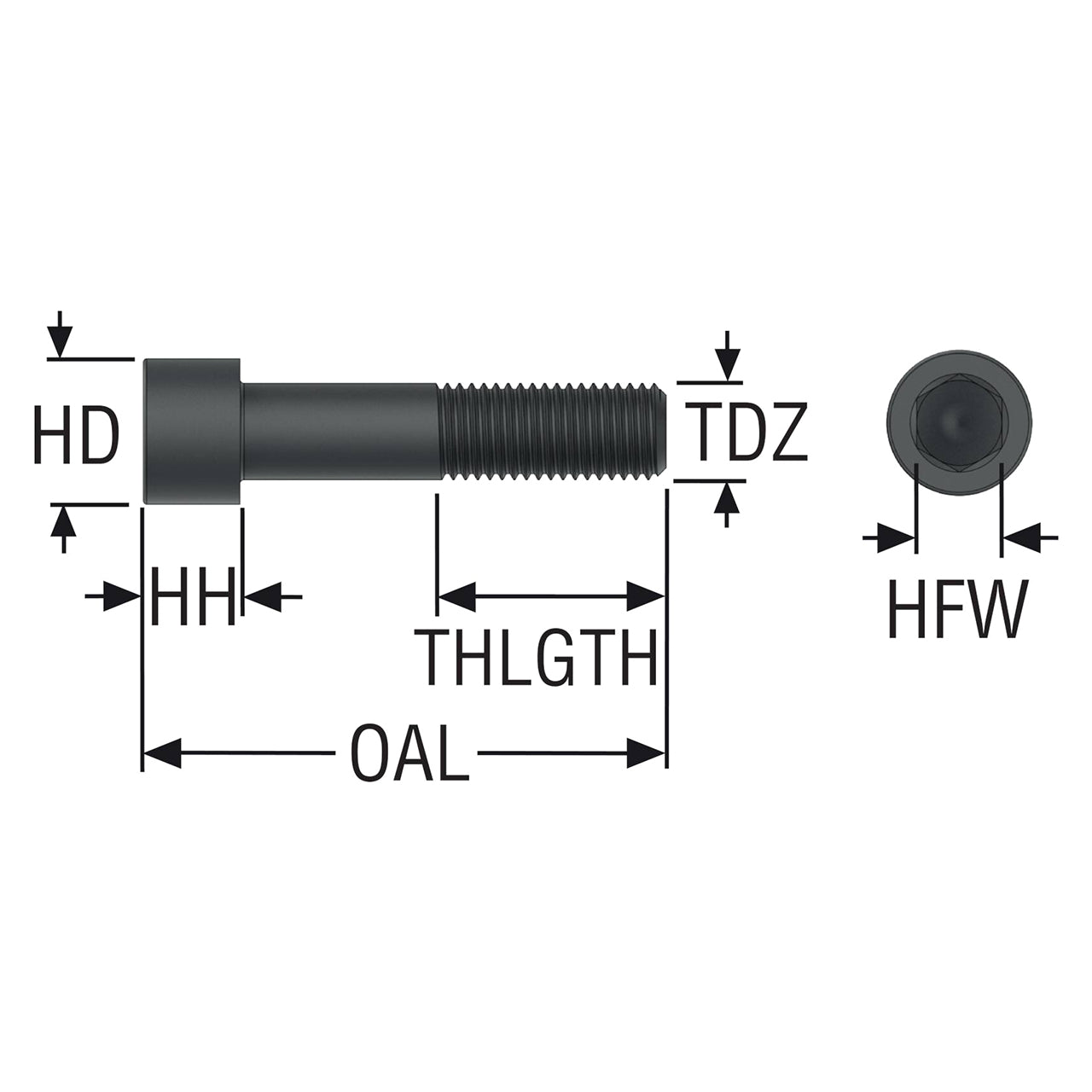

| Manufacturer Part Number | 02568696 |
| Head Diameter (Decimal Inch) | 1.575" |
| Head Diameter (mm) | 40.00mm |
| Thread Diameter Size | M20 |
| Head Height (Decimal Inch) | 0.650" |
| Head Height (mm) | 16.50mm |
| Overall Length (Decimal Inch) | 3.740" |
| Overall Length (mm) | 95.00mm |
| Torque (Nm) | 120Nm |
| Thread Length (Decimal Inch) | 1.9685 |
| Thread Length (mm) | 50.0 |

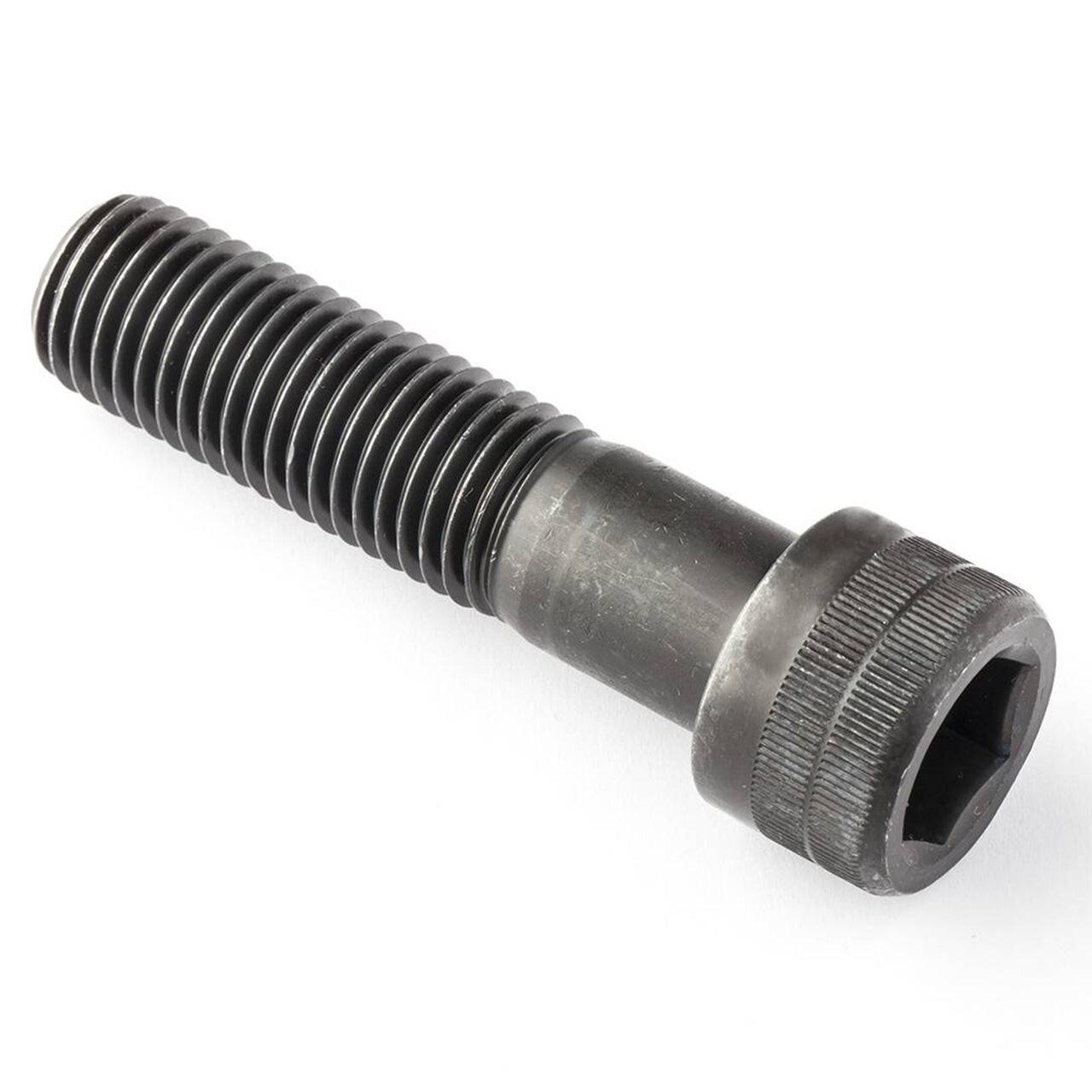

| Product Type | Socket Cap Screw |
