Product Specifications
| Manufacturer Part Number | 02566034 |
| Inscribed Circle Diameter (Decimal Inch) | 0.713" |
| Inscribed Circle Diameter (mm) | 18.12mm |
| Wiper Edge Length (Decimal Inch) | 0.260" |
| Wiper Edge Length (mm) | 6.60mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.291" |
| Cutting Edge Effective Length (mm) | 7.40mm |
| Corner Radius (Decimal Inch) | 0.020" |
| Corner Radius (mm) | 0.50mm |
| Insert Thickness (Decimal Inch) | 0.187" |
| Insert Thickness (mm) | 4.74mm |
| Clearance Angle Major (Degree) | 26 Degree |
| Cutting Edge Count | 4 |
| Cutting Geometry Type Technical | M16 |
| Pocket Seat Code of The Cutter | OF..0704 |
| Insert Size And Shape | OFEN0704Z |
| Insert Hand | Right Hand |
| Material | Carbide |

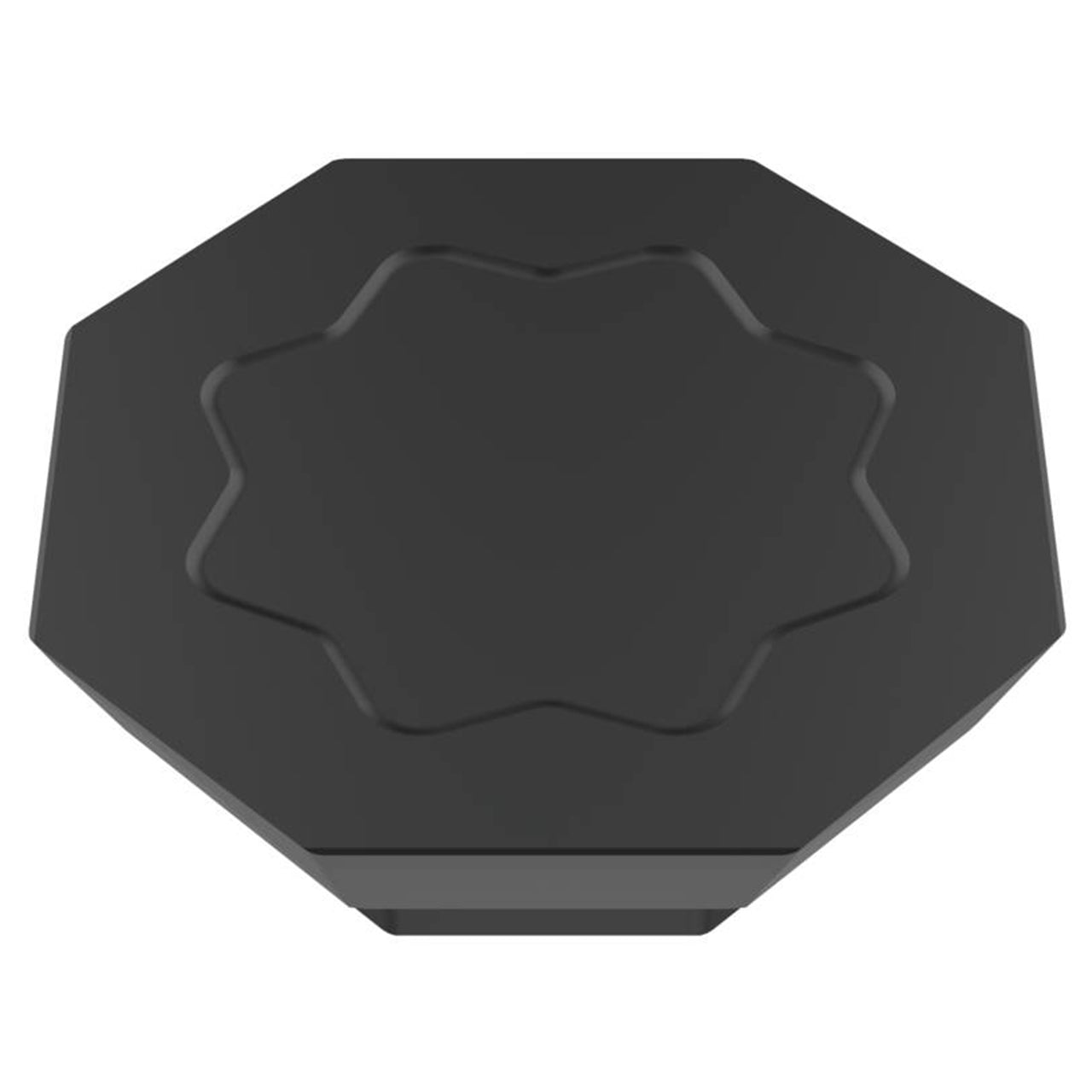

| Product Type | Octomill Insert |
