Product Specifications
| Manufacturer Part Number | 02565481 |
| Minimum Cutting Diameter Internal (Decimal Inch) | 17.717" |
| Minimum Cutting Diameter Internal (mm) | 450.00mm |
| Minimum Cutting Diameter Internal 3 (Decimal Inch) | 7.874" |
| Minimum Cutting Diameter Internal 3 (mm) | 200.00mm |
| Functional Length (Decimal Inch) | 6.000" |
| Functional Length (mm) | 152.40mm |
| Head Length (Decimal Inch) | 1.535" |
| Head Length (mm) | 39.00mm |
| Shank Length (Decimal Inch) | 4.472" |
| Shank Length (mm) | 113.60mm |
| Shank Width (Decimal Inch) | 0.315" |
| Shank Width (mm) | 8.00mm |
| Maximum Radial Cutting Depth (Decimal Inch) | 0.058" |
| Maximum Radial Cutting Depth (mm) | 1.46mm |
| Maximum Cutting Depth (Decimal Inch) | 0.039" |
| Maximum Cutting Depth (mm) | 1.00mm |
| Height of Tool Holder Shank (Decimal Inch) | 0.315" |
| Height of Tool Holder Shank (mm) | 8.00mm |
| Functional Height (Decimal Inch) | 1.248" |
| Functional Height (mm) | 31.70mm |
| Functional Width (Decimal Inch) | 1.250" |
| Functional Width (mm) | 31.75mm |
| Rake Radial Angle (Degree) | -6 Degree |
| Rake Radial Angle (Degree) | -6 Degree |
| Rake Orthogonal Angle (Degree) | -6 Degree |
| Axial Rake Angle (Degree) | -6 Degree |
| Cutting Direction | Right Hand |
| Insert Clamping System | D |
| Tool Cutting Edge Angle (Degree) | 75 Degree |
| Tool Cutting Edge Angle Code | K |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 75 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 95 Degree |
| Inclination Angle (Degree) | -6 Degree |
| Insert Shape Code | C |
| Shank Type | Square shank |

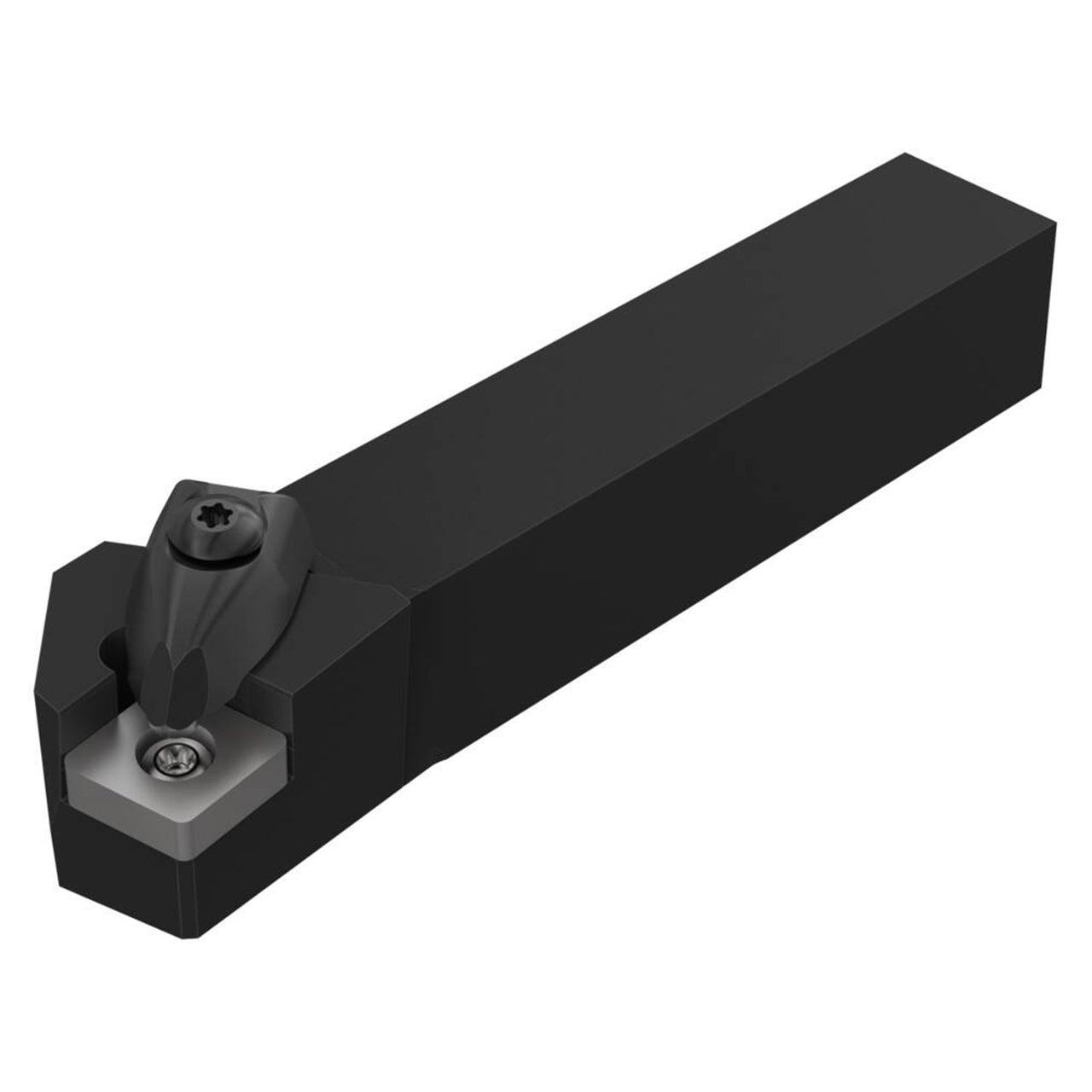

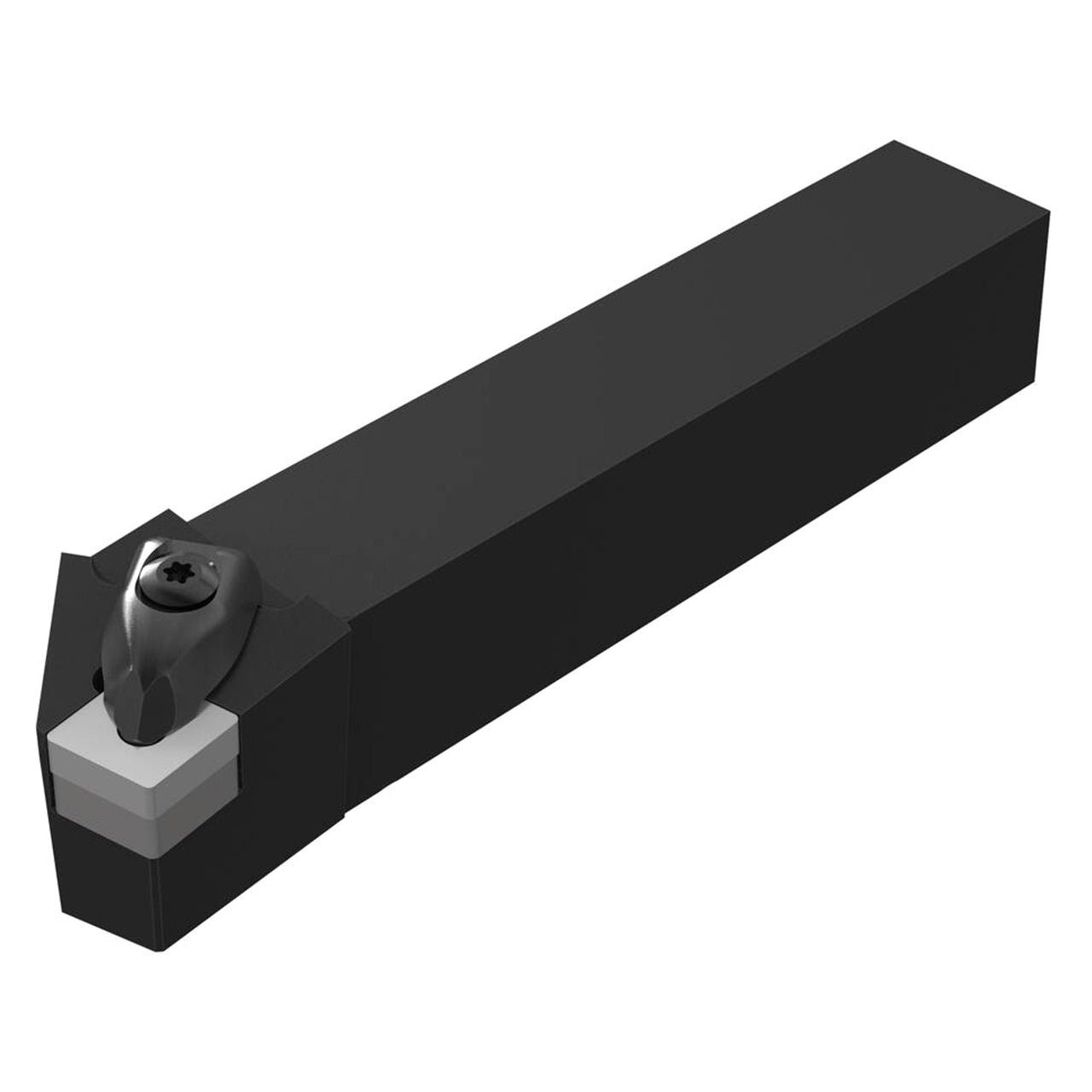

| Product Type | Indexable Turning Toolholder |
