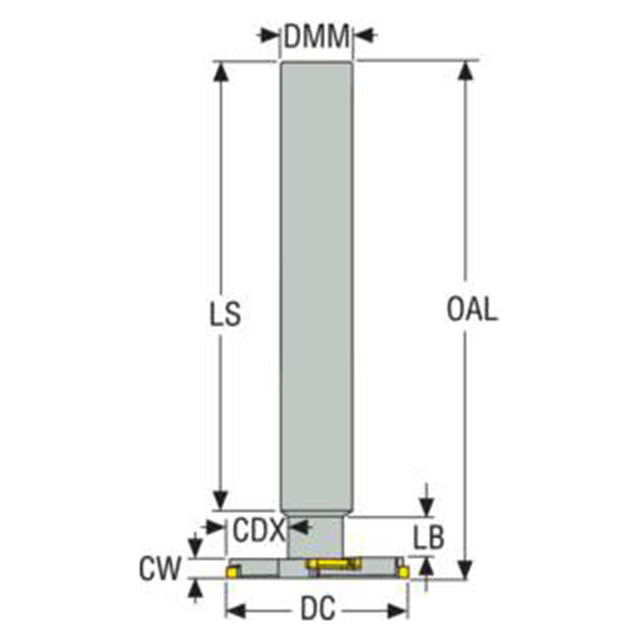

Product Specifications
| Manufacturer Part Number | 02565043 |
| Cutting Diameter (mm) | 80.00mm |
| Connection Diameter Machine Side (mm) | 32.00mm |
| Shank Diameter (mm) | 32.00mm |
| Protruding Length (mm) | 110.00mm |
| Shank Length (mm) | 148.60mm |
| Overall Length (mm) | 170.00mm |
| Cutting Width (mm) | 6.00mm |
| Maximum Depth of Cut (mm) | 6.00mm |
| Maximum Cutting Depth (mm) | 22.50mm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Rake Radial Angle (Degree) | -15 Degree |
| Cutting Direction | Right Hand |
| Maximum Rotational Speed (rpm) | 9700 rpm |
| Cutting Pitch Density | Normal |
| Pocket Seat Code of The Cutter | 335.19-1203 |
| Cutting Item Material Type | Steel |
| Shank Type | Cylindrical |
| Product Type | Indexable Slotting Cutter |
