Product Specifications
| Manufacturer Part Number | 02563563 |
| Minimum Cutting Diameter Internal (Decimal Inch) | 2.300" |
| Minimum Cutting Diameter Internal (mm) | 58.42mm |
| Minimum Cutting Diameter Internal 2 (Decimal Inch) | 1.800" |
| Minimum Cutting Diameter Internal 2 (mm) | 45.72mm |
| Connection Diameter Machine Side (Decimal Inch) | 1.750" |
| Connection Diameter Machine Side (mm) | 44.45mm |
| Shank Diameter (Decimal Inch) | 1.750" |
| Shank Diameter (mm) | 44.45mm |
| Functional Length (Decimal Inch) | 13.976" |
| Functional Length (mm) | 355.00mm |
| Head Length (Decimal Inch) | 2.284" |
| Head Length (mm) | 58.00mm |
| Height of Tool Holder Shank (Decimal Inch) | 1.591" |
| Height of Tool Holder Shank (mm) | 40.40mm |
| Shank Type | Cylindrical |
| Coolant Supply Property | 1 |
| Cutting Direction | Left Hand |
| Insert Clamping System | C |

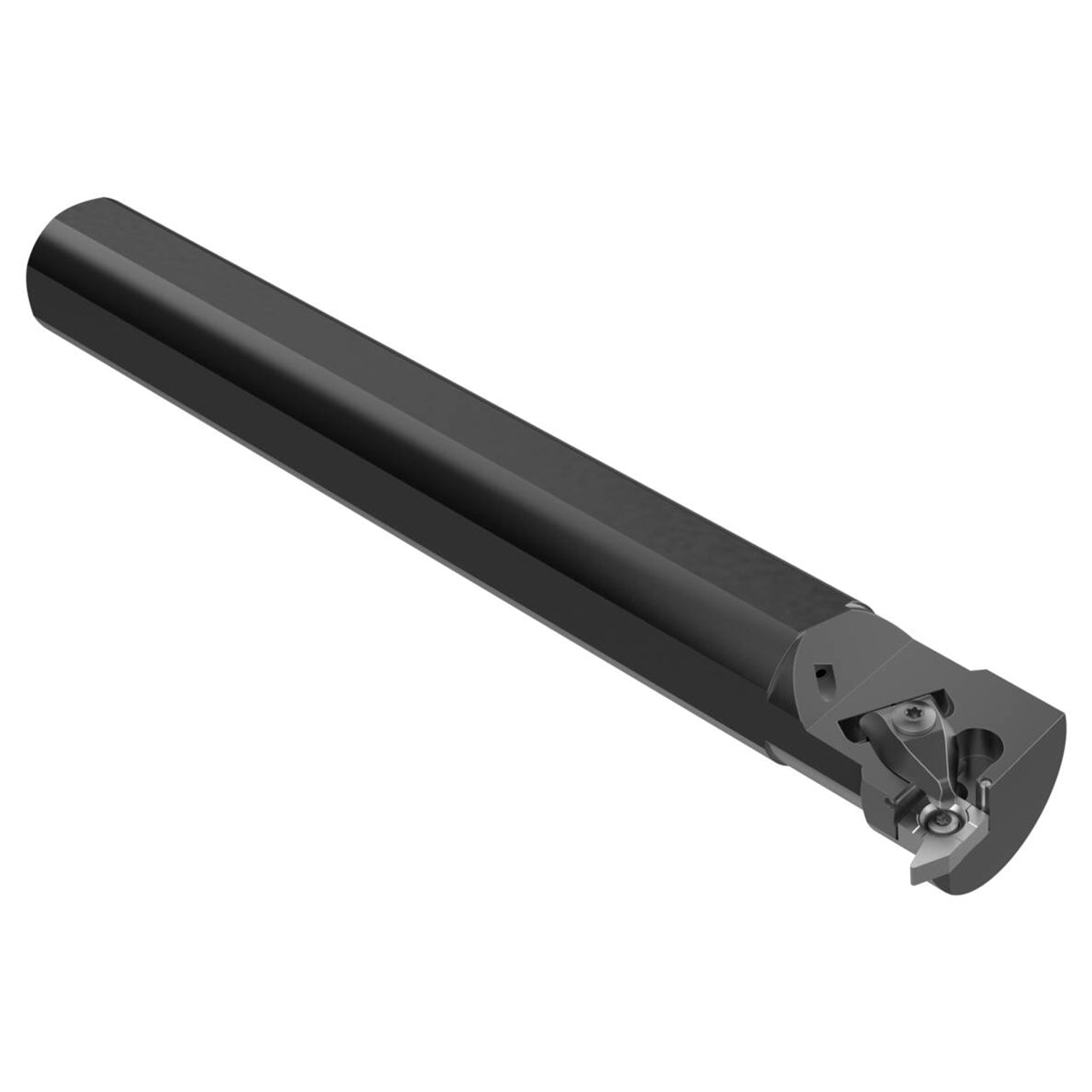

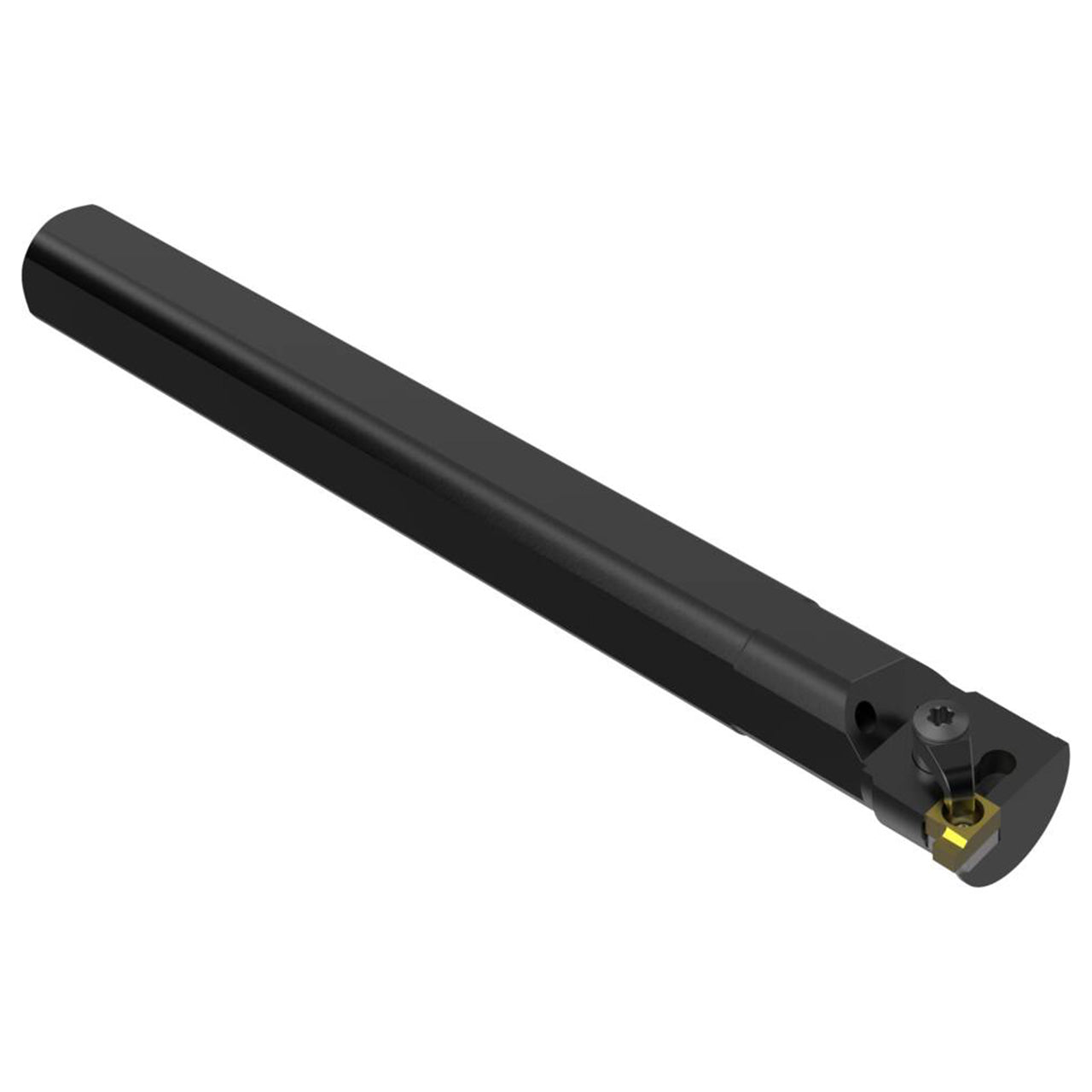

| Product Type | Indexable Threading Toolholder |
