Product Specifications
| Manufacturer Part Number | 02555743 |
| Body Diameter (Decimal Inch) | 1.260" |
| Body Diameter (mm) | 32.00mm |
| Minimum Cutting Diameter Internal (Decimal Inch) | 1.496" |
| Minimum Cutting Diameter Internal (mm) | 38.00mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.969" |
| Contact Surface Diameter Machine Side (mm) | 50.00mm |
| Functional Length (Decimal Inch) | 3.543" |
| Functional Length (mm) | 90.00mm |
| Usable Length (Decimal Inch) | 2.677" |
| Usable Length (mm) | 68.00mm |
| Functional Width (Decimal Inch) | 0.839" |
| Functional Width (mm) | 21.30mm |
| Coolant Supply Property | 1 |
| Cutting Direction | Right Hand |
| Insert Clamping System | C |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Shank Type | Seco-Capto |

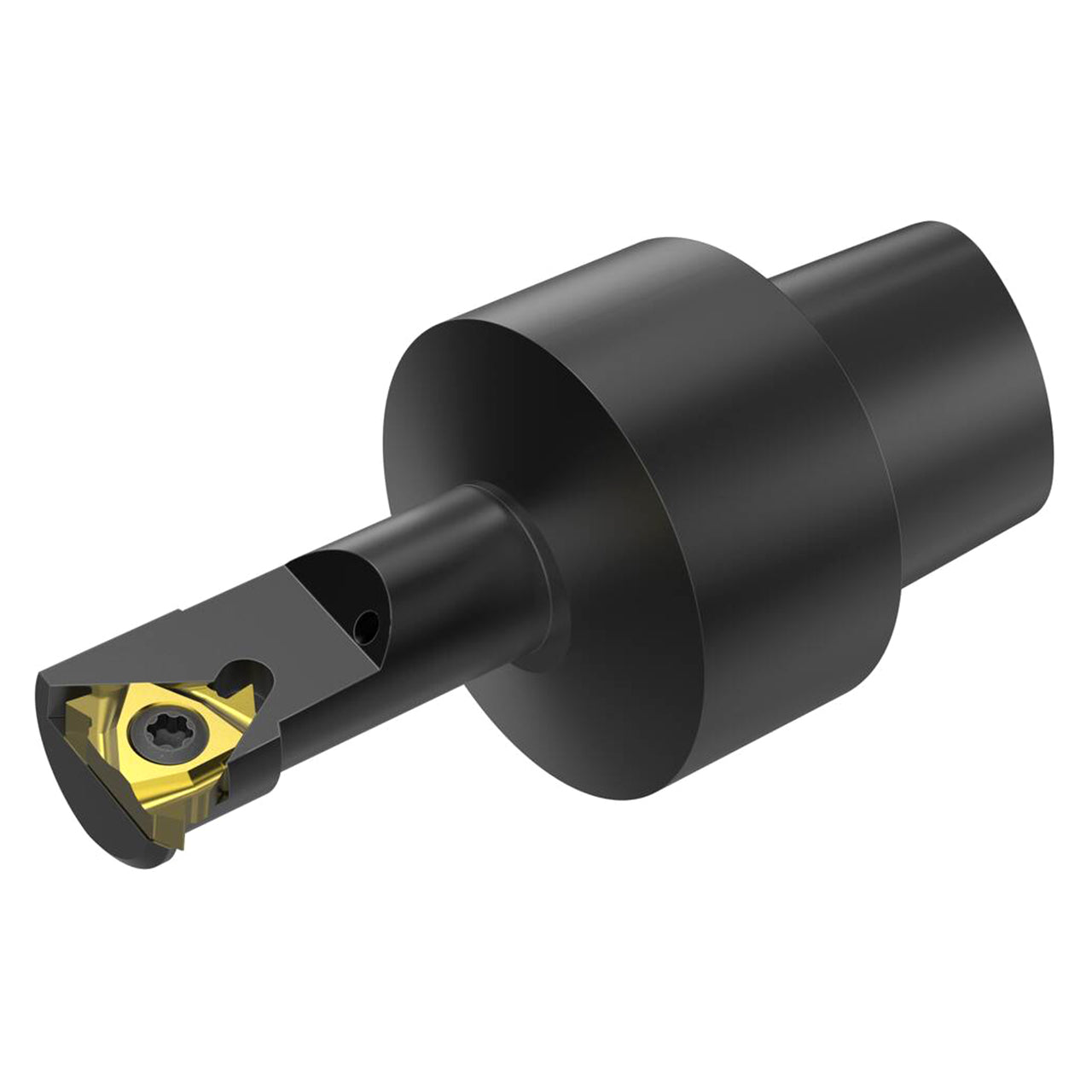

| Product Type | Indexable Threading Toolholder |
