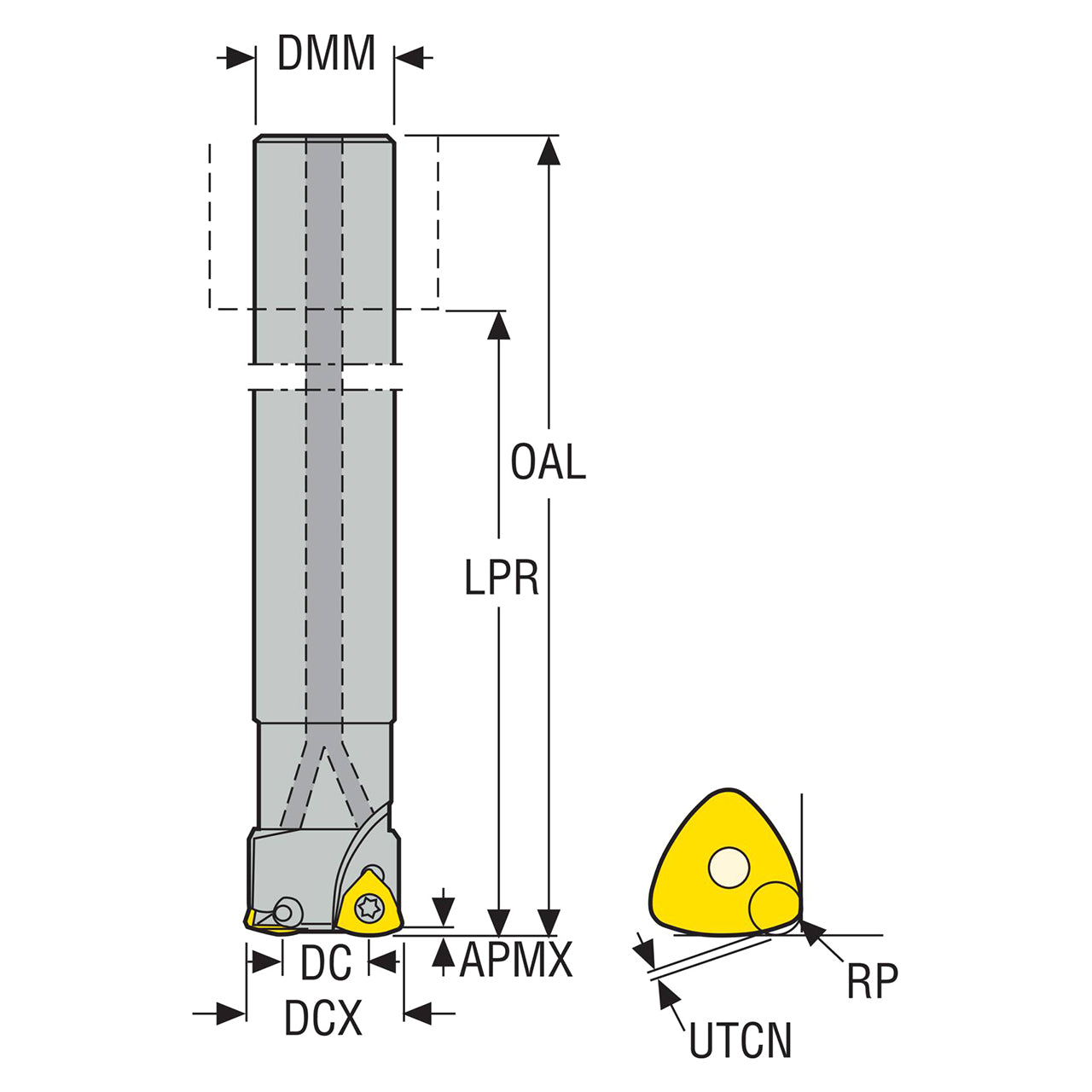

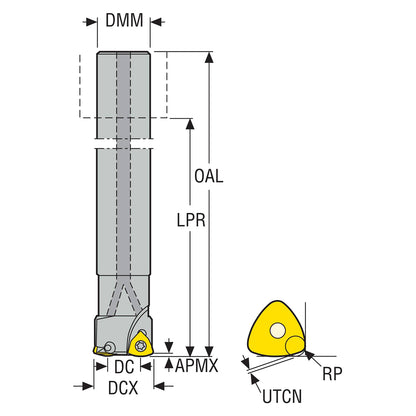

Product Specifications
| Manufacturer Part Number | 02553733 |
| Cutting Diameter (Decimal Inch) | 0.591" |
| Cutting Diameter (mm) | 15.01mm |
| Connection Diameter Machine Side (Decimal Inch) | 1.500" |
| Connection Diameter Machine Side (mm) | 38.10mm |
| Maximum Cutting Diameter (Decimal Inch) | 1.500" |
| Maximum Cutting Diameter (mm) | 38.10mm |
| Shank Diameter (Decimal Inch) | 1.500" |
| Shank Diameter (mm) | 38.10mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 2.921" |
| Maximum Helical Interpolation Hole Diameter (mm) | 74.20mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 2.091" |
| Minimum Helical Interpolation Hole Diameter (mm) | 53.11mm |
| Protruding Length (Decimal Inch) | 5.310" |
| Protruding Length (mm) | 134.87mm |
| Shank Length (Decimal Inch) | 5.906" |
| Shank Length (mm) | 150.00mm |
| Overall Length (Decimal Inch) | 8.000" |
| Overall Length (mm) | 203.20mm |
| Maximum Depth of Cut (mm) | 2.02mm |
| Maximum Depth of Cut (Decimal Inch) | 0.080" |
| Programming Radius (Decimal Inch) | 0.121" |
| Programming Radius (mm) | 3.06mm |
| Uncut Thickness (Decimal Inch) | 0.0413 |
| Uncut Thickness (mm) | 1.05 |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -5 Degree |
| Rake Radial Angle (Degree) | -5 Degree |
| Rake Orthogonal Angle (Degree) | -5 Degree |
| Axial Rake Angle (Degree) | 6 Degree |
| Maximum Ramping Angle (Degree) | 39 Degree |
| Maximum Rotational Speed (rpm) | 17600 rpm |
| Insert Shape Code | 218.19 |
| Shank Type | Cylindrical |

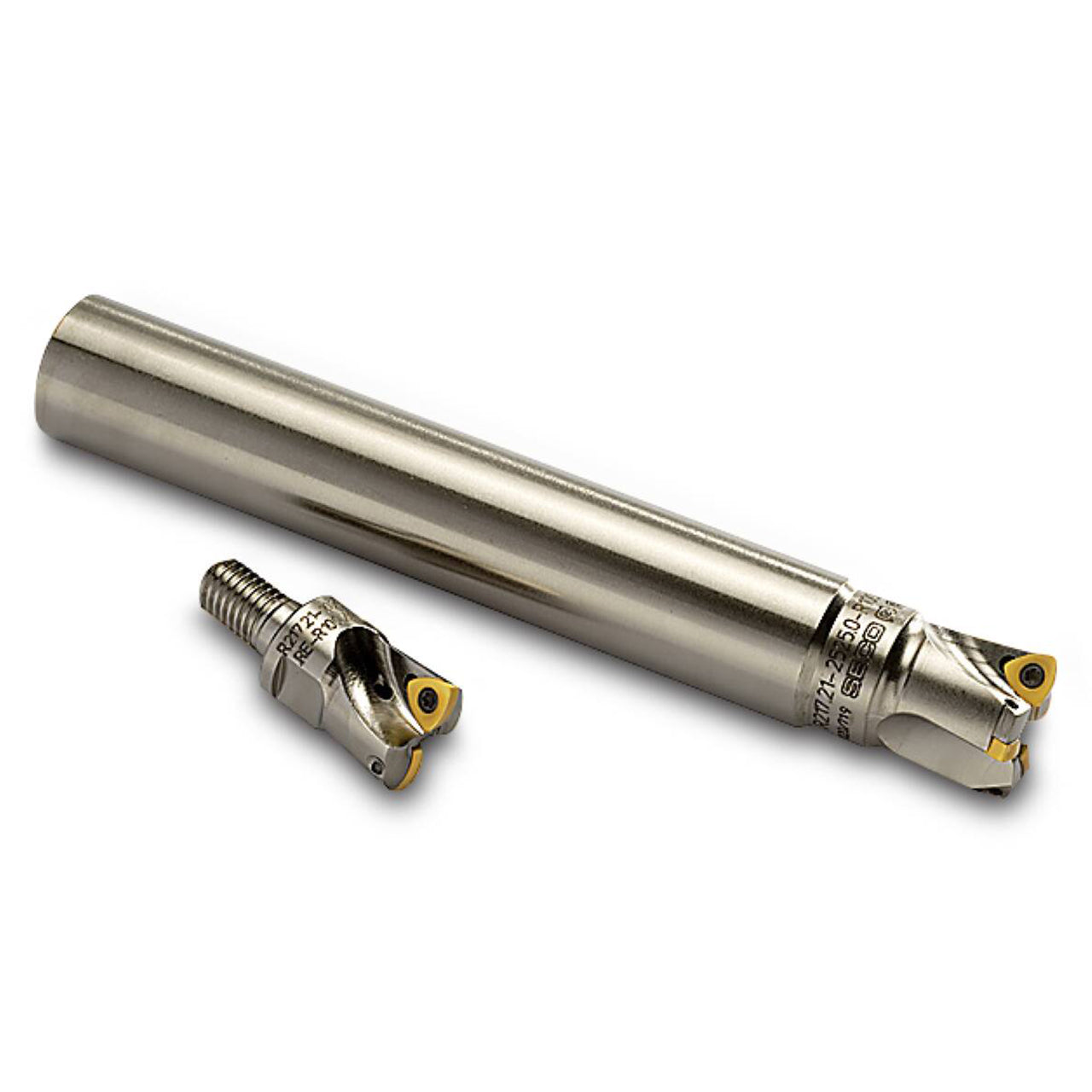

| Product Type | High Feed Trigon Shape Insert |
