Product Specifications
| Manufacturer Part Number | 02549210 |
| Body Diameter (Decimal Inch) | 0.532" |
| Body Diameter (mm) | 13.50mm |
| Body Diameter 1 (Decimal Inch) | 0.571" |
| Body Diameter 1 (mm) | 14.50mm |
| Body Length (Decimal Inch) | 4.134" |
| Body Length (mm) | 105.00mm |
| Body Length 2 (Decimal Inch) | 1.969" |
| Body Length 2 (mm) | 50.00mm |
| Functional Length (Decimal Inch) | 4.134" |
| Functional Length (mm) | 105.00mm |
| Protruding Length (Decimal Inch) | 4.134" |
| Protruding Length (mm) | 105.00mm |
| Overall Length (Decimal Inch) | 6.024" |
| Overall Length (mm) | 153.00mm |

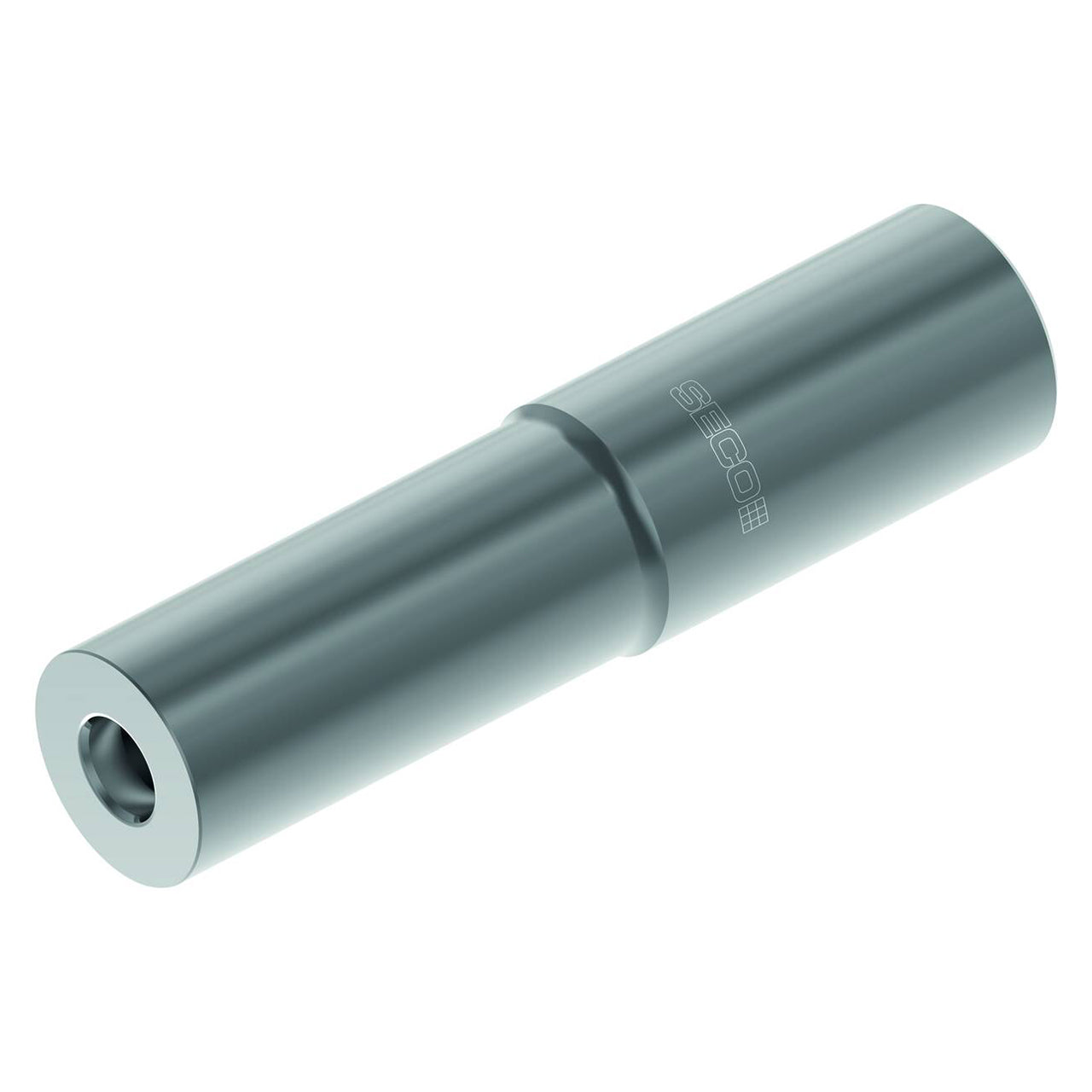

| Product Type | Shrink-Fit Tool Holder |
