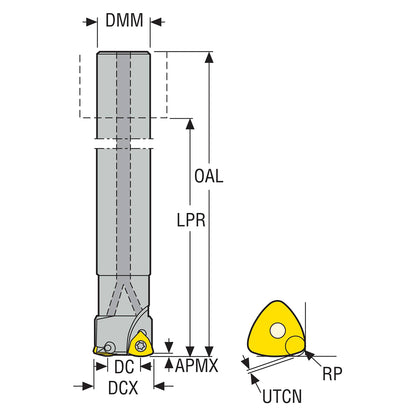

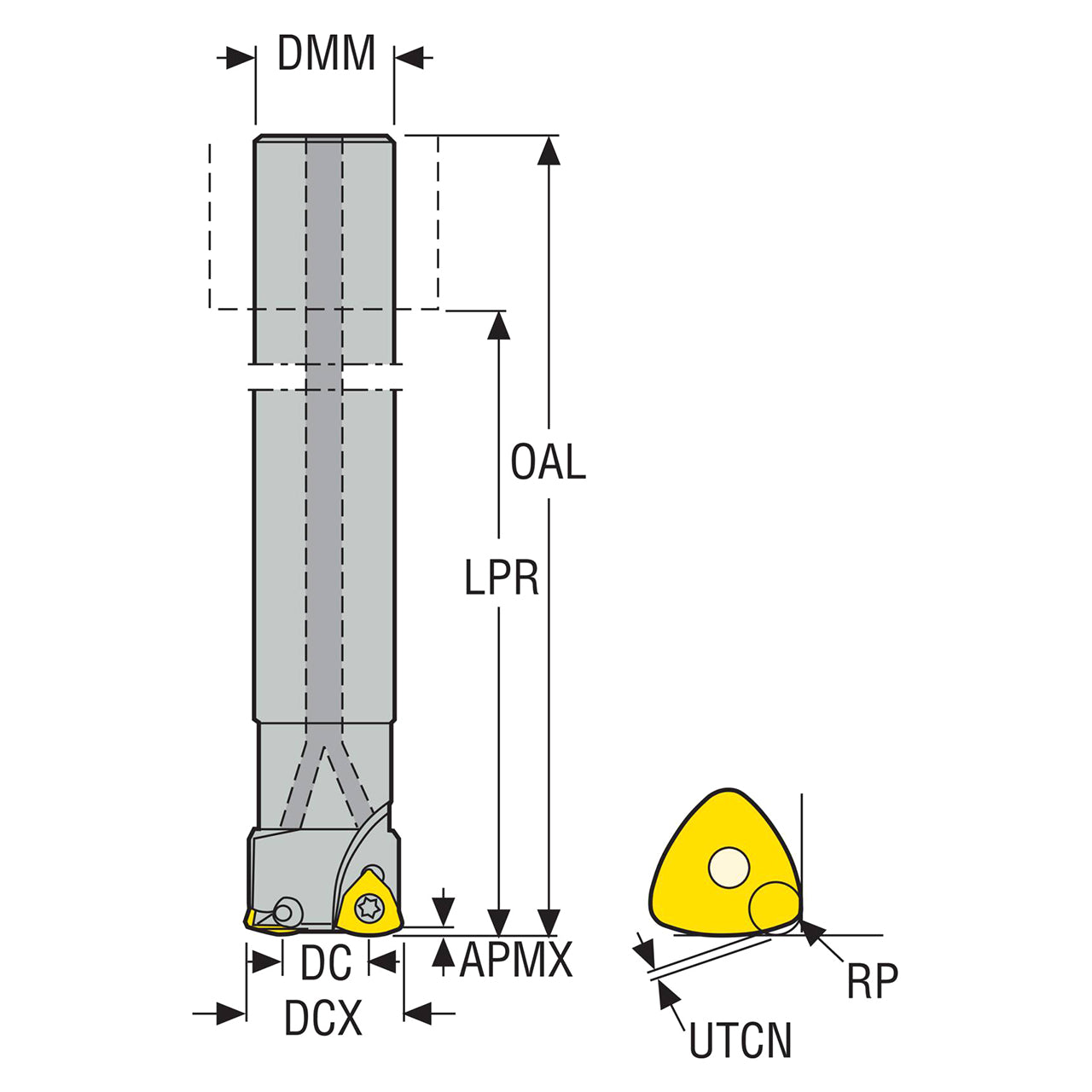

Product Specifications
| Manufacturer Part Number | 02548132 |
| Cutting Diameter (Decimal Inch) | 0.357" |
| Cutting Diameter (mm) | 9.07mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.750" |
| Connection Diameter Machine Side (mm) | 19.05mm |
| Maximum Cutting Diameter (Decimal Inch) | 0.750" |
| Maximum Cutting Diameter (mm) | 19.05mm |
| Shank Diameter (Decimal Inch) | 0.750" |
| Shank Diameter (mm) | 19.05mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 1.421" |
| Maximum Helical Interpolation Hole Diameter (mm) | 36.10mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 1.107" |
| Minimum Helical Interpolation Hole Diameter (mm) | 28.12mm |
| Protruding Length (Decimal Inch) | 4.000" |
| Protruding Length (mm) | 101.60mm |
| Shank Length (Decimal Inch) | 5.250" |
| Shank Length (mm) | 133.35mm |
| Overall Length (Decimal Inch) | 6.500" |
| Overall Length (mm) | 165.10mm |
| Maximum Depth of Cut (mm) | 1.10mm |
| Maximum Depth of Cut (Decimal Inch) | 0.043" |
| Programming Radius (Decimal Inch) | 0.071" |
| Programming Radius (mm) | 1.80mm |
| Uncut Thickness (Decimal Inch) | 0.024 |
| Uncut Thickness (mm) | 0.61 |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -3 Degree |
| Rake Radial Angle (Degree) | -3 Degree |
| Rake Orthogonal Angle (Degree) | -3 Degree |
| Axial Rake Angle (Degree) | 6 Degree |
| Maximum Ramping Angle (Degree) | 4.5 Degree |
| Maximum Rotational Speed (rpm) | 32600 rpm |
| Insert Shape Code | 218.19 |
| Shank Type | Cylindrical |
| Product Type | High Feed Trigon Shape Insert |
