Product Specifications
| Manufacturer Part Number | 02548130 |

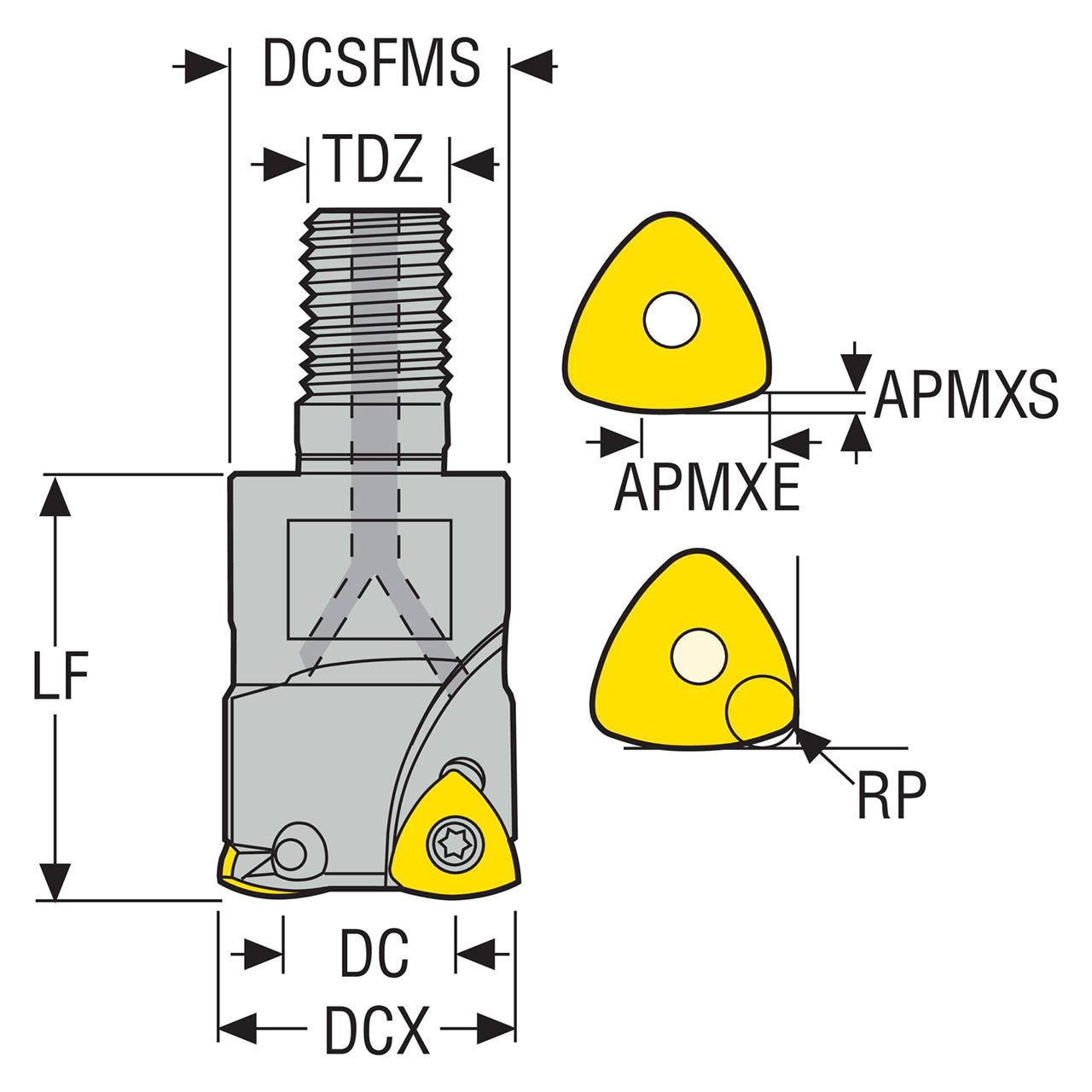

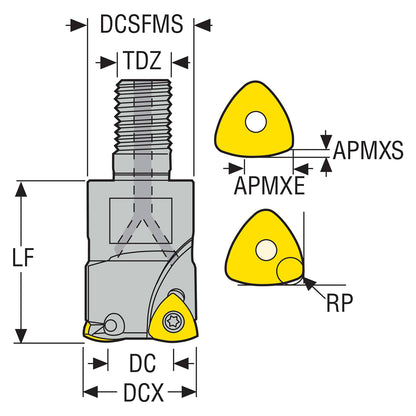

| Cutting Diameter (Decimal Inch) | 0.791" |
| Cutting Diameter (mm) | 20.10mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.181" |
| Contact Surface Diameter Machine Side (mm) | 30.00mm |
| Maximum Cutting Diameter (Decimal Inch) | 1.498" |
| Maximum Cutting Diameter (mm) | 38.05mm |
| Thread Diameter Size | M16 |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 2.917" |
| Maximum Helical Interpolation Hole Diameter (mm) | 74.10mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 2.289" |
| Minimum Helical Interpolation Hole Diameter (mm) | 58.15mm |
| Functional Length (Decimal Inch) | 1.600" |
| Functional Length (mm) | 40.64mm |
| Overall Length (Decimal Inch) | 2.496" |
| Overall Length (mm) | 63.39mm |
| Maximum Depth of Cut (mm) | 2.00mm |
| Maximum Depth of Cut (Decimal Inch) | 0.079" |
| Connection Mounting Torque (Nm) | 80.0 Nm |
| Programming Radius (Decimal Inch) | 0.121" |
| Programming Radius (mm) | 3.07mm |
| Uncut Thickness (Decimal Inch) | 0.0409 |
| Uncut Thickness (mm) | 1.04 |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -5 Degree |
| Rake Radial Angle (Degree) | -5 Degree |
| Rake Orthogonal Angle (Degree) | -5 Degree |
| Axial Rake Angle (Degree) | 6 Degree |
| Maximum Ramping Angle (Degree) | 1.96 Degree |
| Maximum Rotational Speed (rpm) | 14500 rpm |
| Insert Shape Code | 218.19 |
| Shank Type | Combimaster |

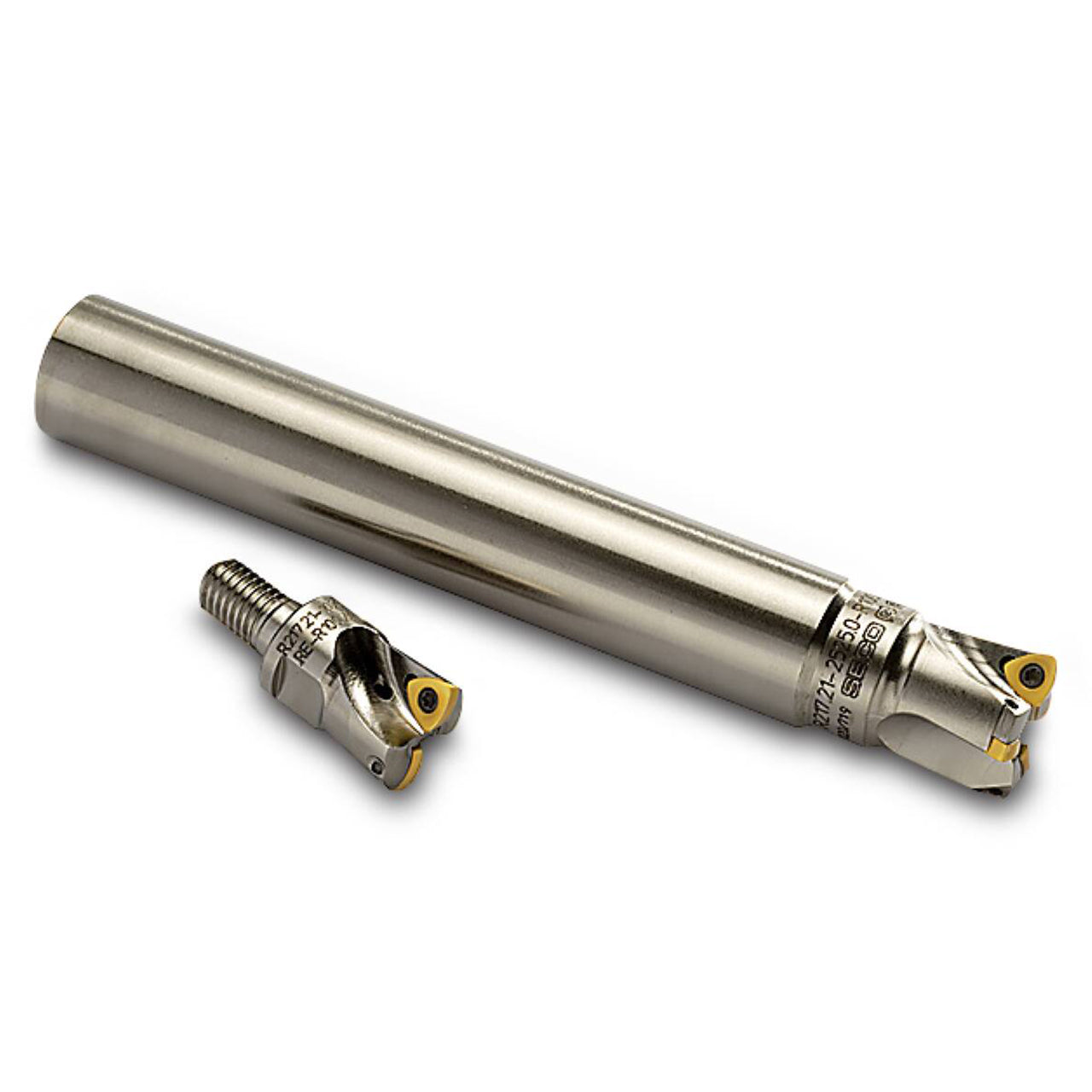

| Product Type | Indexable High-Feed End Mill |
