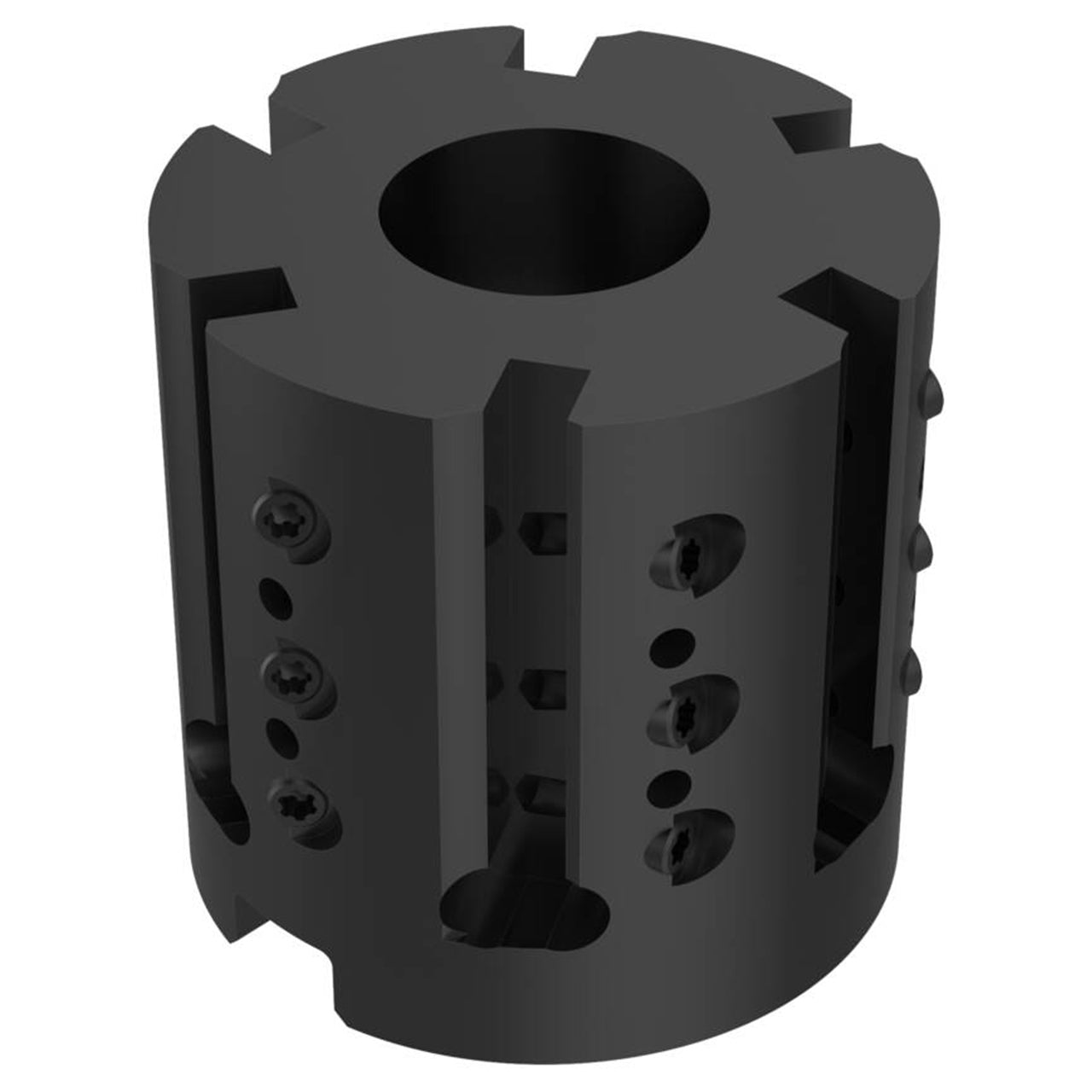

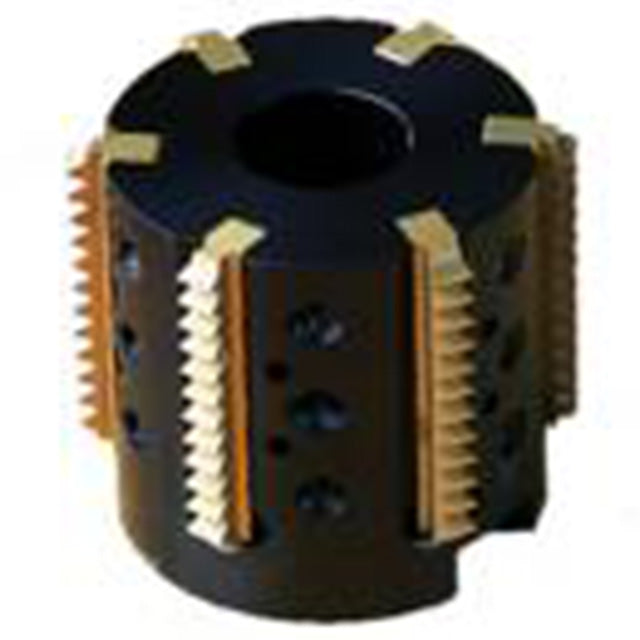

Product Specifications
| Manufacturer Part Number | 02546956 |
| Cutting Diameter (Decimal Inch) | 2.284" |
| Cutting Diameter (mm) | 58.00mm |
| Connection Bore Diameter (Decimal Inch) | 1.000" |
| Connection Bore Diameter (mm) | 25.40mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.969" |
| Contact Surface Diameter Machine Side (mm) | 50.00mm |
| Body Diameter (Decimal Inch) | 1.969" |
| Body Diameter (mm) | 50.00mm |
| Functional Length (Decimal Inch) | 1.969" |
| Functional Length (mm) | 50.00mm |
| Insert Width (Decimal Inch) | 0.323" |
| Insert Width (mm) | 8.20mm |
| Maximum Depth of Cut (Decimal Inch) | 1.575" |
| Maximum Depth of Cut (mm) | 40.00mm |
| Depth of Key Way (Decimal Inch) | 0.224" |
| Depth of Key Way (mm) | 5.70mm |
| Shank Type | Arbor |
| Rake Radial Angle (Degree) | -15 Degree |
| Rake Orthogonal Angle (Degree) | -15 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Number of Flute | 6 |
| Product Type | Indexable Thread Mill |
