Product Specifications
| Manufacturer Part Number | 02546947 |
| Cutting Diameter (Decimal Inch) | 1.417" |
| Cutting Diameter (mm) | 36.00mm |
| Connection Diameter Machine Side (Decimal Inch) | 1.250" |
| Connection Diameter Machine Side (mm) | 31.75mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.969" |
| Contact Surface Diameter Machine Side (mm) | 50.00mm |
| Shank Diameter (Decimal Inch) | 1.250" |
| Shank Diameter (mm) | 31.75mm |
| Body Diameter (Decimal Inch) | 1.142" |
| Body Diameter (mm) | 29.00mm |
| Shank Length (Decimal Inch) | 2.343" |
| Shank Length (mm) | 59.50mm |
| Overall Length (Decimal Inch) | 4.705" |
| Overall Length (mm) | 119.50mm |
| Protruding Length (Decimal Inch) | 2.362" |
| Protruding Length (mm) | 60.00mm |
| Corner Chamfer Width (Decimal Inch) | 0.039" |
| Corner Chamfer Width (mm) | 1.00mm |
| Maximum Depth of Cut (Decimal Inch) | 1.575" |
| Maximum Depth of Cut (mm) | 40.00mm |
| Shank Type | Seco Weldon |
| Rake Radial Angle (Degree) | -15 Degree |
| Rake Orthogonal Angle (Degree) | -15 Degree |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Number of Flute | 6 |

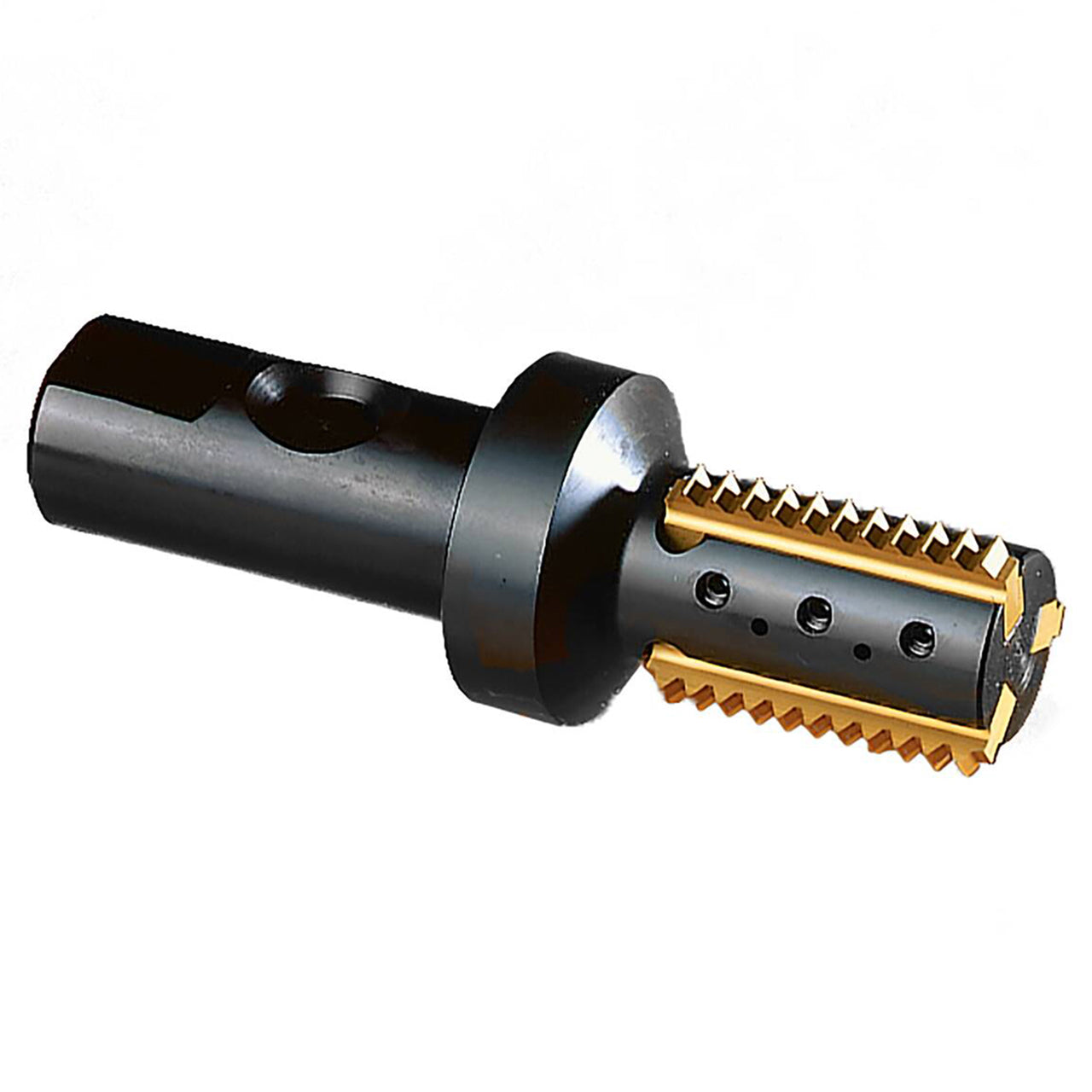

| Product Type | Indexable Thread Mill |
