Product Specifications
| Manufacturer Part Number | 02546921 |
| Cutting Diameter (mm) | 58.00mm |
| Connection Bore Diameter (mm) | 27.00mm |
| Contact Surface Diameter Machine Side (mm) | 53.00mm |
| Body Diameter (mm) | 53.00mm |
| Functional Length (mm) | 50.00mm |
| Maximum Depth of Cut (mm) | 40.00mm |
| Depth of Key Way (mm) | 7.00mm |
| Shank Type | Arbor |
| Rake Radial Angle (Degree) | -15 Degree |
| Rake Orthogonal Angle (Degree) | -15 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Number of Flute | 6 |

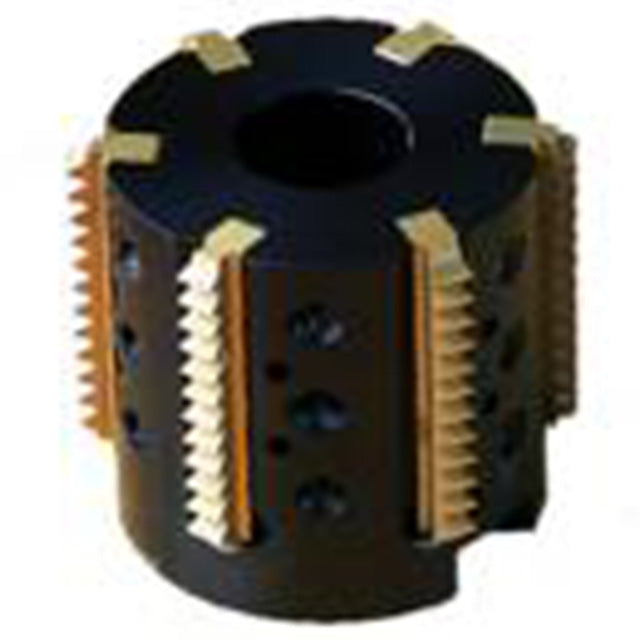

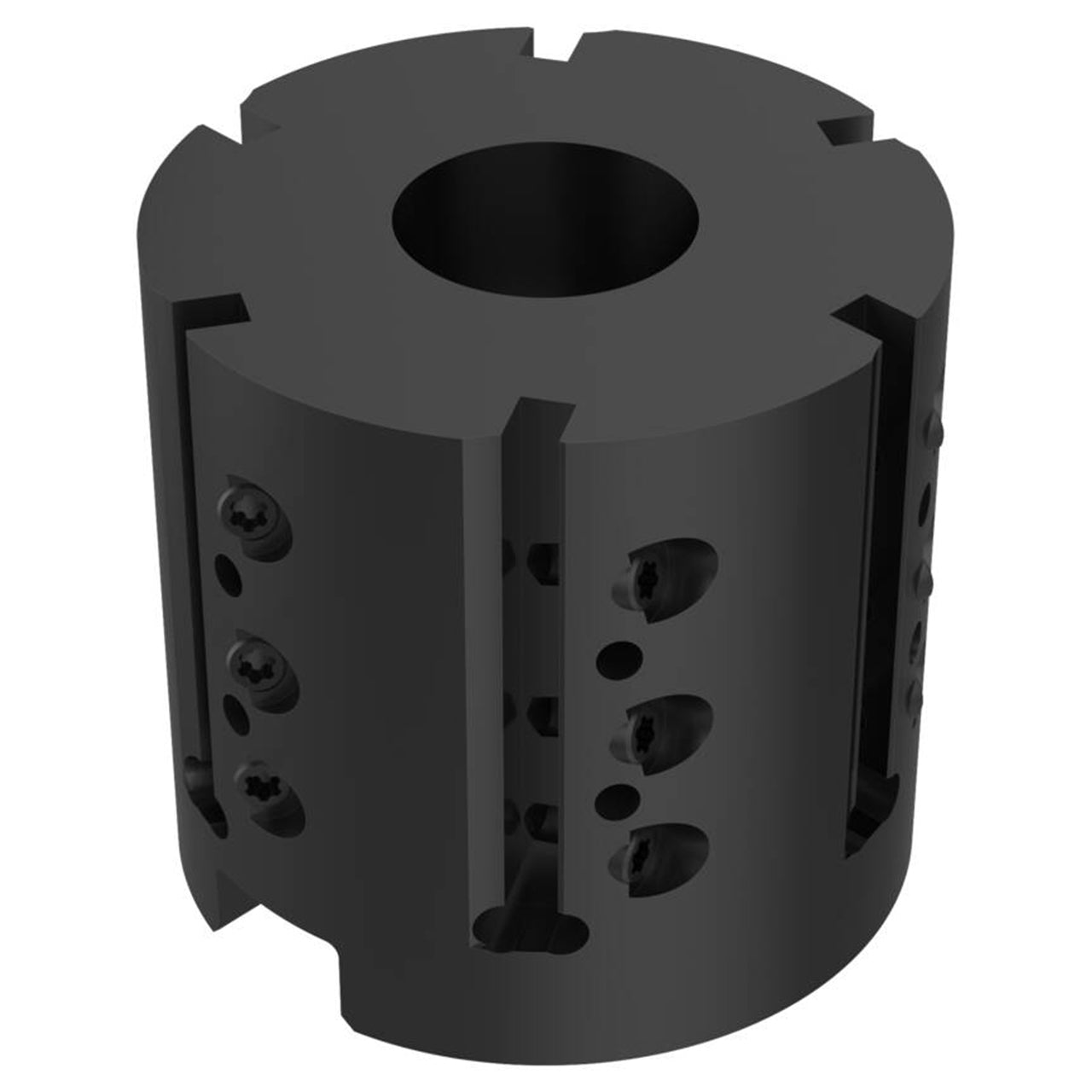

| Product Type | Indexable Thread Mill |
