Product Specifications
| Manufacturer Part Number | 02546915 |
| Cutting Diameter (mm) | 32.00mm |
| Connection Diameter Machine Side (mm) | 32.00mm |
| Contact Surface Diameter Machine Side (mm) | 50.00mm |
| Shank Diameter (mm) | 32.00mm |
| Body Diameter (mm) | 27.40mm |
| Shank Length (mm) | 60.00mm |
| Overall Length (mm) | 120.00mm |
| Protruding Length (mm) | 60.00mm |
| Maximum Depth of Cut (mm) | 40.00mm |
| Shank Type | Seco Weldon |
| Rake Radial Angle (Degree) | -15 Degree |
| Rake Orthogonal Angle (Degree) | -15 Degree |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Number of Flute | 6 |

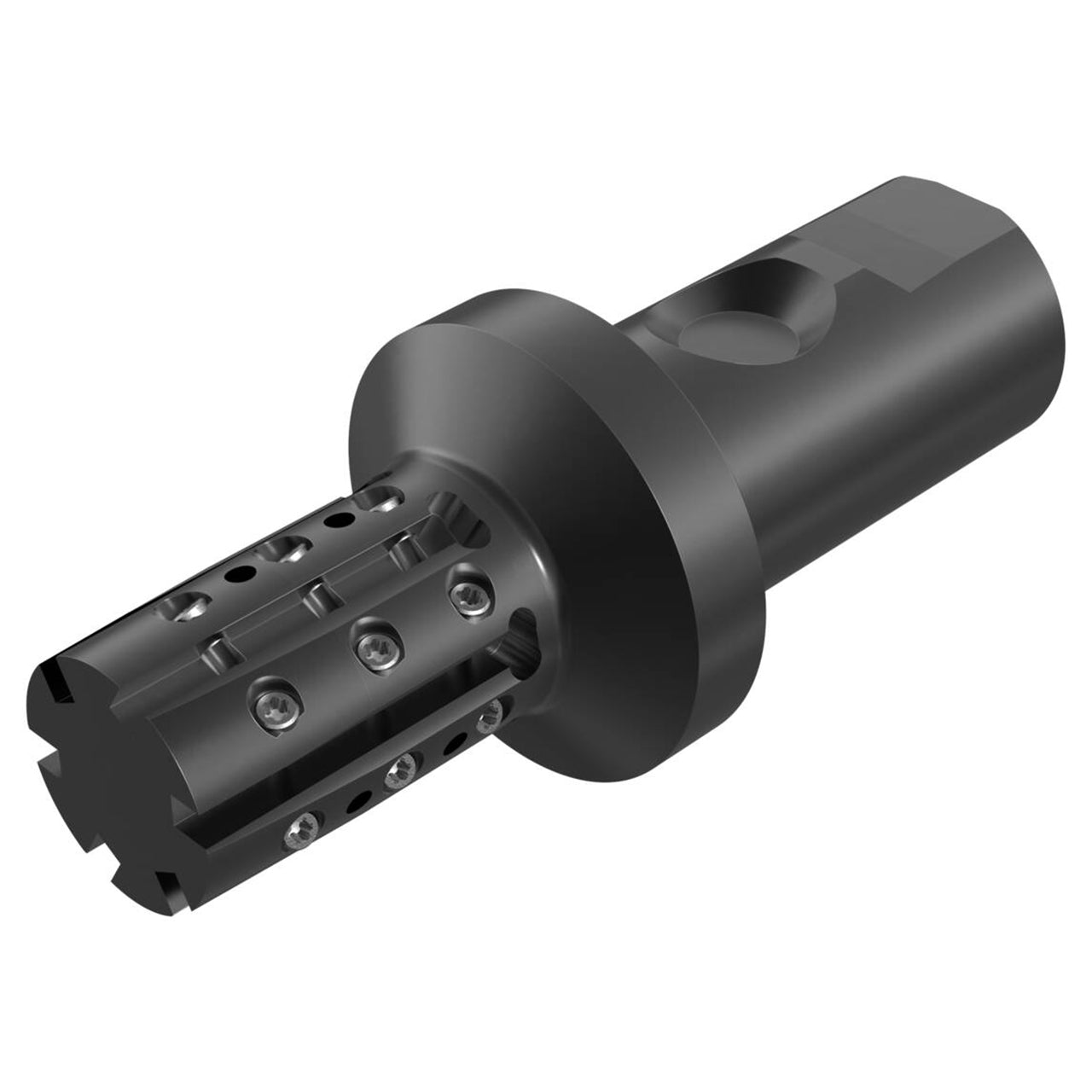

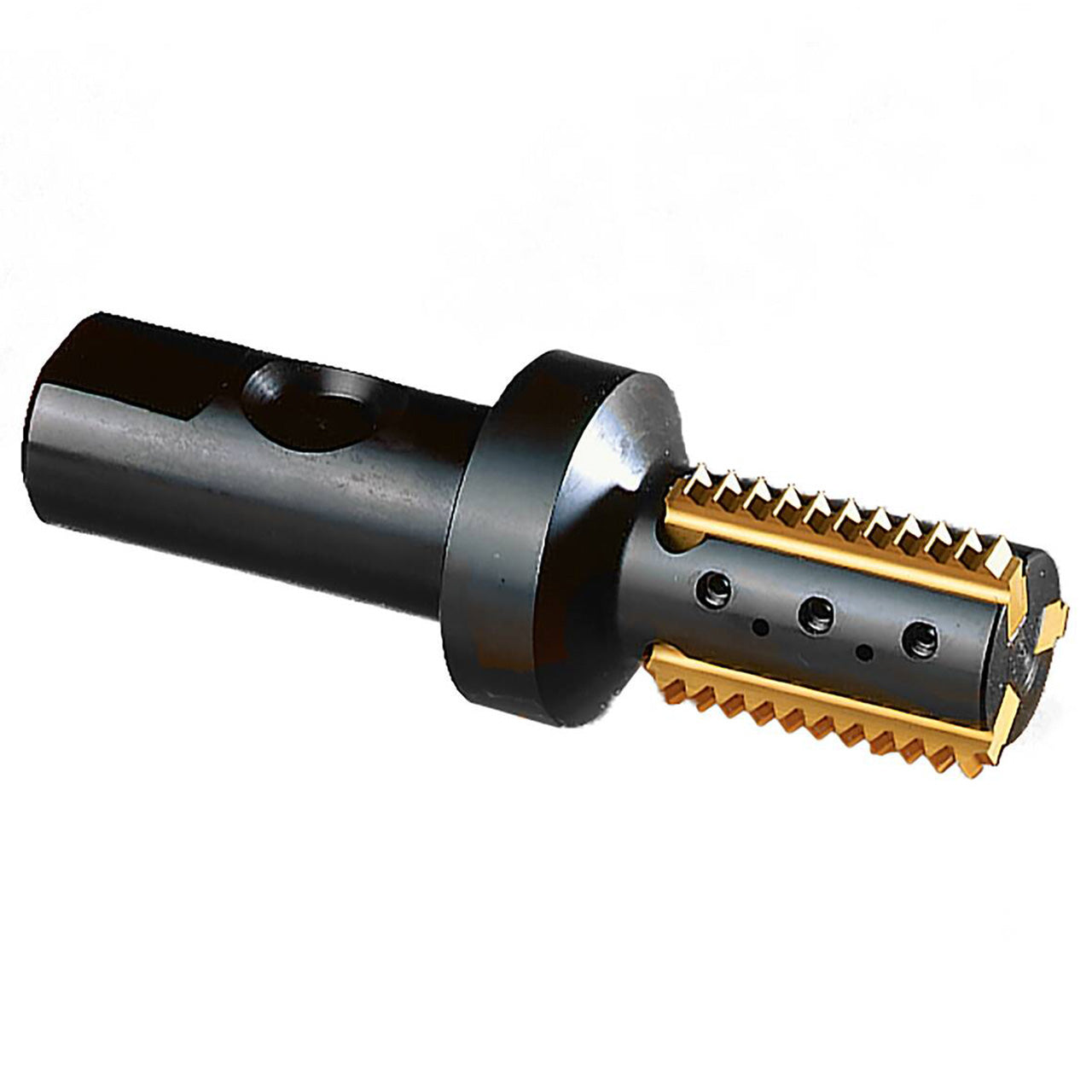

| Product Type | Indexable Thread Mill |
