Product Specifications
| Manufacturer Part Number | 02546816 |
| Fixing Hole Diameter (Decimal Inch) | 0.114" |
| Fixing Hole Diameter (mm) | 2.90mm |

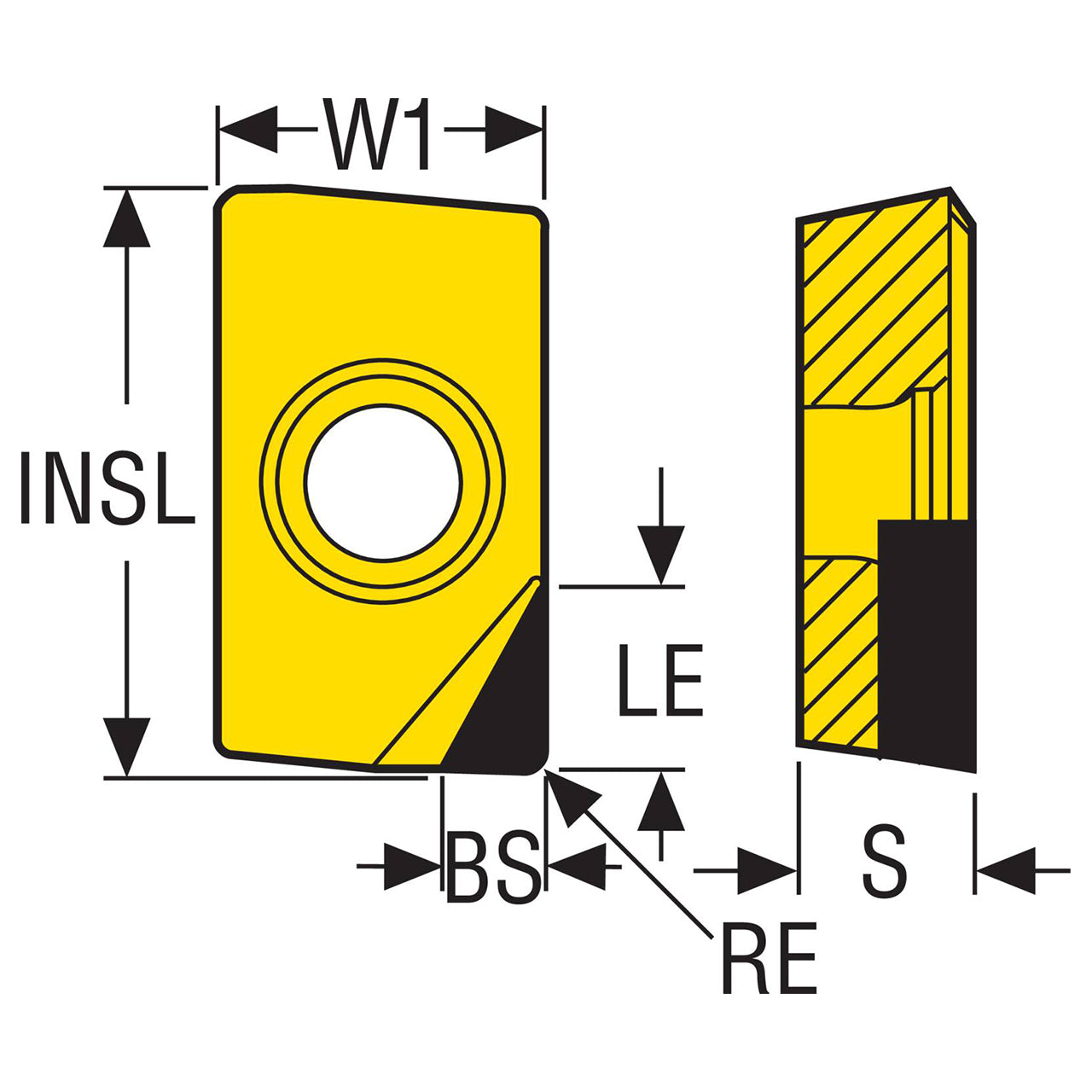

| Insert Length (Decimal Inch) | 0.423" |
| Insert Length (mm) | 10.75mm |
| Wiper Edge Length (Decimal Inch) | 0.043" |
| Wiper Edge Length (mm) | 1.08mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.177" |
| Cutting Edge Effective Length (mm) | 4.50mm |
| Corner Radius (Decimal Inch) | 0.016" |
| Corner Radius (mm) | 0.40mm |
| Insert Thickness (Decimal Inch) | 0.144" |
| Insert Thickness (mm) | 3.65mm |
| Clearance Angle Major (Degree) | 15 Degree |
| Cutting Edge Condition Code | F |
| Cutting Edge Count | 1 |
| Pocket Seat Code of The Cutter | XO.X0903 |
| Insert Size And Shape | XOEX0903 |
| Insert Included Angle (Degree) | 90 Degree |
| Insert Rake Angle (Degree) | 8 Degree |
| Insert Hand | Right Hand |
| Material | PCD |

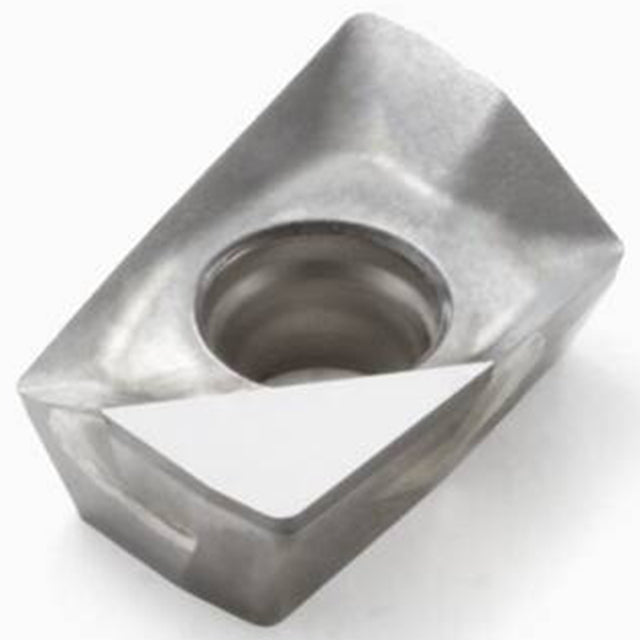

| Product Type | Square Shoulder Milling Insert |
