Product Specifications
| Manufacturer Part Number | 02532955 |
| Body Diameter (Decimal Inch) | 2.480" |
| Body Diameter (mm) | 63.00mm |
| Connection Bore Diameter (Decimal Inch) | 1.417" |
| Connection Bore Diameter (mm) | 36.00mm |
| Body Length (Decimal Inch) | 0.866" |
| Body Length (mm) | 22.00mm |
| Functional Length (Decimal Inch) | 2.165" |
| Functional Length (mm) | 55.00mm |
| Overall Length (Decimal Inch) | 4.055" |
| Overall Length (mm) | 103.00mm |
| Data Chip Provision | 1 |

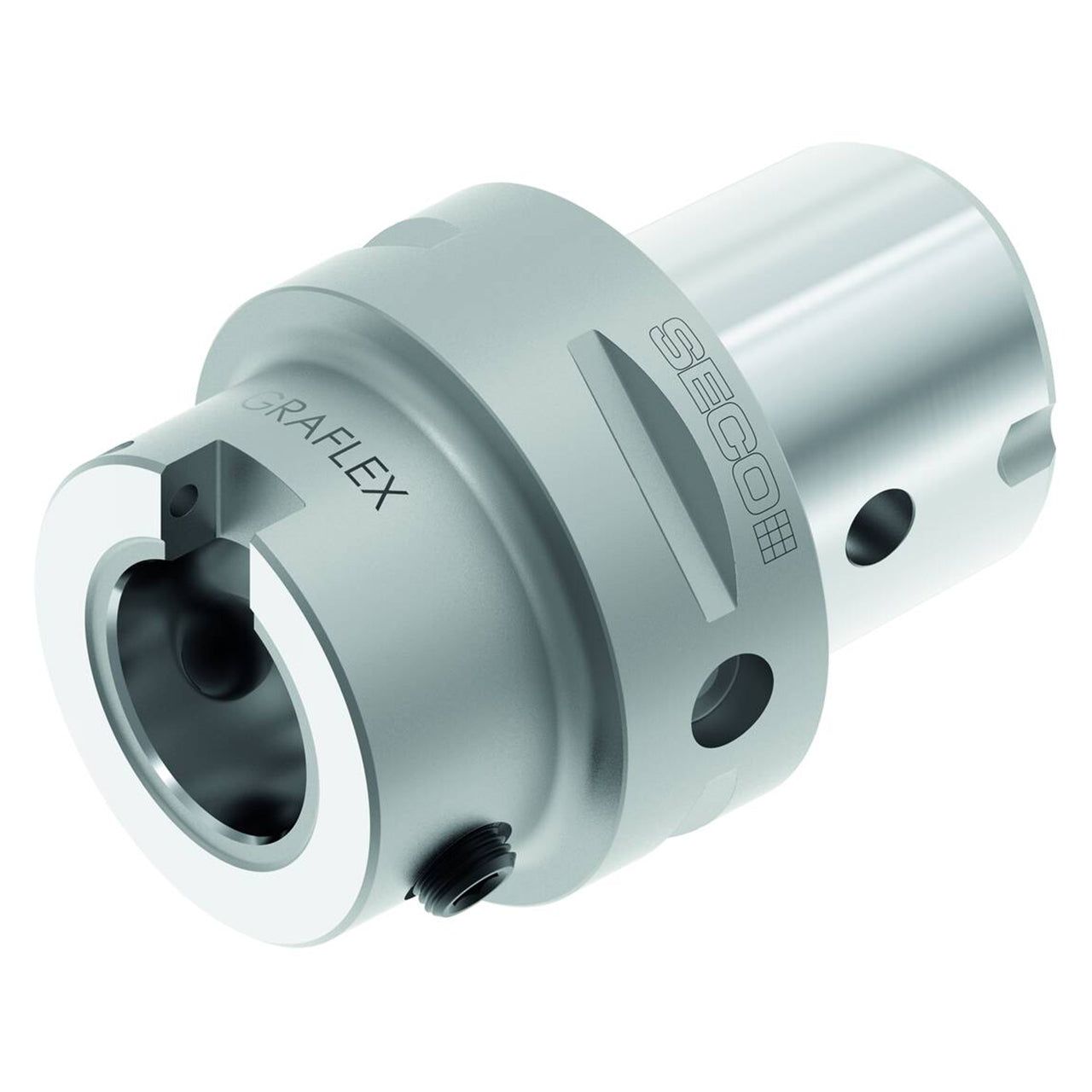

| Product Type | Modular Tool Holding System Adapter |
