Product Specifications
| Manufacturer Part Number | 02532938 |
| Body Diameter (Decimal Inch) | 1.181" |
| Body Diameter (mm) | 30.00mm |
| Body Diameter 1 (Decimal Inch) | 1.248" |
| Body Diameter 1 (mm) | 31.70mm |
| Body Diameter 2 (Decimal Inch) | 1.673" |
| Body Diameter 2 (mm) | 42.50mm |
| Body Length (Decimal Inch) | 2.047" |
| Body Length (mm) | 52.00mm |
| Body Length 1 (Decimal Inch) | 0.787" |
| Body Length 1 (mm) | 20.00mm |
| Body Length 2 (Decimal Inch) | 1.969" |
| Body Length 2 (mm) | 50.00mm |
| Body Length 3 (Decimal Inch) | 2.047" |
| Body Length 3 (mm) | 52.00mm |
| Functional Length (Decimal Inch) | 3.347" |
| Functional Length (mm) | 85.00mm |
| Protruding Length (Decimal Inch) | 3.347" |
| Protruding Length (mm) | 85.00mm |
| Overall Length (Decimal Inch) | 5.236" |
| Overall Length (mm) | 133.00mm |
| Body Half Taper Angle Degree) | 10.2 Degree |
| Data Chip Provision | 1 |

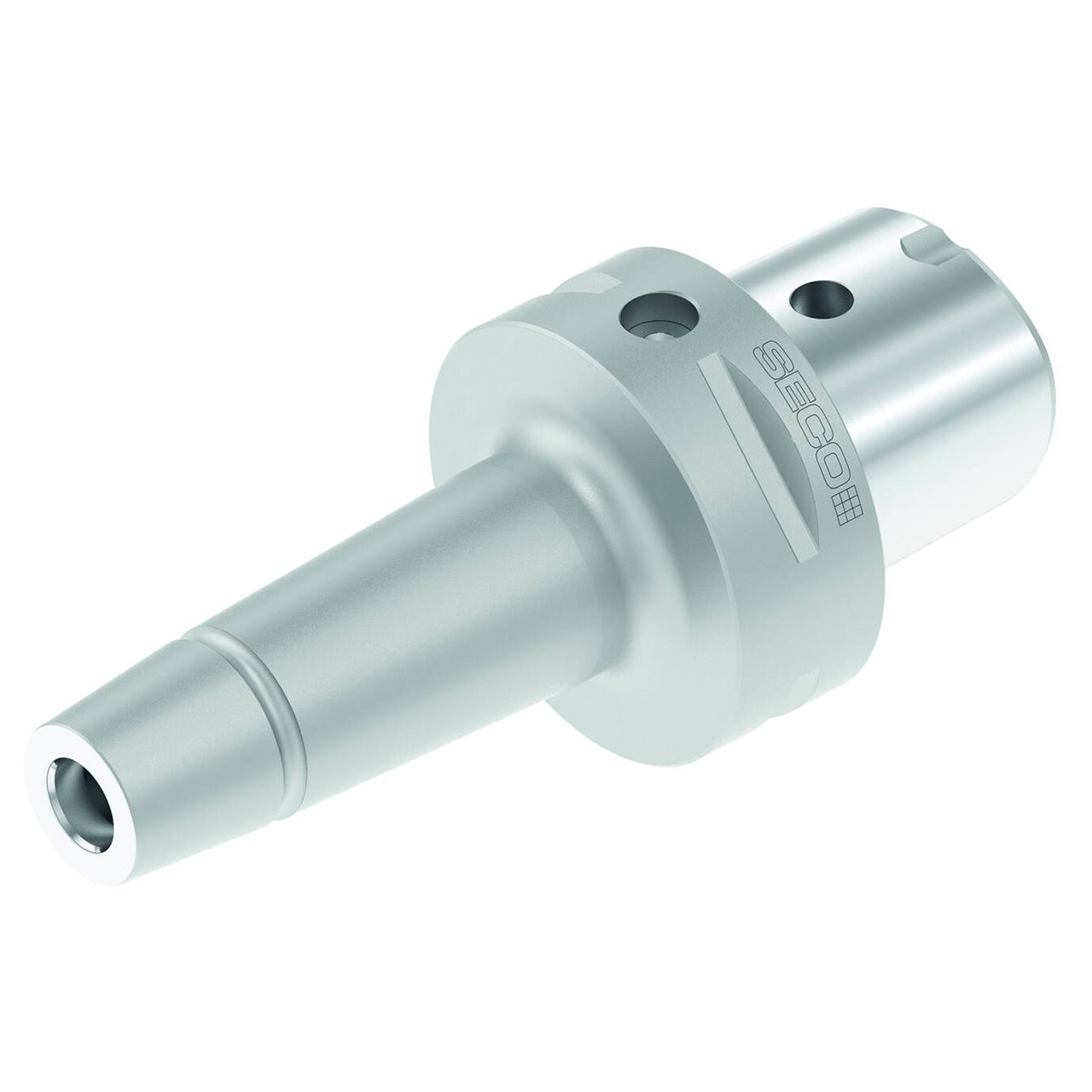

| Product Type | End Mill Adapter |
