Product Specifications
| Manufacturer Part Number | 02532918 |
| Body Diameter (Decimal Inch) | 0.532" |
| Body Diameter (mm) | 13.50mm |
| Body Diameter 1 (Decimal Inch) | 0.618" |
| Body Diameter 1 (mm) | 15.70mm |
| Body Diameter 2 (Decimal Inch) | 0.728" |
| Body Diameter 2 (mm) | 18.50mm |
| Body Length (Decimal Inch) | 1.063" |
| Body Length (mm) | 27.00mm |
| Body Length 1 (Decimal Inch) | 0.394" |
| Body Length 1 (mm) | 10.00mm |
| Body Length 2 (Decimal Inch) | 0.984" |
| Body Length 2 (mm) | 25.00mm |
| Body Length 3 (Decimal Inch) | 1.063" |
| Body Length 3 (mm) | 27.00mm |
| Functional Length (Decimal Inch) | 1.969" |
| Functional Length (mm) | 50.00mm |
| Protruding Length (Decimal Inch) | 1.969" |
| Protruding Length (mm) | 50.00mm |
| Overall Length (Decimal Inch) | 3.150" |
| Overall Length (mm) | 80.00mm |
| Body Half Taper Angle Degree) | 5.3 Degree |
| Data Chip Provision | 1 |

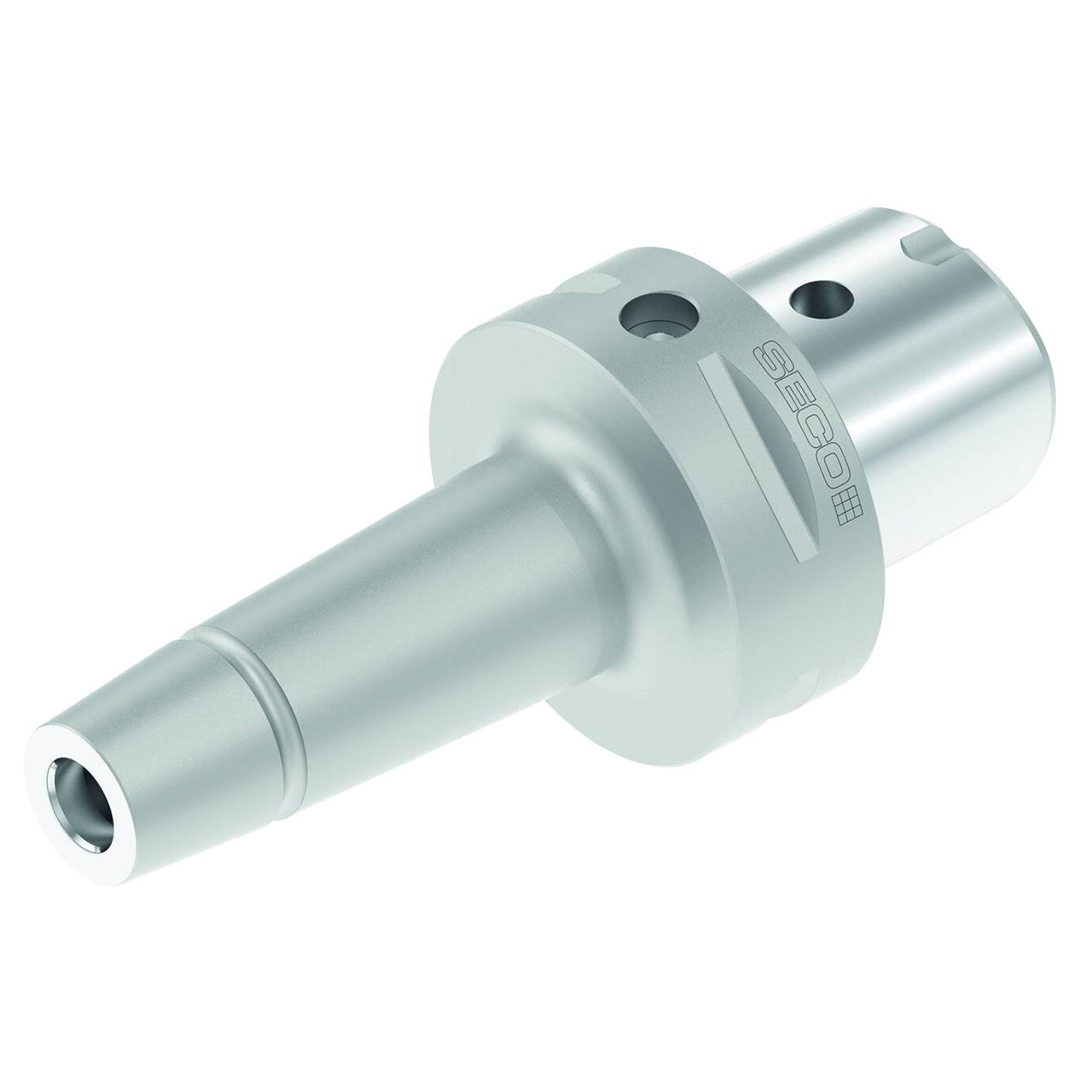

| Product Type | End Mill Adapter |
