Product Specifications
| Manufacturer Part Number | 02529095 |
| Minimum Cutting Diameter (Decimal Inch) | 0.787" |
| Minimum Cutting Diameter (mm) | 20.00mm |
| Connection Diameter Machine Side (Decimal Inch) | 1.000" |
| Connection Diameter Machine Side (mm) | 25.40mm |
| Maximum Cutting Diameter (Decimal Inch) | 0.866" |
| Maximum Cutting Diameter (mm) | 21.99mm |
| Flange Diameter (Decimal Inch) | 1.221" |
| Flange Diameter (mm) | 31.00mm |
| Shank Diameter (Decimal Inch) | 1.000" |
| Shank Diameter (mm) | 25.40mm |
| Body Diameter (Decimal Inch) | 0.768" |
| Body Diameter (mm) | 19.50mm |
| Shank Length (Decimal Inch) | 2.205" |
| Shank Length (mm) | 56.00mm |
| Usable Length (Decimal Inch) | 6.890" |
| Usable Length (mm) | 175.00mm |
| Overall Length (Decimal Inch) | 10.413" |
| Overall Length (mm) | 264.50mm |
| Coolant Entry Style Code | 4 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 4 |

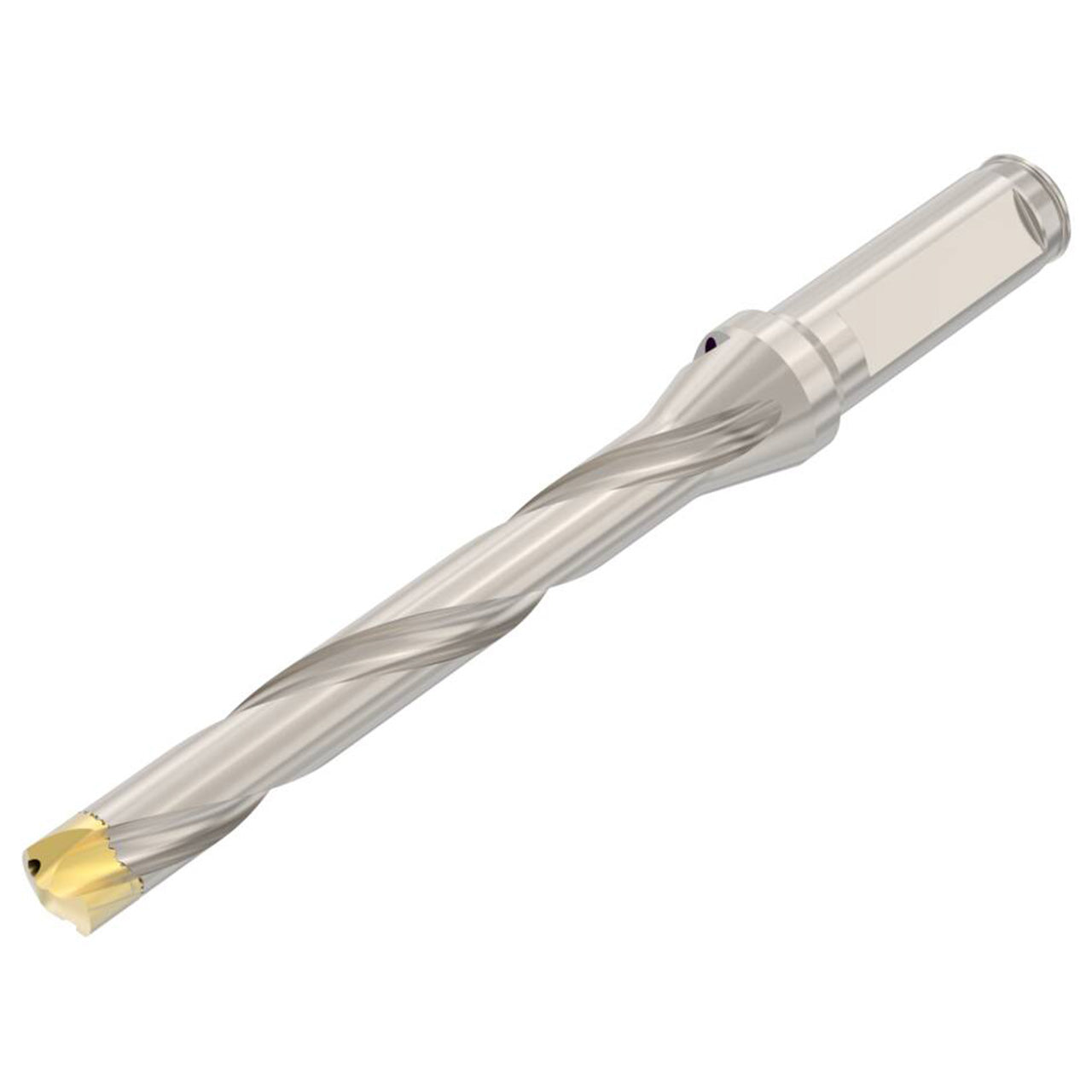

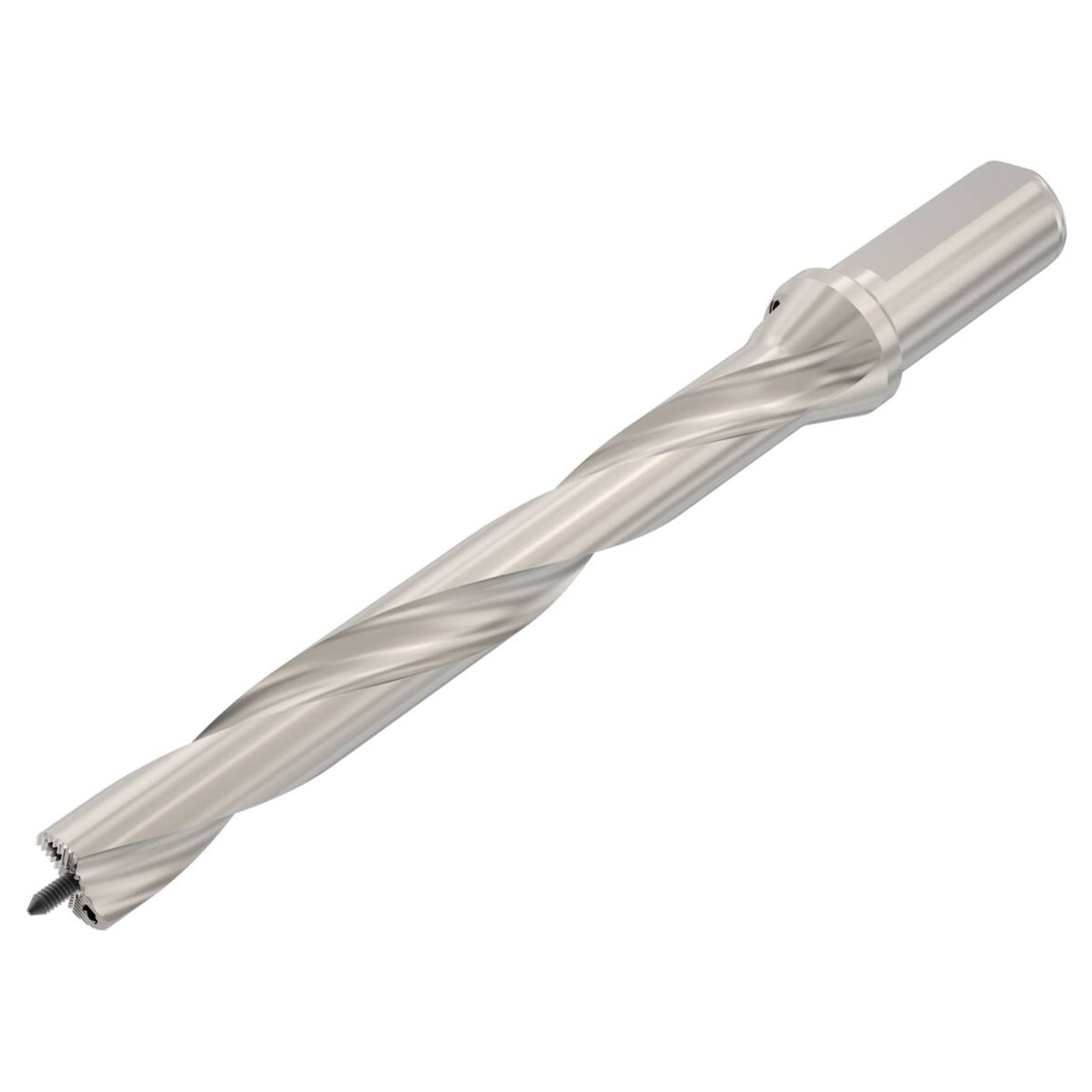

| Product Type | Replaceable-Tip Drill |
