Product Specifications
| Manufacturer Part Number | 02527210 |
| Body Diameter (Decimal Inch) | 2.480" |
| Body Diameter (mm) | 63.00mm |
| Connection Bore Diameter (Decimal Inch) | 1.250" |
| Connection Bore Diameter (mm) | 31.75mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 1.250" |
| Minimum Connection Bore Diameter (mm) | 31.75mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 1.250" |
| Maximum Connection Bore Diameter (mm) | 31.75mm |
| Body Length (Decimal Inch) | 2.090" |
| Body Length (mm) | 53.09mm |
| Functional Length (Decimal Inch) | 2.210" |
| Functional Length (mm) | 56.13mm |
| Minimum Functional Length (Decimal Inch) | 2.210" |
| Functional Length Secondary (Decimal Inch) | 2.205" |
| Functional Length Secondary (mm) | 56.00mm |
| Protruding Length (Decimal Inch) | 3.150" |
| Protruding Length (mm) | 80.01mm |
| Clamping Length (Decimal Inch) | 2.284" |
| Clamping Length (mm) | 58.01mm |
| Overall Length (Decimal Inch) | 5.040" |
| Overall Length (mm) | 128.01mm |
| Body Half Taper Angle Degree) | 60 Degree |

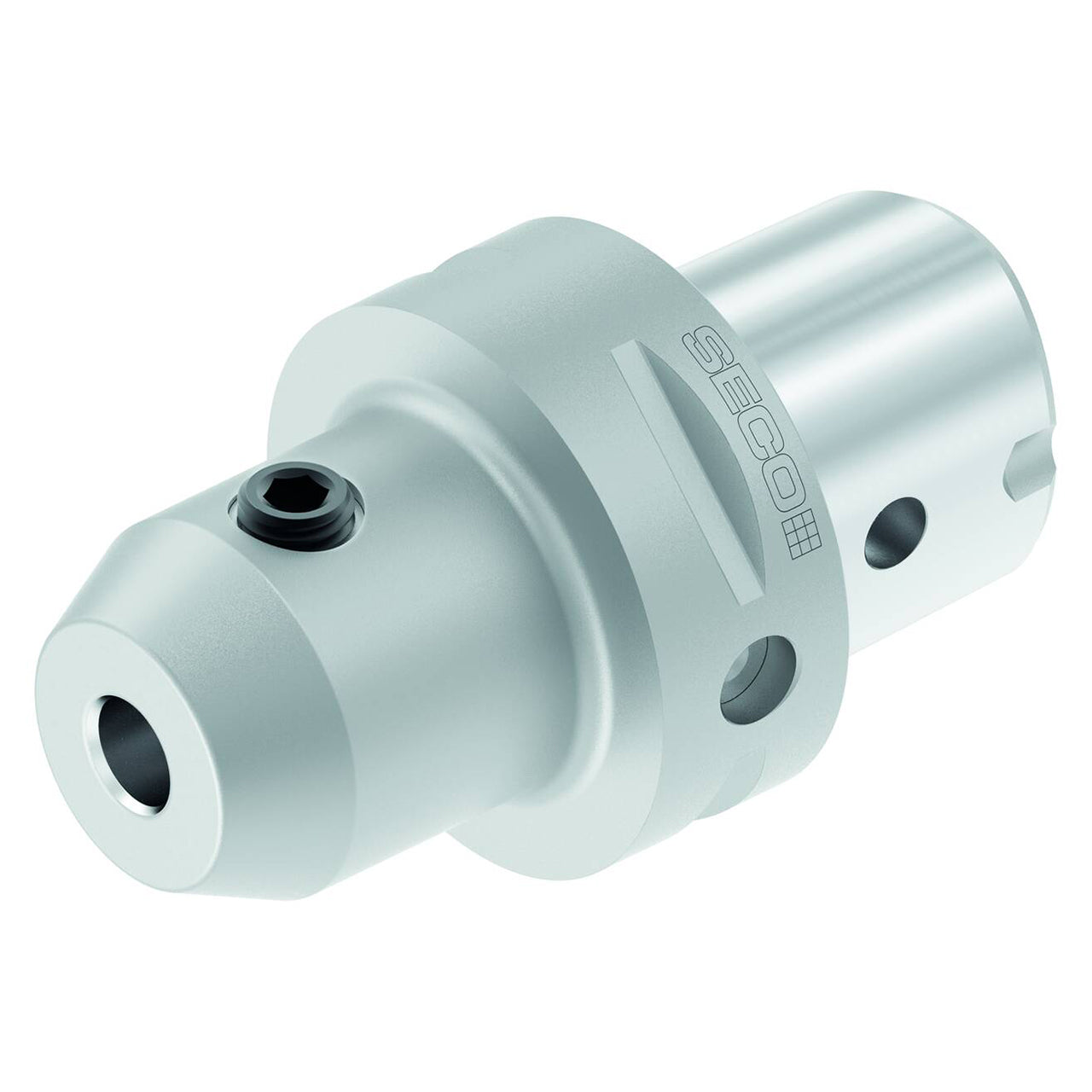

| Product Type | End Mill Holder |
