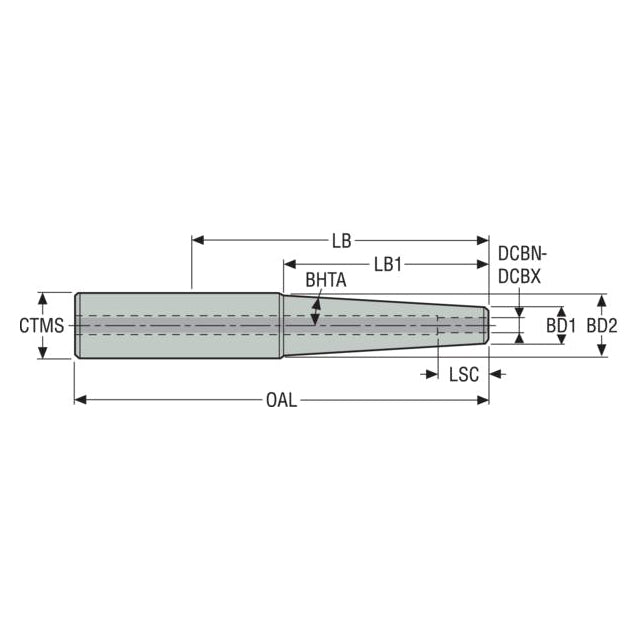

Product Specifications
| Manufacturer Part Number | 02522851 |
| Body Diameter 1 (Decimal Inch) | 0.433" |
| Body Diameter 1 (mm) | 11.00mm |
| Body Diameter 2 (Decimal Inch) | 0.625" |
| Body Diameter 2 (mm) | 15.88mm |
| Connection Bore Diameter (Decimal Inch) | 0.188" |
| Connection Bore Diameter (mm) | 4.76mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.188" |
| Minimum Connection Bore Diameter (mm) | 4.76mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.188" |
| Maximum Connection Bore Diameter (mm) | 4.76mm |
| Body Length (Decimal Inch) | 4.000" |
| Body Length (mm) | 101.60mm |
| Body Length 1 (Decimal Inch) | 1.831" |
| Body Length 1 (mm) | 46.51mm |
| Body Length 2 (Decimal Inch) | 2.019" |
| Body Length 2 (mm) | 51.28mm |
| Functional Length (Decimal Inch) | 3.291" |
| Functional Length (mm) | 83.60mm |
| Minimum Functional Length (Decimal Inch) | 3.232" |
| Protruding Length (Decimal Inch) | 4.000" |
| Protruding Length (mm) | 101.60mm |
| Clamping Length (Decimal Inch) | 0.709" |
| Clamping Length (mm) | 18.00mm |
| Overall Length (Decimal Inch) | 5.875" |
| Overall Length (mm) | 149.23mm |
| Body Half Taper Angle Degree) | 3 Degree |

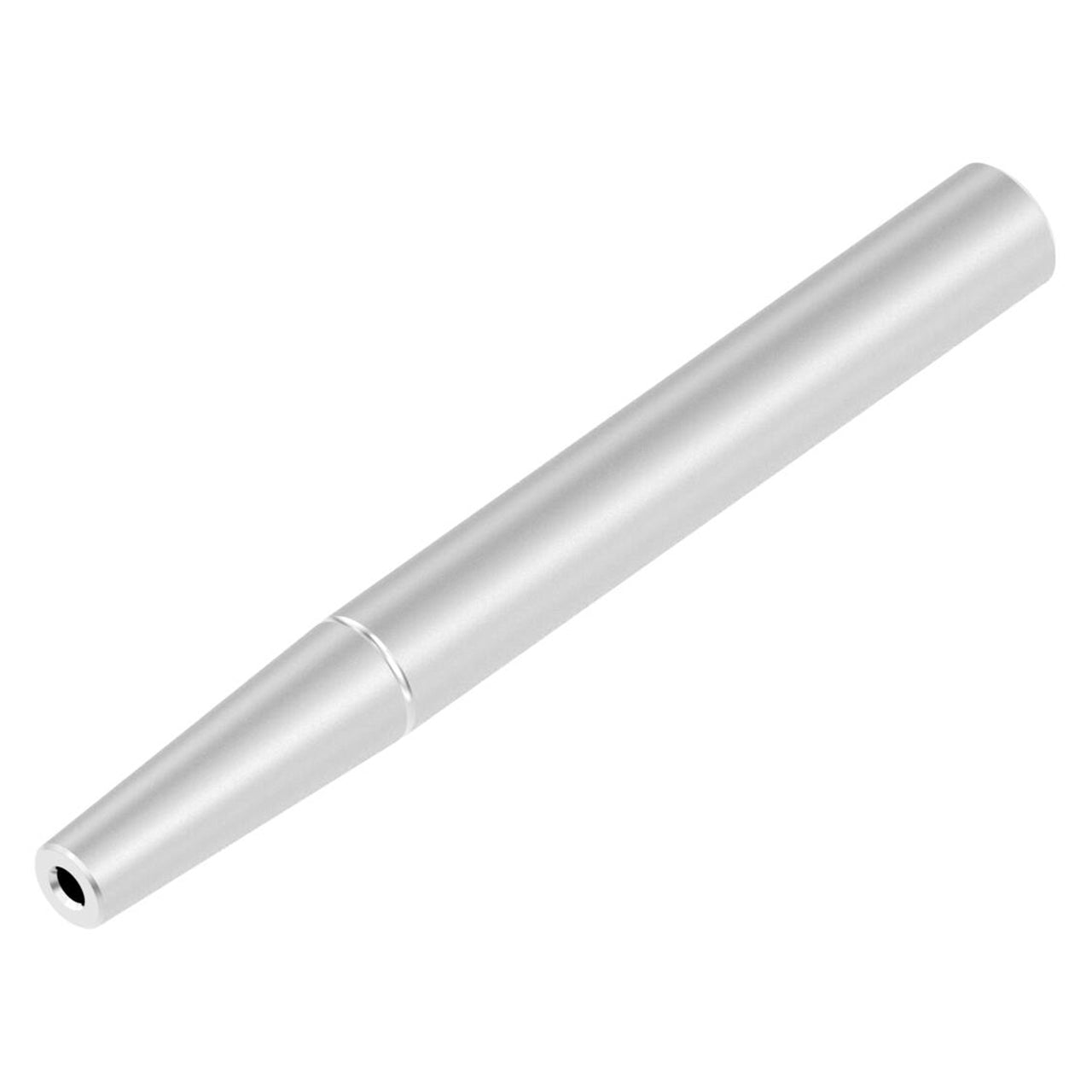

| Product Type | Shrink-Fit Tool Holder |
