Product Specifications
| Manufacturer Part Number | 02511873 |
| Minimum Cutting Diameter Internal (Decimal Inch) | 0.315" |
| Minimum Cutting Diameter Internal (mm) | 8.00mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.625" |
| Connection Diameter Machine Side (mm) | 15.88mm |
| Shank Diameter (Decimal Inch) | 0.625" |
| Shank Diameter (mm) | 15.88mm |
| Head Length (Decimal Inch) | 0.650" |
| Head Length (mm) | 16.50mm |
| Overall Length (Decimal Inch) | 3.406" |
| Overall Length (mm) | 86.50mm |
| Maximum Cutting Depth (Decimal Inch) | 393.661" |
| Maximum Cutting Depth (mm) | 9999.00mm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Cutting Direction | Neutral |
| Coolant Supply Property | 1 |
| Shank Type | Cylindrical |

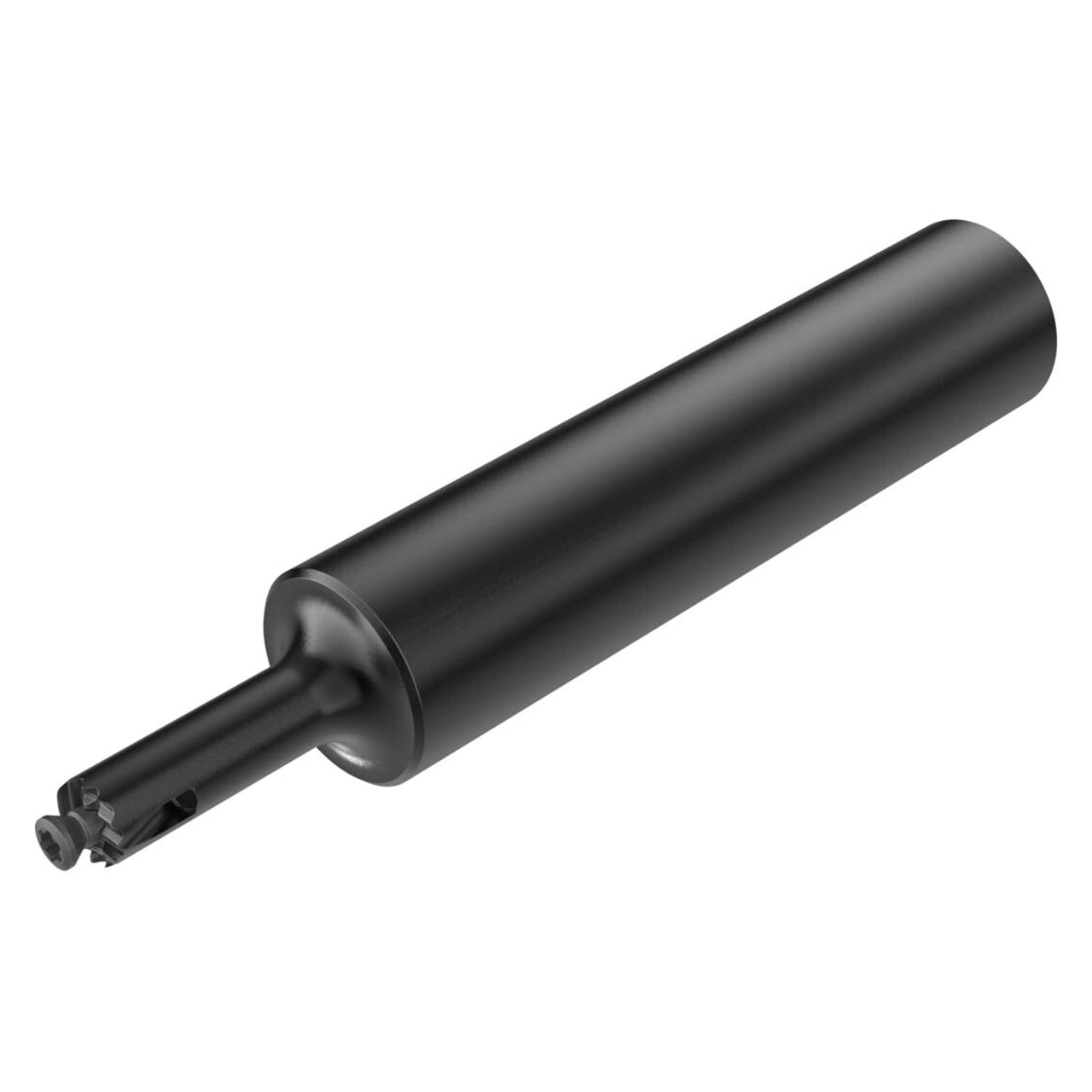

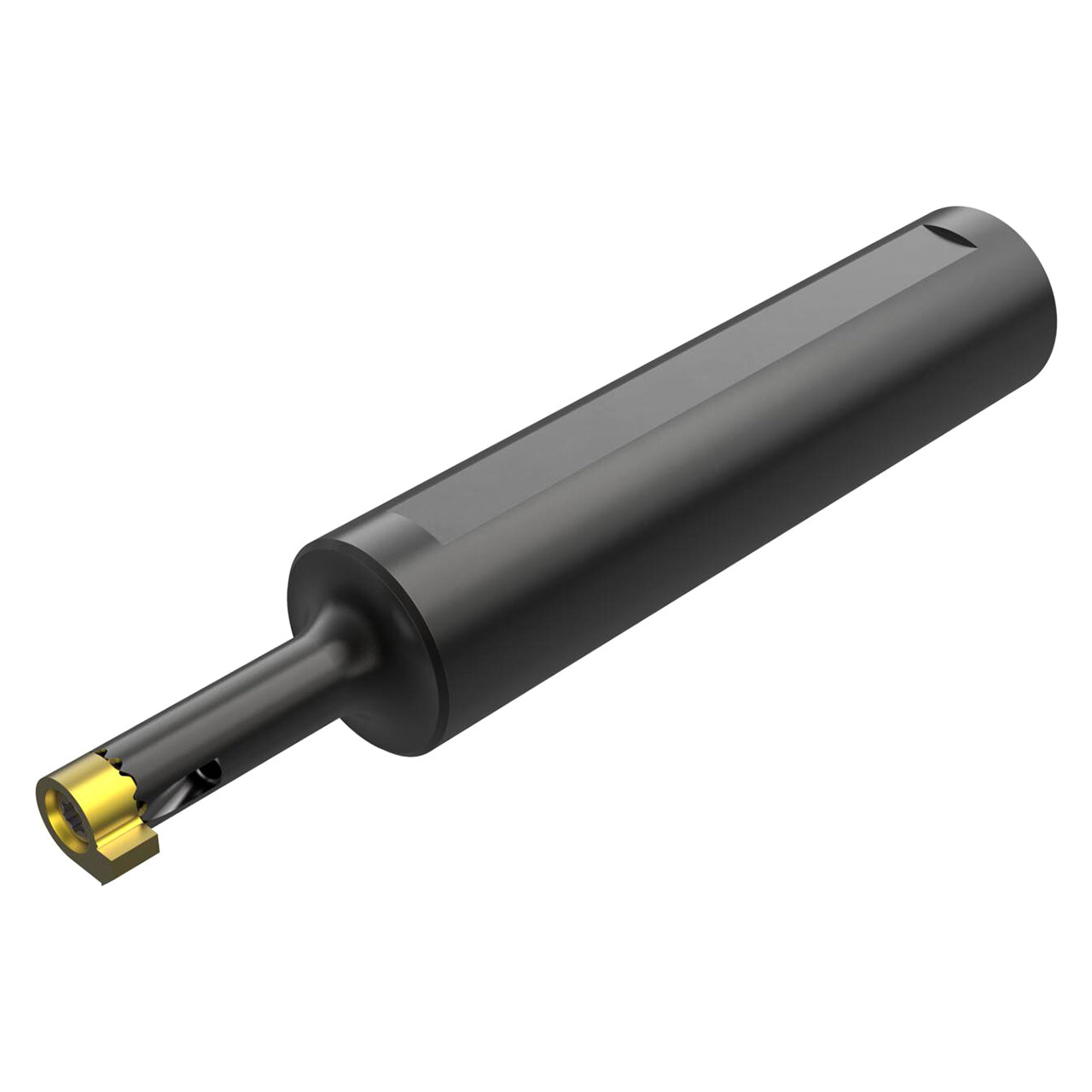

| Product Type | Indexable Boring Bar |
