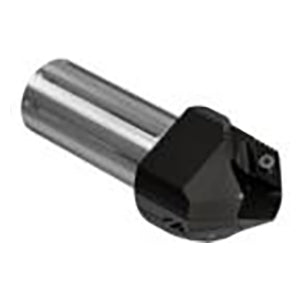

Product Specifications
| Manufacturer Part Number | 02510293 |
| Minimum Cutting Diameter (Decimal Inch) | 0.473" |
| Minimum Cutting Diameter (mm) | 12.01mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.750" |
| Connection Diameter Machine Side (mm) | 19.05mm |
| Maximum Cutting Diameter (Decimal Inch) | 0.551" |
| Maximum Cutting Diameter (mm) | 14.00mm |
| Flange Diameter (Decimal Inch) | 1.181" |
| Shank Diameter (Decimal Inch) | 0.750" |
| Shank Diameter (mm) | 19.05mm |
| Maximum Cutting Depth (Decimal Inch) | 0.110" |
| Maximum Cutting Depth (mm) | 2.80mm |
| Body Length (Decimal Inch) | 0.984" |
| Body Length (mm) | 25.00mm |
| Shank Length (Decimal Inch) | 1.831" |
| Shank Length (mm) | 46.50mm |
| Tool Cutting Edge Angle (Degree) | 45 Degree |
| Product Type | Combination Chamfer & Countersink Drill |
